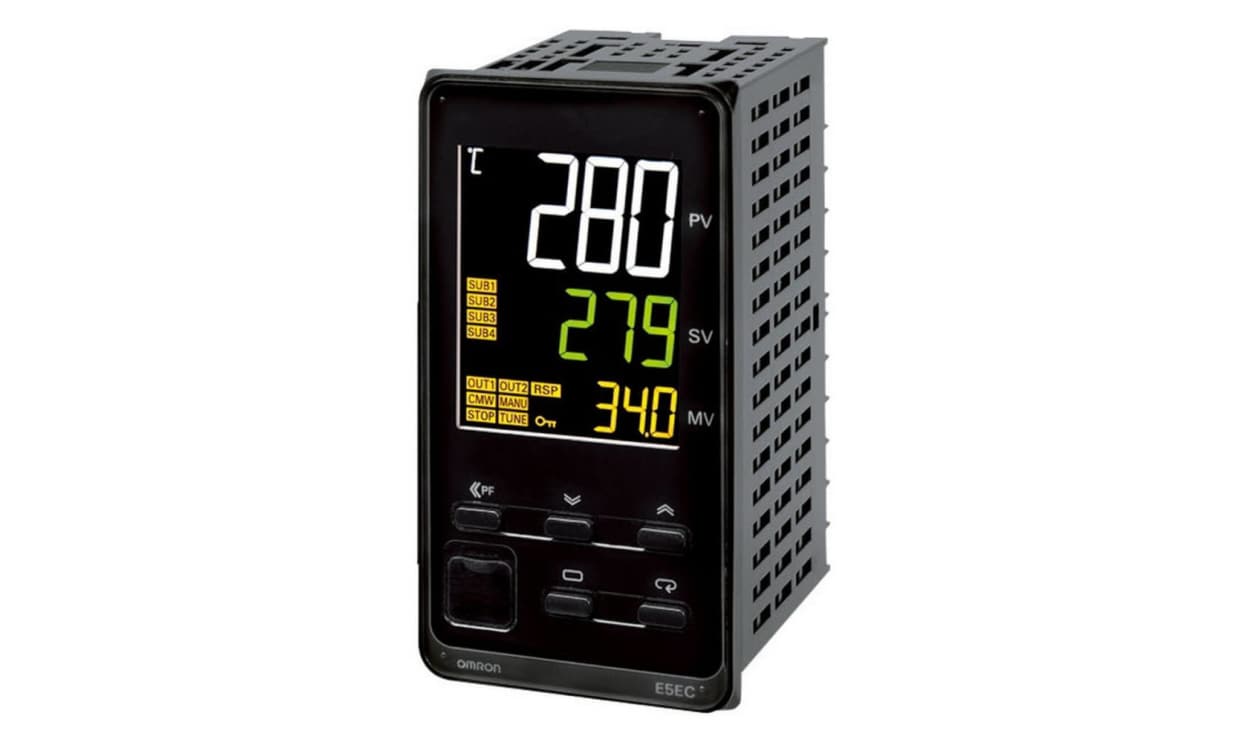

OMRON E5EC-RX4D5M-000 | PID Temperature Controller | 48 x 48 mm, Relay Output, 24 V AC/DC

Name: OMRON E5EC-RX4D5M-000 | PID Temperature Controller | 48 x 48 mm, Relay Output, 24 V AC/DC
Brand: OMRON
SKU: E5EC-RX4D5M-000
Availability: InStock

Part Number : E5EC-RX4D5M-000

This OMRON E5EC-RX4D5M-000 PID temperature controller (E5EC series) combines a 48 x 48 mm housing, four relay outputs and a 24 V AC/DC supply in a panel-mount unit; the universal input supports platinum RTD, Pt100, thermocouple and analogue sensors and signals.

Control modes: ON/OFF, PID, 2-PID
IP rating: IP00, IP20, IP66
Depth behind panel: 60 mm
Operating temperature: -10 °C to +55 °C
Terminals: screw terminal block

Availability: low stock

Detailed Description
Specifications
Downloads

Omron E5EC Series PID Temperature Controller, 48x96mm, IP66/IP20/IP00 - E5EC-RX4D5M-000

This PID temperature controller is designed for precise temperature management in various industrial applications. Its compact design and advanced control capabilities make it suitable for environments where reliable temperature regulation is essential. The universal input types allow compatibility with a range of temperature sensors, ensuring versatility across different settings.

Features & Benefits

• Operates on a dual 24V AC/DC supply for flexible integration
• Built to withstand harsh environments with an IP66 rating
• Panel mount installation simplifies setup and accessibility

Applications

• Suitable for use with universal temperature sensors across diverse
• Ideal for temperature control in manufacturing processes
• Utilised in HVAC systems for precise environmental management
• Employed in food processing equipment to ensure safety and quality

What types of sensors can be connected for input?

Various sensors can be employed, including Platinum Resistance Thermometers and thermocouples, enabling flexible measurement options for different applications.

How do I install this device in my setup?

Installation requires a panel mount setup, ensuring it fits securely within your control panel and provides easy access to the terminals for wiring.

Is it suitable for automating processes?

The device's PID control and multiple relay outputs make it suitable for automating temperature-sensitive processes across various industries.

Omron - E5GC, E5CC, E5EC, E5AC, E5DC, E5CN & E5CB Ranges

Brand	Omron
Output Type	Relay
Supply Voltage	24 V ac/dc
Size	48 x 48mm
Number of Outputs	4
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+55°C
Temperature Range	-10 → +55 °C
Control Type	ON/OFF, PID, 2-PID Controller
IP Rating	IP00, IP20, IP66
Series	E5EC
Input Type	Universal, Platinum Resistance Thermometer, PT100, Thermocouple, Analogue
Range	+10 → +70 °C, +115 → +165 °C, +140 → +260 °C, +60 → +120 °C
Mounting Type	Panel Mount
Panel Depth	60mm
Termination Type	Screw terminal block

OMRON E5EC-RX4D5M-000 | PID Temperature Controller | 48 x 48 mm, Relay Output, 24 V AC/DC

DOWNLOAD CATALOG

E5EC-RX4D5M-000 Manual - Digital Temperature Controllers A700000012779166

E5EC-RX4D5M-000 Brochure - Digital Temperature Controllers A700000012779242

E5EC-RX4D5M-000 Guide - E5CC E5EC Series A700000012779382

E5EC-RX4D5M-000 Instruction Sheet - E5EC-RX4D5M-000 A700000012781098
