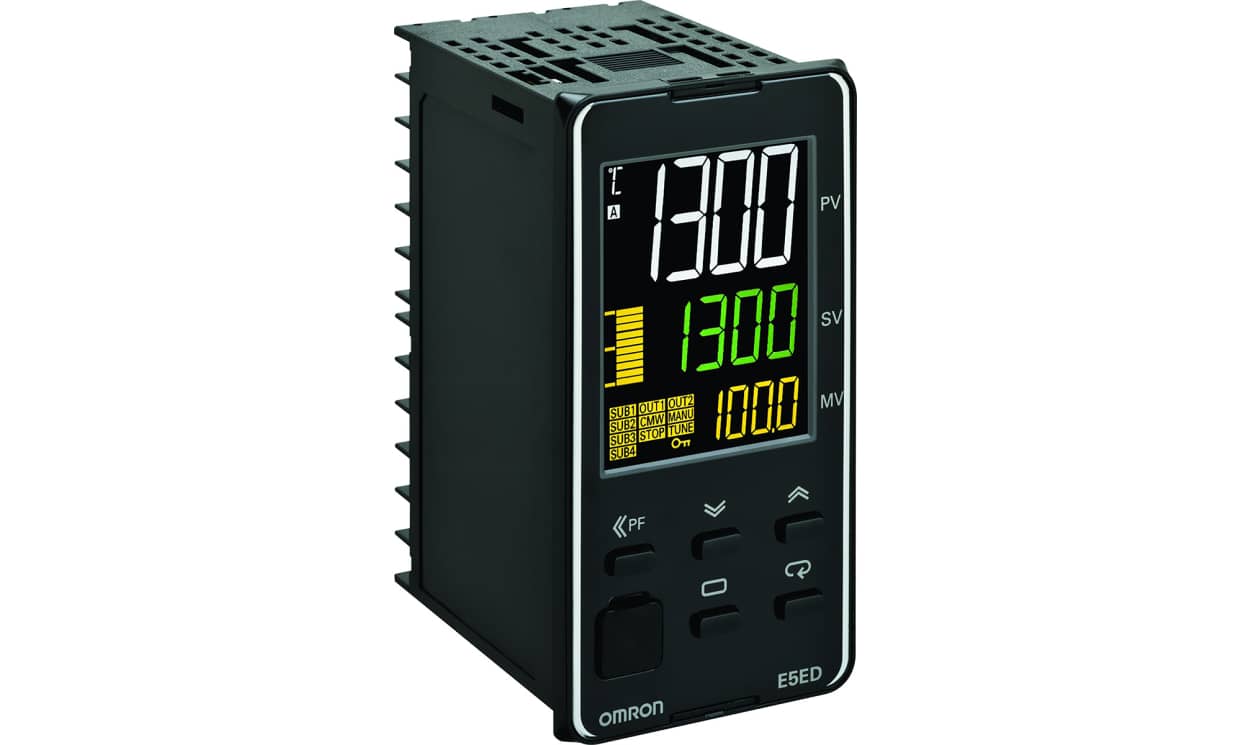

OMRON E5ED-QX4A6M-008 | PID Temperature Controller | 48 x 48 mm, SSR Output, 100-240 V AC

Name: OMRON E5ED-QX4A6M-008 | PID Temperature Controller | 48 x 48 mm, SSR Output, 100-240 V AC
Brand: OMRON
SKU: E5ED-QX4A6M-008
Availability: InStock

Part Number : E5ED-QX4A6M-008

The OMRON E5ED-QX4A6M-008 is a 48 x 48 mm panel-mount PID temperature controller from the E5ED series, fitted with two SSR/logic outputs and powered from 100 to 240 V AC; its universal input handles platinum RTD, Pt100, thermocouple and analogue.

Control modes: ON/OFF, PID, 2-PID
Inputs: 2
Protection: IP00, IP20, IP66
Display: 11-segment digital display
Panel depth: 62 mm
Operating temperature: -10 °C to +55 °C

Availability: low stock

Detailed Description
Specifications
Downloads

E5ED Digital Temperature Controllers

E5ED series digital PID temperature controllers optimise control by detecting status changes and satisfy both productivity and quality in various applications.

Features and Benefits

48 x 96 mm
4-digit, three-level displays PV, SV and MV displayed at the same time
Functions specialised for packaging machines
Functions specialised for water-cooled extruders
Indication data (power ON time, ambient temperature and output On/Off count)
Draw-out structure for easy maintenance

Omron - E5GC, E5CC, E5EC, E5AC, E5DC, E5CN & E5CB Ranges

Brand	Omron
Output Type	SSR, Solid State Relay, Logic
Supply Voltage	100 → 240 V ac
Size	48 x 48mm
Number of Inputs	2
Number of Outputs	2
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+55°C
Temperature Range	-10 → +55 °C
Control Type	ON/OFF, PID, 2-PID Controller
Communication Module Available	Yes
Display Type	11-Segment Digital Display
IP Rating	IP00, IP20, IP66
Series	E5ED
Input Type	Universal, Platinum Resistance Thermometer, PT100, Thermocouple, Analogue
Mounting Type	Panel Mount
Range	Omron E5ED
Panel Depth	62mm
Termination Type	Screw terminal block

OMRON E5ED-QX4A6M-008 | PID Temperature Controller | 48 x 48 mm, SSR Output, 100-240 V AC

DOWNLOAD CATALOG

E5ED-QX4A6M-008 Brochure 0900766b815bf6e0
