Omron E6B2-CWZ6C 600P/R 2M, E6B2-C Series Incremental Incremental Encoder, 600ppr ppr, NPN Open Collector Signal, Radial, Thrust Type, 6mm

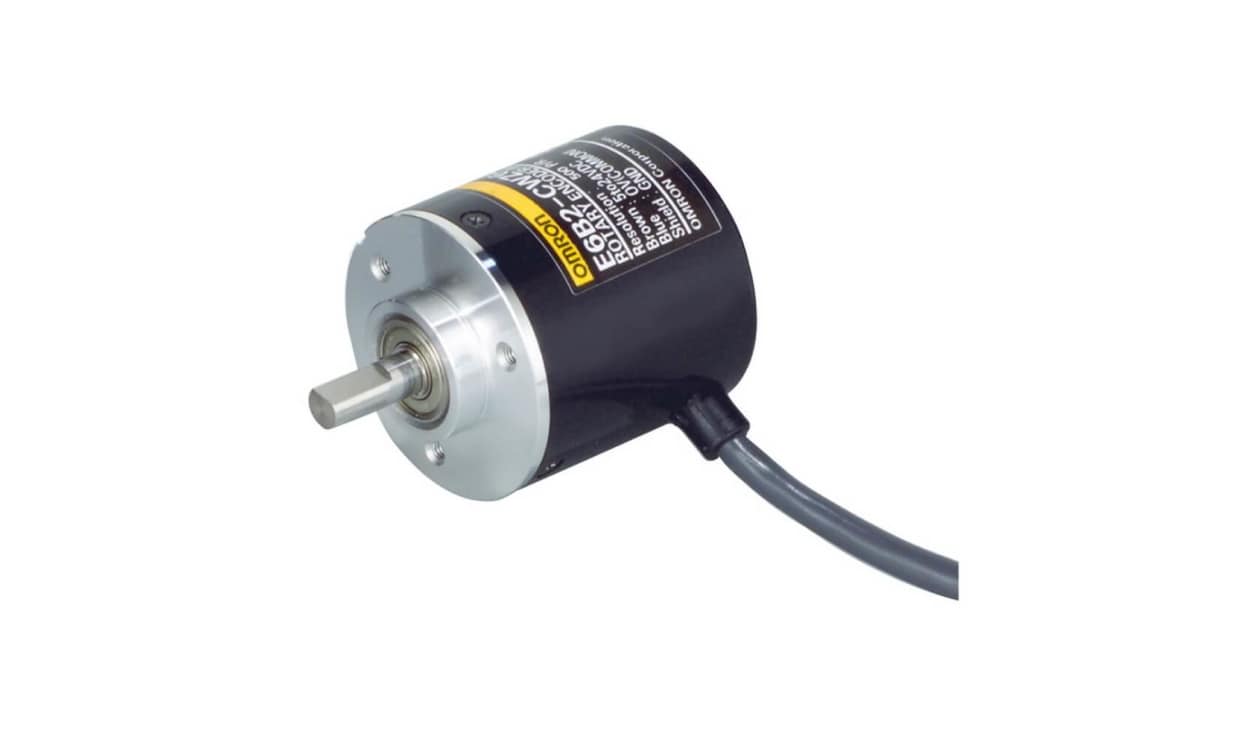

Name: Omron E6B2-CWZ6C 600P/R 2M, E6B2-C Series Incremental Incremental Encoder, 600ppr ppr, NPN Open Collector Signal, Radial, Thrust Type, 6mm
Brand: OMRON
SKU: E6B2-CWZ6C 600P/R 2M
Availability: InStock

Part Number : E6B2-CWZ6C 600P/R 2M

Encoder, incremental, 600ppr, 5-24VDC, 3-phase, NPN output

Availability: low stock

Detailed Description
Specifications
Features
Downloads

The Omron general purpose incremental rotary encoder with large shaft of 40 diameter has a wide operating voltage range from 5 to 24 VDC. A large load of 30 N in the radial direction and 20 N in the thrust direction are permitted. The load short-circuit and reversed connection protecting circuit assure high operation reliability.

Shock resistance strengthened by metal disk
Available with line driver output

Brand	Omron
Encoder Technology	Incremental
Series	E6B2-C
Pulses Per Revolution	600ppr
Maximum Revolutions	6000rpm
Output Signal Type	NPN Open Collector
Shaft Type	Radial, Thrust
Shaft Diameter	6mm
