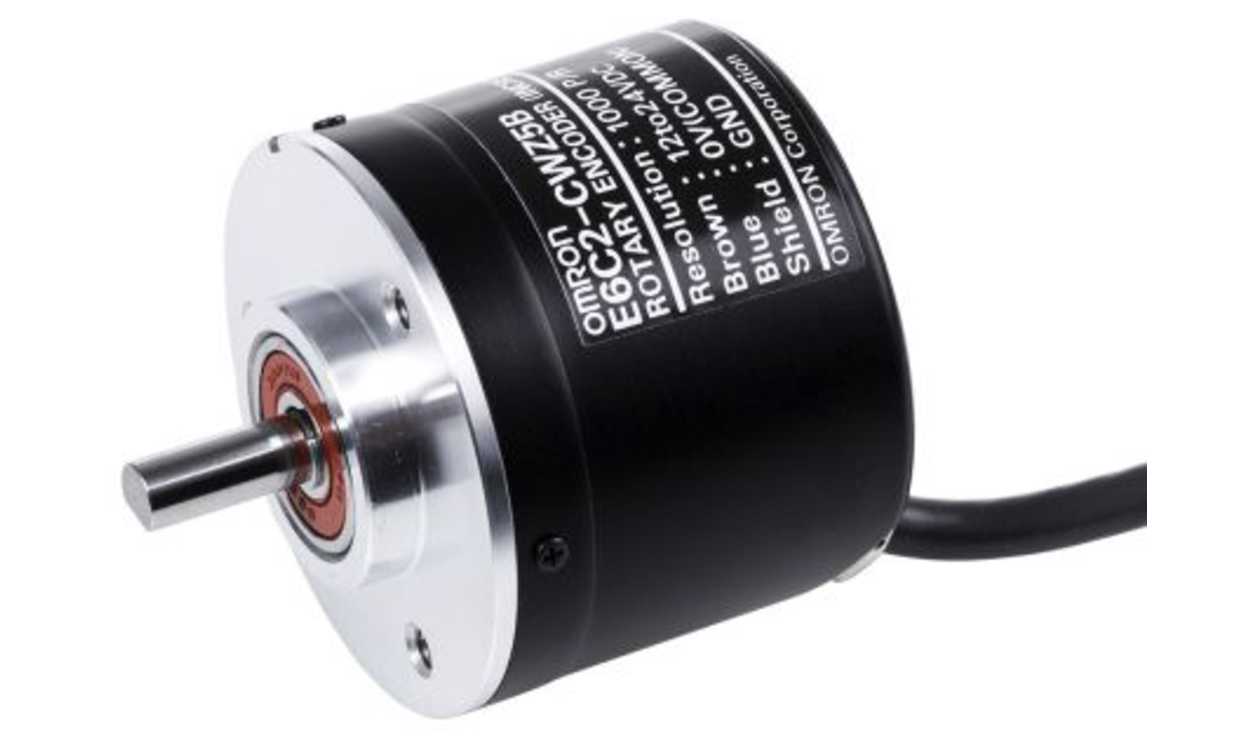

Omron E6C2-CWZ5B 2000P/R 2M, E6C2-C Series Incremental Incremental Encoder, 2000 ppr, PNP Open Collector Signal, Solid Type, 6mm Shaft

Name: Omron E6C2-CWZ5B 2000P/R 2M, E6C2-C Series Incremental Incremental Encoder, 2000 ppr, PNP Open Collector Signal, Solid Type, 6mm Shaft
Brand: OMRON
SKU: E6C2-CWZ5B 2000P/R 2M
Availability: InStock

Part Number : E6C2-CWZ5B 2000P/R 2M

Encoder, incremental, 2000ppr, 12-24 VDC, PNP output, 2m cable

Availability: low stock

Detailed Description
Specifications
Features
Downloads

E6C2 Series Incremental Encoders

Omron E6C2 series incremental encoders output a pulse string according to the rotational displacement of an axis. The number of rotations can be detected by counting the number of pulses. Improved reliability with reverse connection and load short circuit protection.

Features and Benefits

Incremental model

External diameter of 50 mm.

Resolution up to 2000 ppr.

IP64 Rated

Sealed bearings

Omron Incremental Rotary Encoders

Brand	Omron
Encoder Technology	Incremental
Pulses Per Revolution	2000
Series	E6C2-C
Maximum Revolutions	6000rpm
Output Signal Type	PNP Open Collector
Shaft Type	Solid
Supply Voltage	12 → 24 V dc
Shaft Diameter	6mm
IP Rating	IP64
Overall Height	60mm
Overall Width	50mm
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+70°C
Mounting Type	Clamping Flange
Switching Frequency	50 kHz
Current Rating	100 mA
