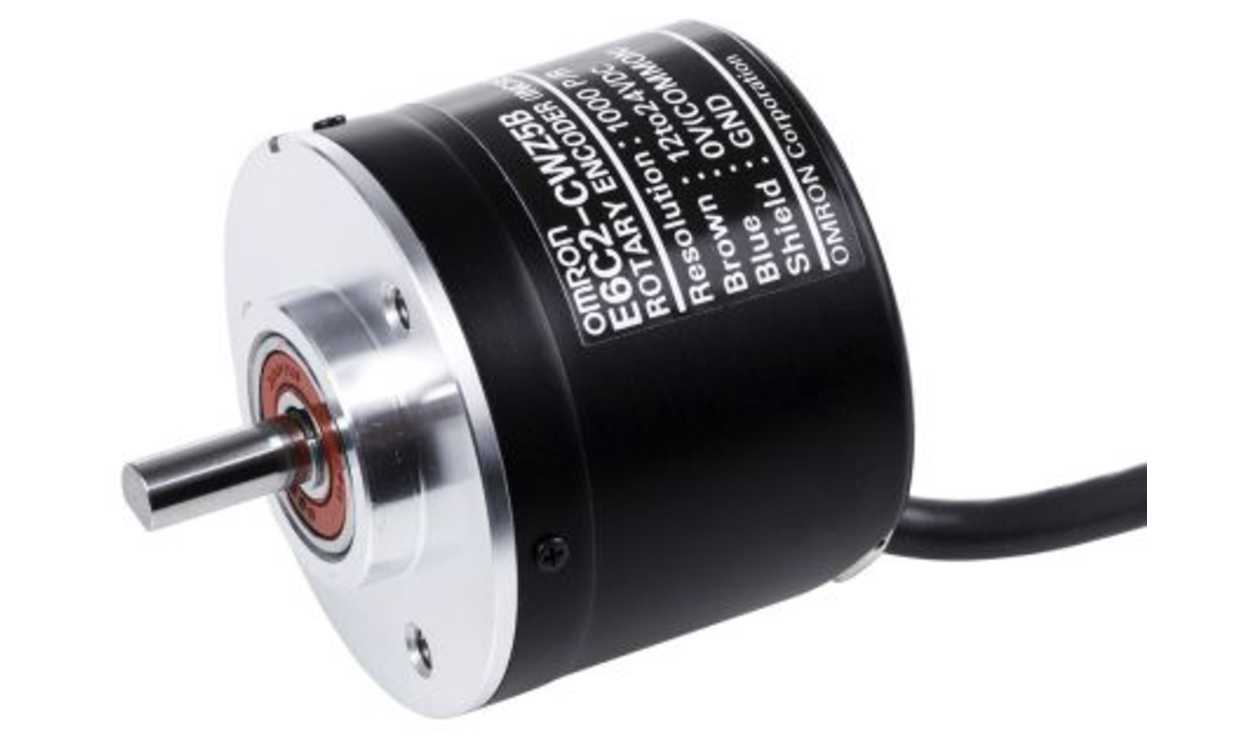

OMRON E6C2-CWZ5B 360P/R 2M | Incremental Encoder | 360 ppr, PNP, 6 mm Solid Shaft, IP64

Name: OMRON E6C2-CWZ5B 360P/R 2M | Incremental Encoder | 360 ppr, PNP, 6 mm Solid Shaft, IP64
Brand: OMRON
SKU: E6C2-CWZ5B 360P/R 2M
Availability: InStock

Part Number : E6C2-CWZ5B 360P/R 2M

The OMRON E6C2-CWZ5B 360P/R 2M is an E6C2-C series incremental encoder rated at 360 ppr with a PNP open-collector output. It has a 6 mm solid shaft, clamping flange mounting, IP64 protection and a pre-wired connection.

360 ppr, PNP open collector
12 to 24 V DC, 100 mA
6 mm solid shaft, 6000 rpm max
Clamping flange, pre-wired
IP64, 50 x 60 mm (W x H)
50 kHz, -10 °C to +70 °C

Availability: low stock

Detailed Description
Specifications
Downloads

Omron E6C2-C Series Incremental Encoder, 12 to 24V DC Supply Voltage, IP64 - E6C2CWZ5B360PR2M

This incremental encoder is essential for precise motion control in various industrial applications, providing reliable position feedback that enhances efficiency and accuracy in automation and machinery. Able to achieve a maximum rotation speed of 6000 rpm, it meets the performance requirements often seen in the electronics and mechanical sectors.

Features & Benefits

• Offers a resolution of 360 pulses per revolution for accurate feedback
• Utilises PNP open collector output for flexible connectivity
• Solid shaft design promotes durability and robust performance
• Equipped with a clamping flange for secure and straightforward installation
• Protects against dust and splashes with an IP64 rating

Applications

• Implemented for precise rotational position sensing in robotics
• Used in conveyor systems for speed and position feedback
• Applied in automated machinery for real-time monitoring
• Suitable for high-speed in manufacturing processes

What type of connection does it use?

The encoder comes pre-wired, simplifying installation and integration into your systems.

What temperature range can it operate in?

It functions effectively in environments ranging from -10 to +70°C.

How does the encoder handle high-speed operations?

It is designed to support maximum speeds of up to 6000 rpm, ensuring precise readings.

Can it be used with different voltage ranges?

Yes, it operates on a supply voltage between 12 to 24 V DC, making it adaptable for various applications.

Omron Incremental Rotary Encoders

Brand	Omron
Encoder Technology	Incremental
Series	E6C2-C
Pulses Per Revolution	360ppr
Maximum Revolutions	6000rpm
Output Signal Type	PNP Open Collector
Shaft Type	Solid
Supply Voltage	12 → 24 V dc
Shaft Diameter	6mm
Steps Per Revolution	2000ppr
IP Rating	IP64
Overall Height	60mm
Overall Width	50mm
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+70°C
Mounting Type	Clamping Flange
Current Rating	100 mA
Switching Frequency	50 kHz
Connection Type	Pre-wired
