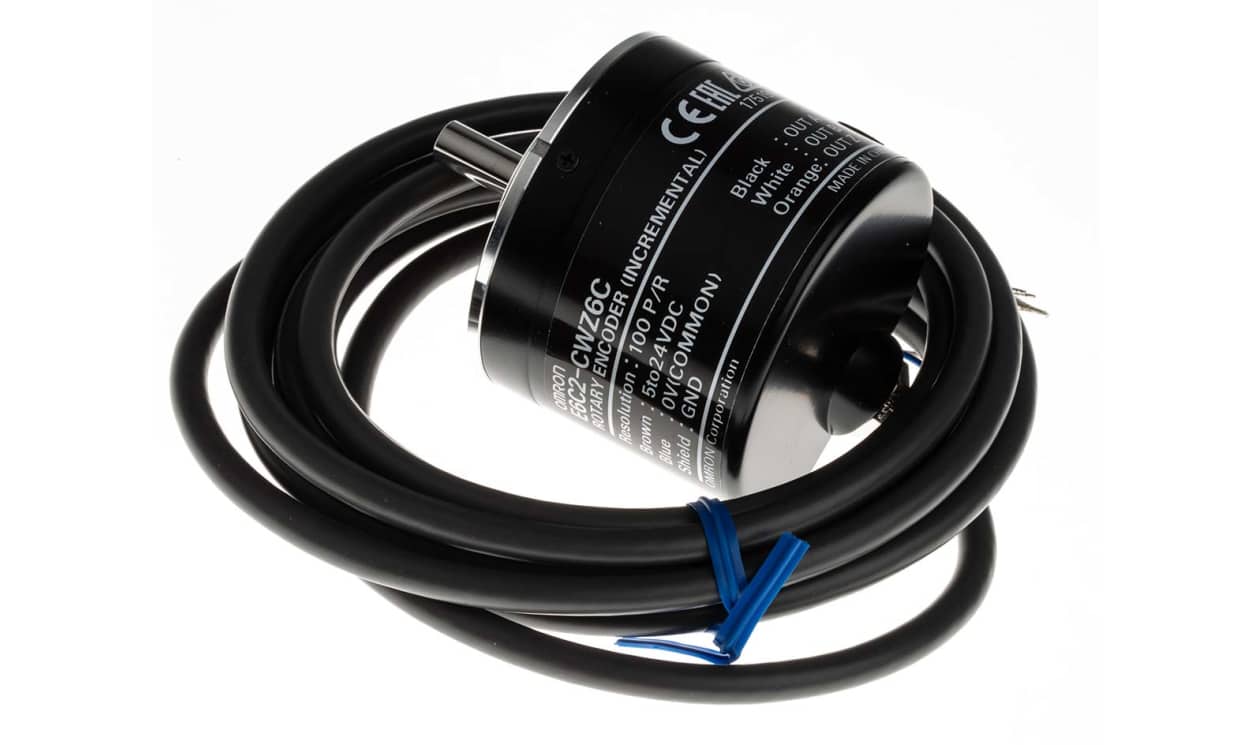

Omron E6C2-CWZ6C 100P/R 2M, E6C2 Series Incremental Incremental Encoder, 100 ppr, NPN Open Collector Signal, Solid Type, 6mm Shaft

Name: Omron E6C2-CWZ6C 100P/R 2M, E6C2 Series Incremental Incremental Encoder, 100 ppr, NPN Open Collector Signal, Solid Type, 6mm Shaft
Brand: OMRON
SKU: E6C2-CWZ6C 100P/R 2M
Availability: InStock

Part Number : E6C2-CWZ6C 100P/R 2M

Availability: low stock

Detailed Description
Specifications
Downloads

Omron E6C2 Series Incremental Encoder, 100 Pulses Per Revolution, 6mm Shaft Diameter - E6C2-CWZ6C 100P/R 2M

This incremental encoder is designed for precision tasks in automation and industrial applications. With an external diameter of 50mm, this device operates at a maximum speed of 6000rpm, ensuring optimal performance for various engineering projects. Its robust construction and reliable output make it a valuable choice for users seeking accuracy and durability.

Features & Benefits

• Incremental encoder technology for precise measurements
• Solid shaft type for improved stability in operation
• Pre-wired model simplifies installation with minimal effort
• High resolution of up to 100 pulses per revolution enhances detail

Applications

• Utilised in robotics for accurate motion control
• Effective in assembly lines for position feedback
• Used with CNC machines for precision cutting
• Ideal for conveyor systems requiring real-time monitoring

What operating conditions can be supported with this device?

It operates effectively in temperatures ranging from -10°C to 70°C and can sustain humidity levels between 35% and 85%, making it suitable for various industrial environments.

How does the IP64 rating benefit the use of this encoder?

The IP64 rating provides protection against dust and splashes of water, ensuring reliable performance in challenging conditions and extending the lifespan of the encoder.

What type of output can be expected from this encoder?

It features an NPN open collector output configuration, allowing easy integration into existing systems while supporting significant current capacities for operational flexibility.

Can the encoder handle high-speed applications?

Yes, it supports high-speed operations with a maximum of 6000 revolutions per minute, providing quick and accurate data transmission necessary for fast-paced environments.

What are the wiring specifications for connecting this encoder?

The device comes pre-wired with a standard cable length of 2m, ensuring straightforward installation while maintaining effective signal integrity across connections.

Omron Incremental Rotary Encoders

Brand	Omron
Encoder Technology	Incremental
Pulses Per Revolution	100
Series	E6C2
Maximum Revolutions	6000rpm
Output Signal Type	NPN Open Collector
Shaft Type	Solid
Shaft Diameter	6mm
Supply Voltage	5 → 24 V dc
Resolution	100 ppr
IP Rating	IP64
Overall Height	66.59mm
Overall Width	50mm
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+70°C
Connection Type	Pre-wired
Switching Frequency	100 kHz
