Omron E6C2-CWZ6C 360P/R 2M, E6C2-C Series Incremental Incremental Encoder, 360 ppr, NPN Open Collector Signal, Radial, Thrust Type, 6mm Shaft

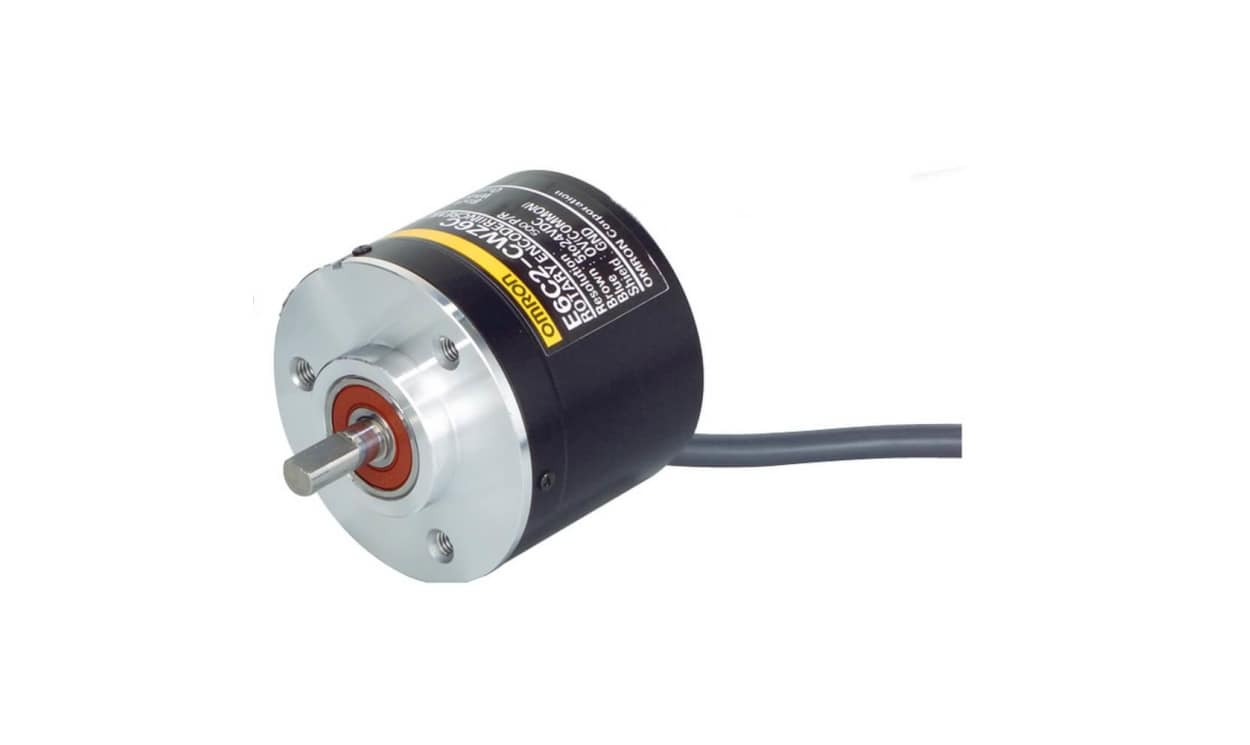

Name: Omron E6C2-CWZ6C 360P/R 2M, E6C2-C Series Incremental Incremental Encoder, 360 ppr, NPN Open Collector Signal, Radial, Thrust Type, 6mm Shaft
Brand: OMRON
SKU: E6C2-CWZ6C 360P/R 2M
Availability: InStock

Part Number : E6C2-CWZ6C 360P/R 2M

Availability: low stock

Detailed Description
Specifications
Downloads

Omron E6C2-C Series Incremental Encoder, 360 Pulses Per Revolution, 6mm Shaft Diameter - E6C2-CWZ6C 360P/R 2M

This incremental encoder is designed for precision applications in automation and industrial settings. With a radial shaft type measuring 6mm in diameter, this encoder provides 360 pulses per revolution and can operate at maximum speeds of up to 6000 rpm. It features an NPN open collector output signal, ensuring compatibility with various control systems. The encoder's supply voltage ranges from 5 to 24V, making it versatile for different installations.

Features & Benefits

• Provides 360 ppr for precise motion detection
• Supports maximum speeds of 6000 rpm, enhancing operational efficiency
• NPN open collector output ensures seamless integration
• Robust IP64 rating protects against dust and moisture
• Functions effectively within temperatures of -10°C to +70°C
• Low current rating of 80mA optimises energy consumption

Applications

• Utilised in robotic arms for precise positioning
• Employed in conveyor systems for accurate speed control
• Integrated into CNC machines for motion feedback
• Used in various automation equipment requiring high responsiveness

How does the encoder ensure reliable performance in harsh conditions?

The IP64 rating serves as a protective barrier against dust ingress and moisture, ensuring dependable function in challenging environments. This level of protection extends the encoder's lifespan, guaranteeing consistent performance in industrial applications.

What voltage range is suitable for this encoder?

This incremental encoder operates efficiently within a supply voltage range of 5 to 24V, allowing it to adapt to various system requirements and ensuring compatibility with different electrical setups.

Can the encoder handle high-speed applications?

Yes, it is capable of operating at a maximum of 6000 rpm, making it suitable for applications that require rapid feedback and control in dynamic environments. This high-speed performance enhances overall system efficiency.

What type of output signal does the encoder provide?

This encoder features an NPN open collector output signal, which is advantageous for its ease of integration with PLCs and other control devices, supporting straightforward connections in automation systems.

Brand	Omron
Encoder Technology	Incremental
Pulses Per Revolution	360
Series	E6C2-C
Maximum Revolutions	6000rpm
Output Signal Type	NPN Open Collector
Shaft Type	Radial, Thrust
Shaft Diameter	6mm
Supply Voltage	5 → 24 V
Resolution	360
Steps Per Revolution	360ppr
IP Rating	IP64
Minimum Operating Temperature	+70°C
Maximum Operating Temperature	-10°C
Current Rating	80 mA
Switching Frequency	100 kHz
