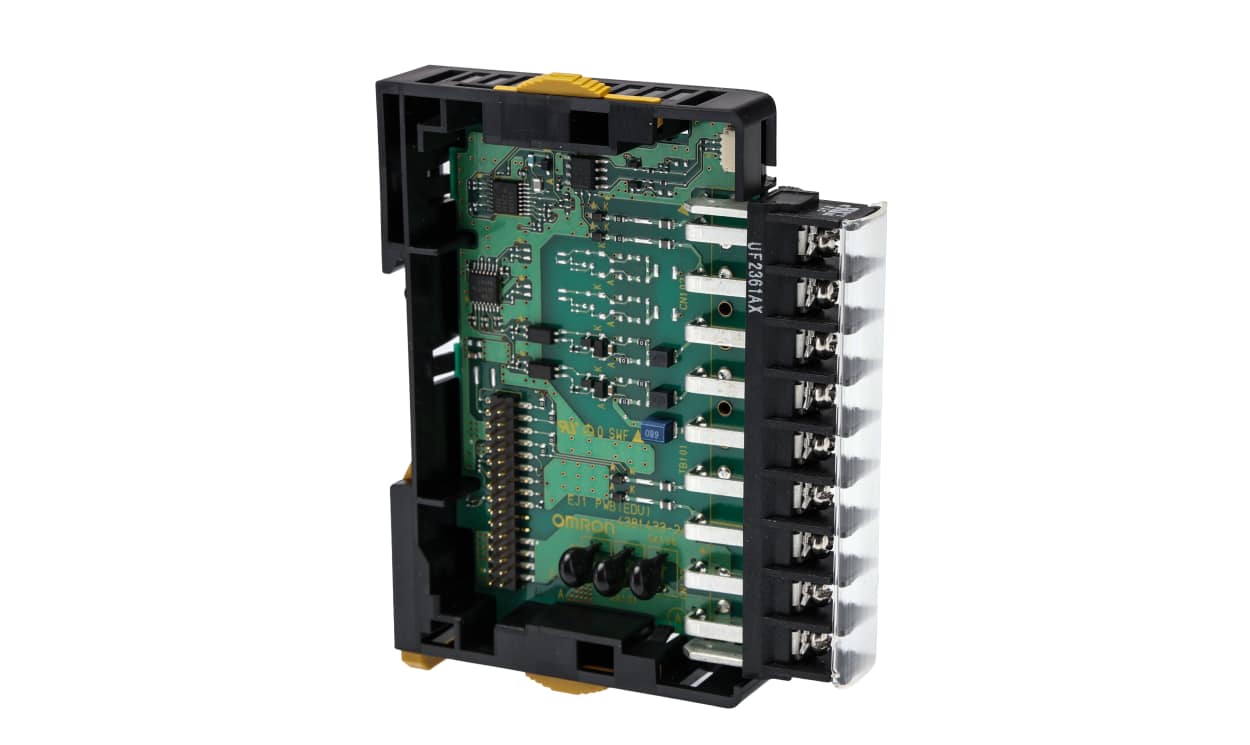

Omron EJ1C-EDUA-NFLK, EJ1 DIN Rail Controller, 48 x 48mm 4 Input, 4 Output Transistor, 24 V dc Supply Voltage ON/OFF, PID, 2-PID

Name: Omron EJ1C-EDUA-NFLK, EJ1 DIN Rail Controller, 48 x 48mm 4 Input, 4 Output Transistor, 24 V dc Supply Voltage ON/OFF, PID, 2-PID
Brand: OMRON
SKU: EJ1C-EDUA-NFLK
Availability: InStock

Part Number : EJ1C-EDUA-NFLK

Availability: low stock

Detailed Description
Specifications
Downloads

Omron EJ1 Series Controller, 24V DC Supply Voltage, Compact size - EJ1C-EDUA-NFLK

This controller is designed as an industrial temperature management solution, featuring a compact design suitable for DIN rail mounting. With dimensions of 48 x 48 mm, it supports a 24V DC power supply and incorporates advanced control methodologies. The device delivers reliable performance within a temperature range of -10°C to +55°C.

Features & Benefits

• Compact modular design allows tailored temperature control setups
• Direct connection to Programmable Controllers for simplified implementation
• Universal-input capabilities reduce inventory needs and enhance versatility
• Autotuning for precise control optimises heating and cooling efficiency
• Screw terminal block design facilitates streamlined wiring connections

Applications

• Utilised for precise temperature control in manufacturing processes
• Ideal for integrating with various programmable automation systems
• Used in HVAC systems for accurate temperature monitoring and control
• Suitable for use in laboratory environments for scientific experiments

What input types can the controller accommodate for flexibility?

It accommodates thermocouples, platinum-resistance thermometers, and analogue inputs to ensure compatibility with diverse sensors, allowing for tailored solutions.

How does the controller manage temperature variations effectively?

Utilising ON/OFF control and advanced PID algorithms, it adjusts outputs to maintain the desired temperature, enhancing process stability and reducing energy consumption.

Can multiple controllers be connected to enhance temperature regulation in larger systems?

Yes, up to 16 controllers can be connected via a single DeviceNet Communications Unit, allowing expansive temperature management across complex setups.

What is the significance of the IP20 rating for this controller?

The IP20 rating indicates that the device is protected from dust ingress and solid objects over 12.5mm, suitable for indoor industrial applications where dust protection is essential.

Brand	Omron
Output Type	Transistor
Supply Voltage	24 V dc
Size	48 x 48mm
Number of Inputs	4
Number of Outputs	4
Control Type	ON/OFF, PID, 2-PID Controller
Mounting Type	DIN Rail
Series	EJ1
Termination Type	Screw terminal block
