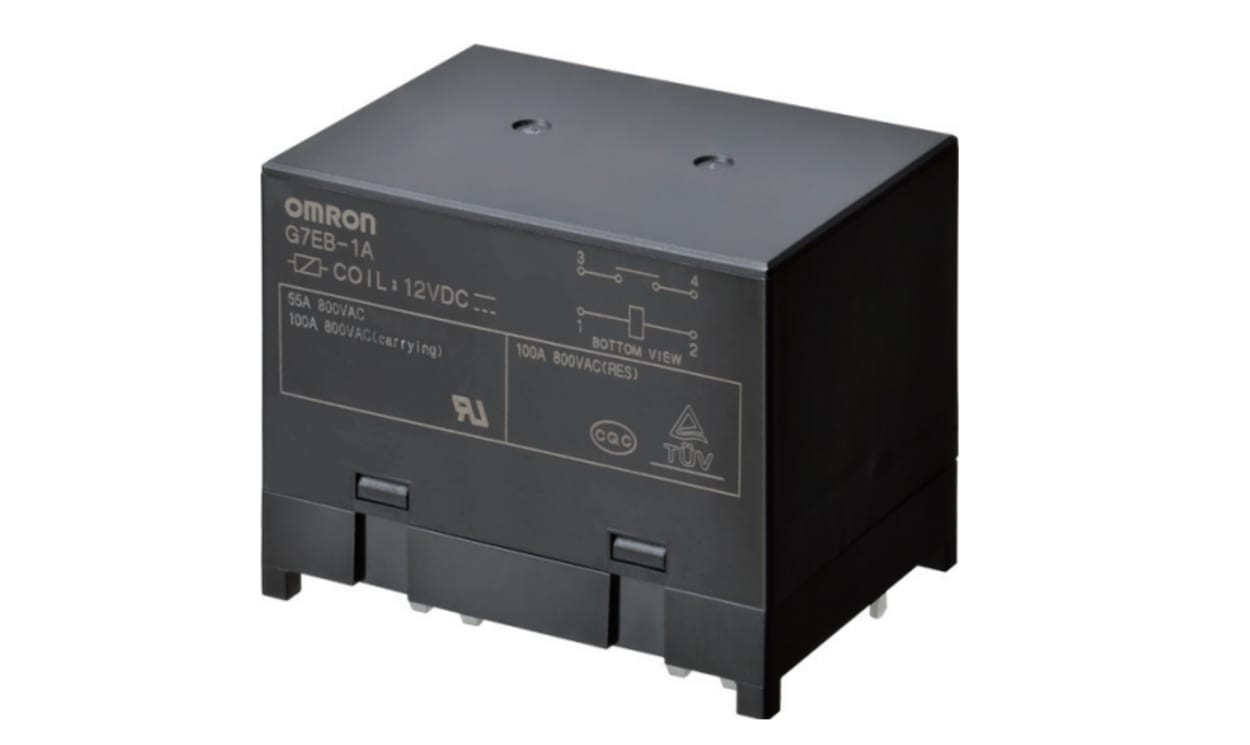

OMRON G7EB-1A DC24 | PCB Mount Non-Latching Relay | 24 V DC Coil, 100 A, SPST

Name: OMRON G7EB-1A DC24 | PCB Mount Non-Latching Relay | 24 V DC Coil, 100 A, SPST
Brand: OMRON
SKU: G7EB-1A DC24
Availability: InStock

Part Number : G7EB-1A DC24

This 24 V DC version of the OMRON G7EB-1A DC24 is a PCB-mount non-latching relay offering SPST contacts and 100 A switching current. Coil resistance is 206 Ω with 2.8 W coil power, and coil-to-contact isolation is 10 kV.

SPST contact configuration, 1 pole
Number of coils: single
OMRON G7EB series

Availability: low stock

Detailed Description
Specifications
Downloads

The Omron G7EB series high power and high temperature type power relay with 480 VAC and 100 A switching current. Used for power conditioner inverter and industrial inverter.

480 VAC/100 A high current switching
60 VDC/100 A for normal/reverse direction switching
Ambient temperature 85°C
High impulse withstand voltage, 10 kV
Contact gap ≥3.6 mm (Applied to VDE0126)
Low initial contact resistance ≤5 mΩ

Brand	Omron
Coil Voltage	24V dc
Contact Configuration	SPST
Mounting Type	PCB Mount
Switching Current	100A
Number of Poles	1
Series	G7EB
Coil Resistance	206 Ω
Coil Power	2.8W
Isolation Coil To Contact	10kV
Number of Coils	Single

OMRON G7EB-1A DC24 | PCB Mount Non-Latching Relay | 24 V DC Coil, 100 A, SPST

DOWNLOAD CATALOG
