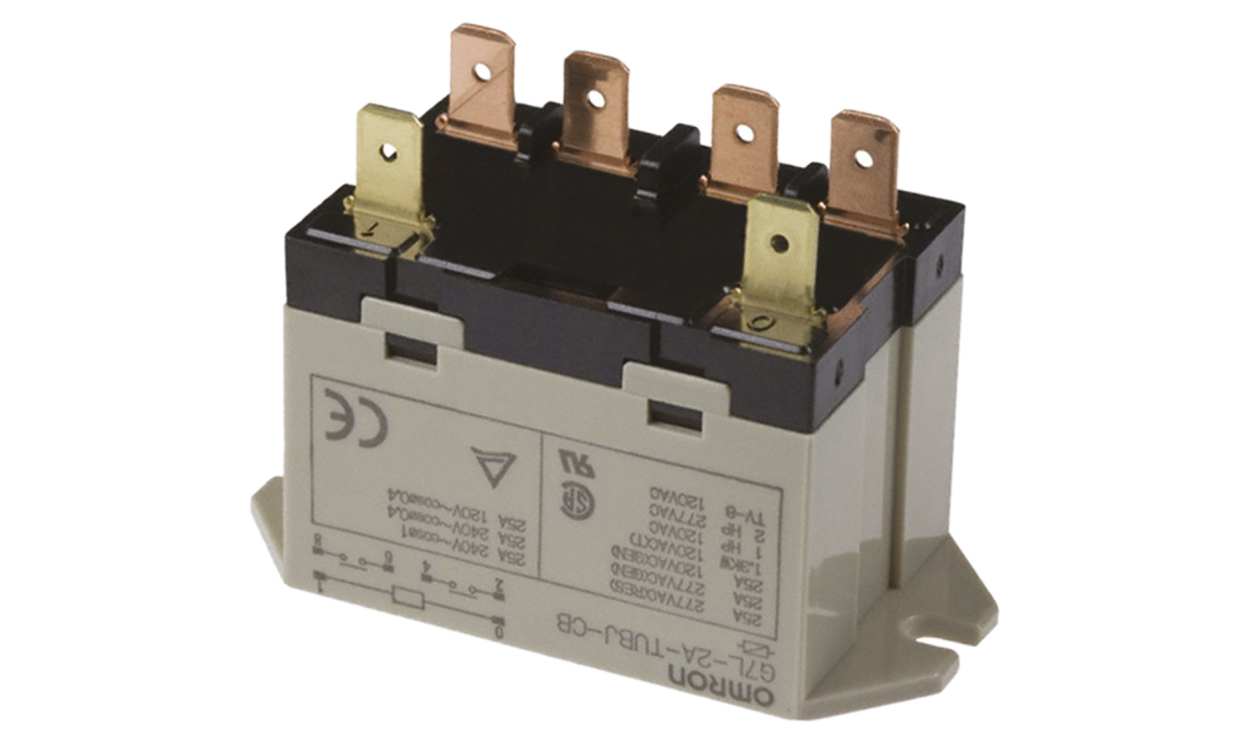

OMRON G7L-2A-TUB DC100 | Panel Mount Power Relay | 100 V DC Coil, DPST, 25 A

Name: OMRON G7L-2A-TUB DC100 | Panel Mount Power Relay | 100 V DC Coil, DPST, 25 A
Brand: OMRON
SKU: G7L-2A-TUB DC100
Availability: InStock

Part Number : G7L-2A-TUB DC100

The DPST OMRON G7L-2A-TUB DC100 power relay handles 25 A and runs from a 100 V DC coil. The G7L-2A-TUB DC100 belongs to the G7L series (non-latching) and comes with panel mounting and quick-connect terminals.

Listed application: general purpose
2,560 Ω coil resistance
Switching power up to 5.5 kVA (AC)
Works in ambient temperatures −25 °C to +60 °C
Size: length 68.5 mm, depth 33.5 mm, height 47 mm

Availability: low stock

Detailed Description
Specifications
Downloads

PCB Mounting & Plug-in - Power Relays - G7L Series

Relay compatible with momentary voltage drops up to 50% of rated voltage
High capacity and high dielectric strength
Flame-resistance UL94V-0 insulation material
Choice of connection types available - quick-connect or PCB terminals
Suitable DIN rail/surface socket (Front connecting socket) and relay mounting clip (E-bracket) available separately for use with quick-connect types G7L-1A-T and G7L-2A-T (not to be used with G7L-1A-TUB and G7L-2A-TUB upper bracket mount types)

Approvals

UL; CSA; TÜV

Brand	Omron
Coil Voltage	100V dc
Contact Configuration	DPST
Mounting Type	Panel Mount
Switching Current	25A
Number of Poles	2
Series	G7L
Latching	No
Terminal Type	Quick Connect
Length	68.5mm
Coil Resistance	2560Ω
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+60°C
Depth	33.5mm
Height	47mm
Maximum Switching Power AC	5.5 kVA
Application	General Purpose
