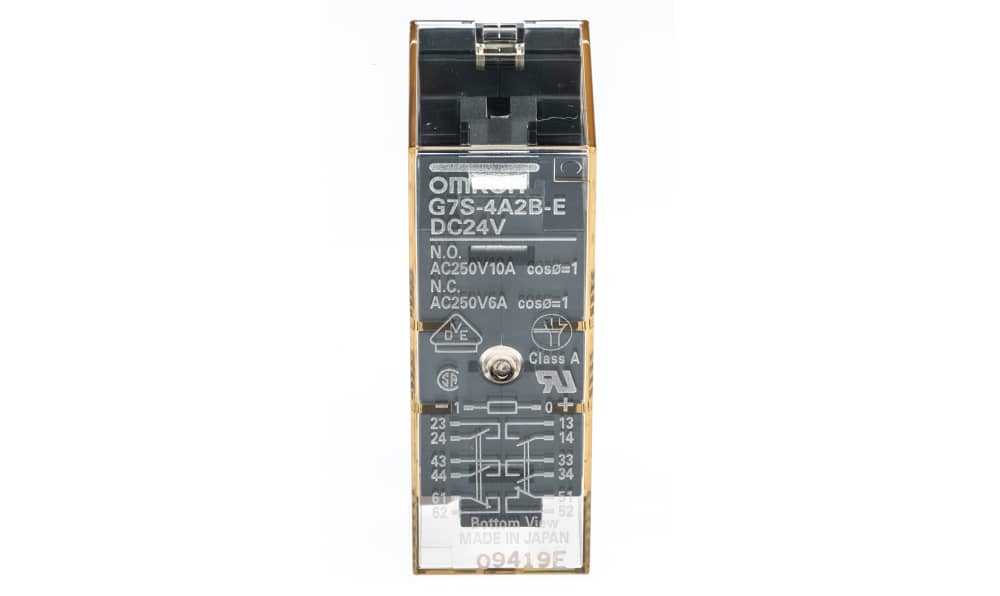

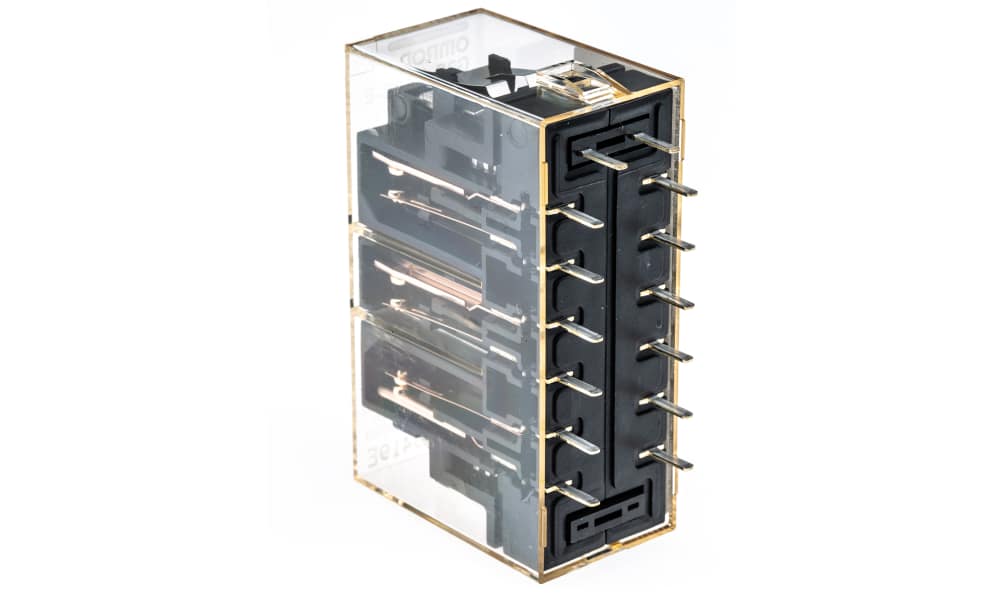

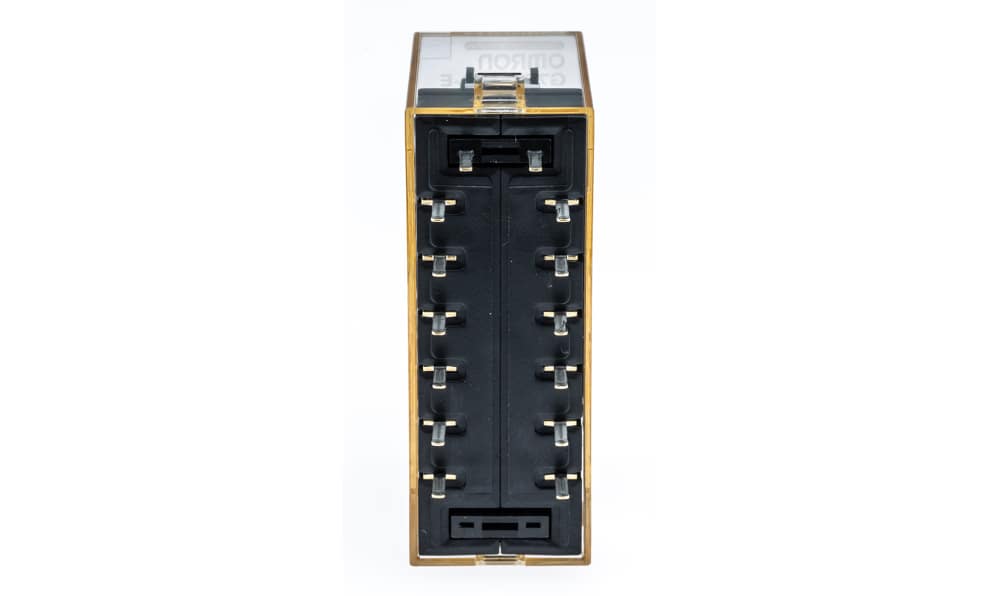

OMRON G7S-4A2B-E DC24 | PCB Force Guided Relay | 24 V DC Coil, 4PST/DPST, 10 A

Name: OMRON G7S-4A2B-E DC24 | PCB Force Guided Relay | 24 V DC Coil, 4PST/DPST, 10 A
Brand: OMRON
SKU: G7S-4A2B-E DC24
Availability: InStock

Part Number : G7S-4A2B-E DC24

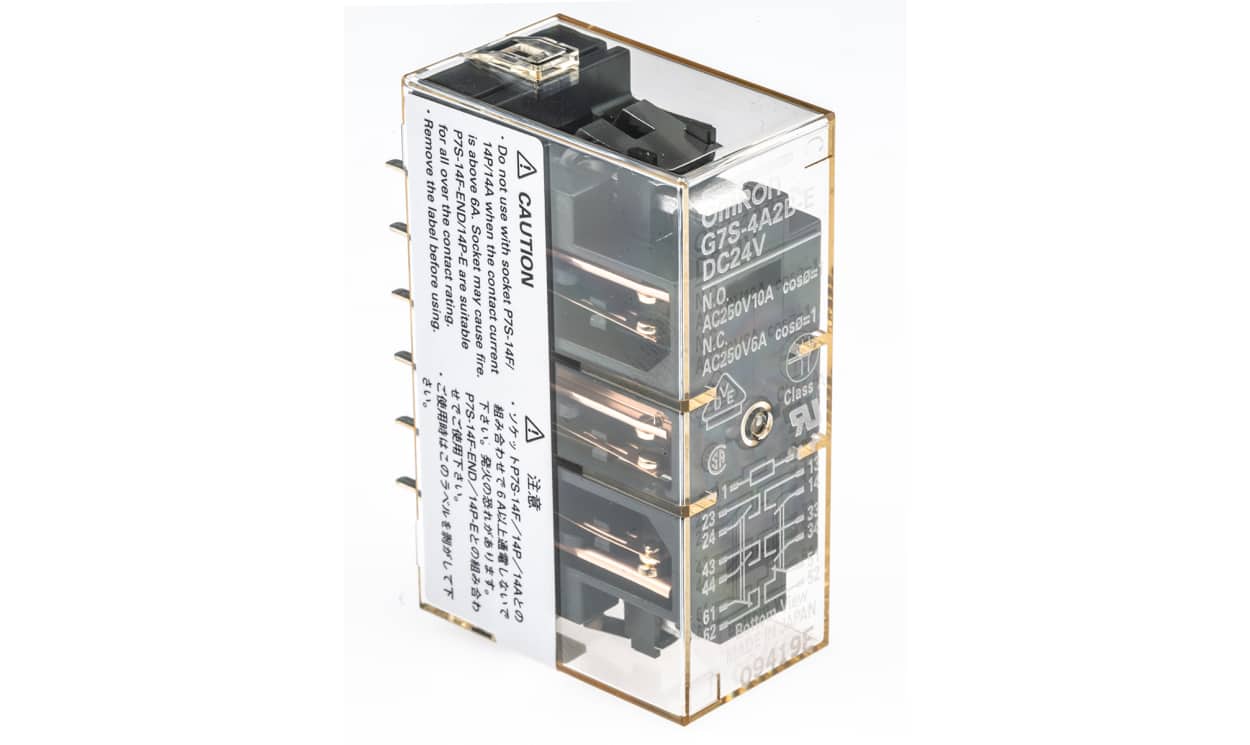

Configured as 4PST plus DPST across six poles, the OMRON G7S-4A2B-E DC24 force guided relay mounts on a PCB and switches up to 10 A. It is CE compliant and UL recognised.

24 V DC coil, 800 mW, 800 Ω
250 V AC / 30 V DC max. switching voltage
4 kV AC coil-to-contact isolation
Life 1,000,000 electrical / 10,000,000 mechanical cycles
Standards: UL, VDE
Through-hole, 62 x 37 x 22.5 mm

Availability: low stock

Detailed Description
Specifications
Downloads

10A, 6A Relays with Forcibly Guided Contacts - G7SA

The G7S-A relays are slimline with forcibly guided contacts with a 10 Amp rating for NO Contact and 6A for NC. They are available as six-pole types with two contact configurations. It can be soldered directly to a PCB or used together with the P7S socket for panel installations.

Forcibly guided contacts
10A at 240VAC and 10A at 24VDC for resistive loads
14 pins
800 Ω contact resistance
Reinforced insulation between inputs and outputs and poles
Sealing: unsealed
Operating temperature: -25 to 70C

Note

Stock number 584004 is Track Mounted Socket

Standards

Conforms to EN 50205

Approvals

UL, CSA

OMRON Force Guided Relay, Through-Hole Mounting, 1000MΩ Insulation Resistance - G7S Series - G7S-4A2B-E DC24

When safety and reliability have equal priority, reach for this force guided relay from OMRON. Its 6-pole configuration means it can control multiple circuits simultaneously, saving space and boosting productivity. The unit features reinforced insulation between its inputs, outputs and poles, so your fingers don't come in contact with live parts, and you're protected from any shocking surprises.You can trust it to operate safely in challenging conditions, thanks to a broad temperature range of -25°C to +70°C. The device is commonly used in mechanisms controlling escalators and lifts.

Features & Benefits

• PCB mounting achieves a firm and vibration-proof attachment to equipment
• Weighs just 65g so it won't put strain on your setup
• Mechanical lifespan of 10 million operations for long-lasting performance
• Low power consumption of 800mW ensures energy efficiency
• Can be assembled in any direction, for versatility

Applications

• Hospitality industry
• Food and beverage production
• Oil and gas plants

How do I maintain this component?

To keep it fighting fit, you should clean the relay gently with a microfibre cloth. As it has an unenclosed construction, don't wash it with water or detergent and keep away from direct water sprays.

Brand	Omron
Coil Voltage	24V dc
Mounting Type	PCB Mount
Contact Configuration	4PST, DPST
Number of Poles	6
Coil Resistance	800Ω
Switching Current	10A
Maximum Switching Current AC	10 A
Coil Power	800mW
Maximum Switching Current DC	10 A
Maximum Switching Voltage DC	30V
Maximum Switching Voltage AC	250V
Terminal Type	Through Hole
Approvals	CE Compliant, UL Recognised
Standards Met	UL, VDE
Life	1000000 (Electrical) cycles, 10000000 (Mechanical) cycles
Length	62mm
Height	37mm
Depth	22.5mm
Isolation Coil To Contact	4kV ac

OMRON G7S-4A2B-E DC24 | PCB Force Guided Relay | 24 V DC Coil, 4PST/DPST, 10 A

DOWNLOAD CATALOG

G7S-4A2B-E DC24 G7S Datasheet 0900766b816cd4f6

G7S-4A2B-E DC24 Brochure - Machine Safety Solutions A700000010145406

OMRON G7S-4A2B-E DC24 | PCB Force Guided Relay | 24 V DC Coil, 4PST/DPST, 10 A

10A, 6A Relays with Forcibly Guided Contacts - G7SA
