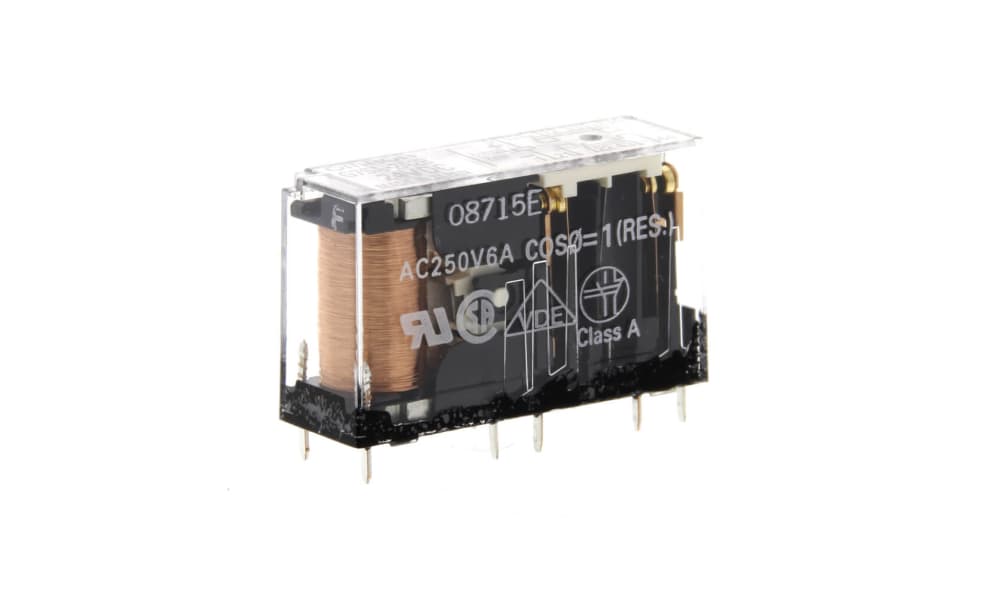

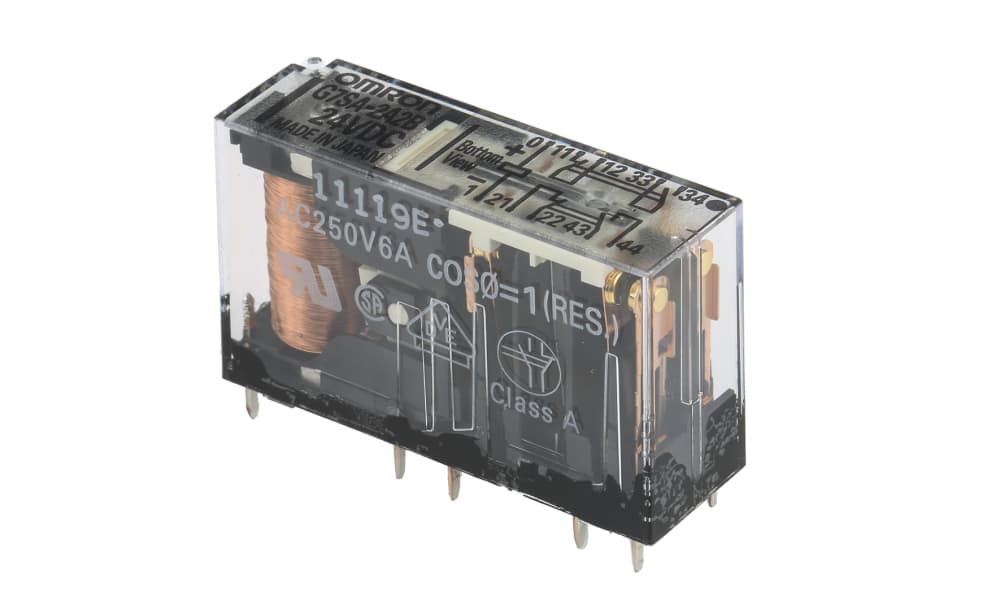

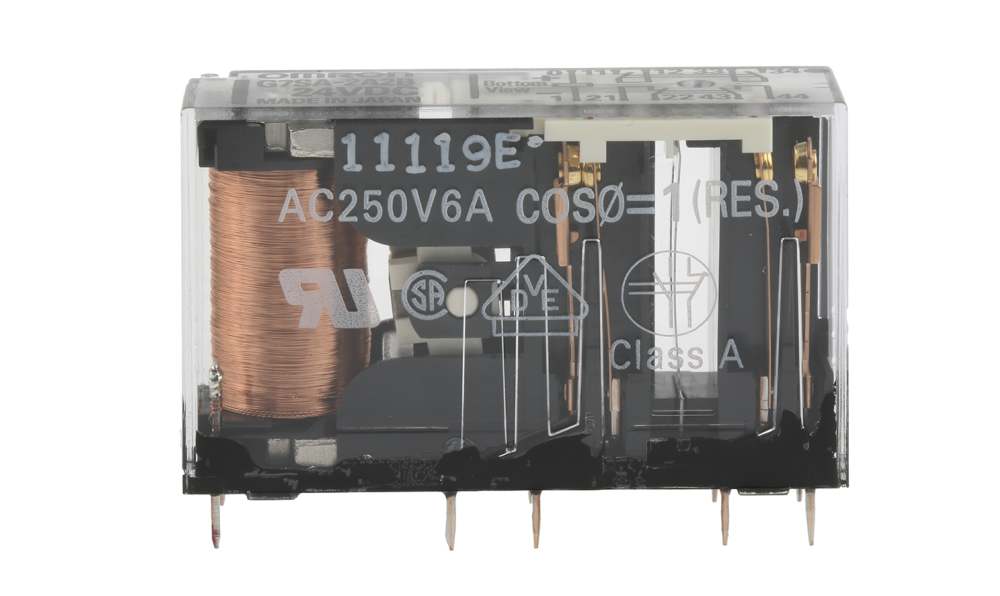

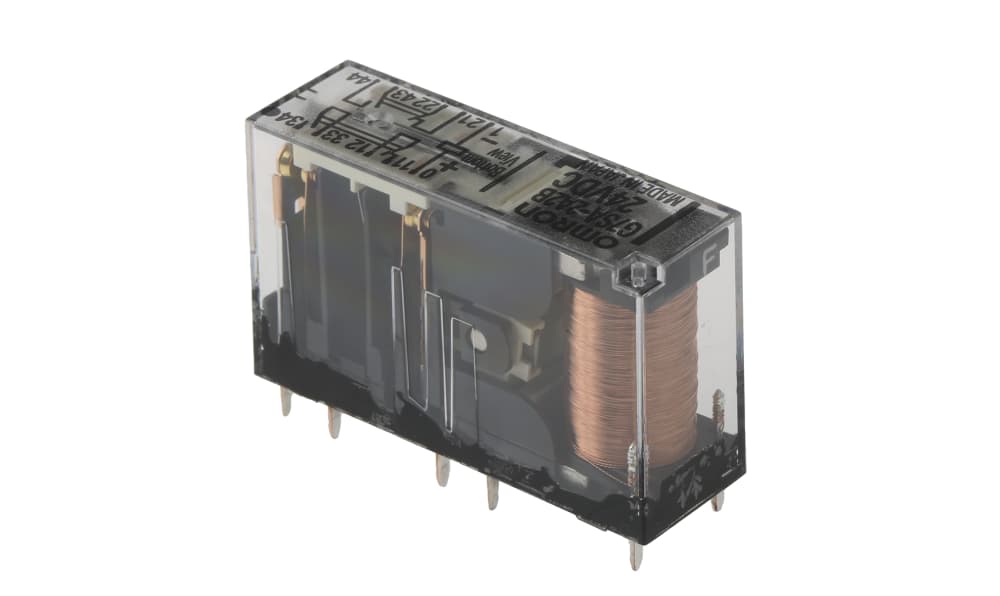

Omron G7SA-2A2B 24VDC, PCB Mount Force Guided Relay, 24V dc Coil Voltage, 4 Pole, DPDT

Part Number : G7SA-2A2B 24VDC

Availability: Sold out

Detailed Description
Specifications

6A Relays with Forcibly Guided Contacts - G7SA

The slimline G7SA relay family with forcibly guided contacts is available as a four- or six-pole type in various contact combinations and offers reinforced insulation. Terminals are arranged for easy PCB layout. It can be soldered directly to a PCB or used together with the P7SA sockets for panel installations.

Forcibly guided contacts
6A at 240VAC and 6A at 24VDC for resistive loads
Reinforced insulation between inputs and outputs and poles
4- and 6-pole relays available
Sealing: flux-tight
Operating temperature: -40 to 85C

Standards

Conforms to EN 50205

Approvals

UL, CSA

OMRON Force Guided Relay, PCB Mounting, 15mA Maximum Input Current - G7S Series - G7SA-2A2B DC24

Looking to expand the outputs for your safety relay modules and safety controllers? Reach for this force guided relay from OMRON. To stop potential accidents, its protective design keeps an eye on your machinery and forces a shutdown if there are any electrical problems. A 4-pole configuration lets it control multiple circuits, saving space and boosting productivity. It features reinforced insulation between inputs, outputs and poles to keep you from accidentally touching any live parts. The unit's gold-plated contacts are highly conductive and corrosion-resistant, meaning you can count on them for use in the long run. Use this device in automotive assembly lines and food processing equipment.

Features & Benefits

• Flux tight sealing prevents external contaminants from damaging your machinery
• Mechanical lifespan of 10 million operations for long-lasting use
• Safe to use in demanding settings, thanks to a wide operating temperature range of -40°C to +85°C
• Low power consumption of 500mW for energy efficiency
• Through-hole termination for a secure and vibration-proof attachment to your equipment

Applications

• Marine industry
• Telecommunications networks
• Power plants

How do I mount this component?

The relay can be soldered directly onto a PCB or paired with a socket from the P7SA series (548-026) to suit your system's needs.

Brand	Omron
Coil Voltage	24V dc
Mounting Type	PCB Mount
Contact Configuration	DPDT
Number of Poles	4
Coil Resistance	1.6 kΩ
Switching Current	6A
Coil Power	800mW
Maximum Switching Current AC	6 A
Maximum Switching Current DC	6 A
Maximum Switching Voltage DC	125V
Maximum Switching Voltage AC	250V
Terminal Type	Through Hole
Approvals	CSA, UL
Standards Met	CQC, CSA, UL
Height	24mm
Length	40mm
Maximum Operating Temperature	+85°C
Series	G7S
Depth	13mm
