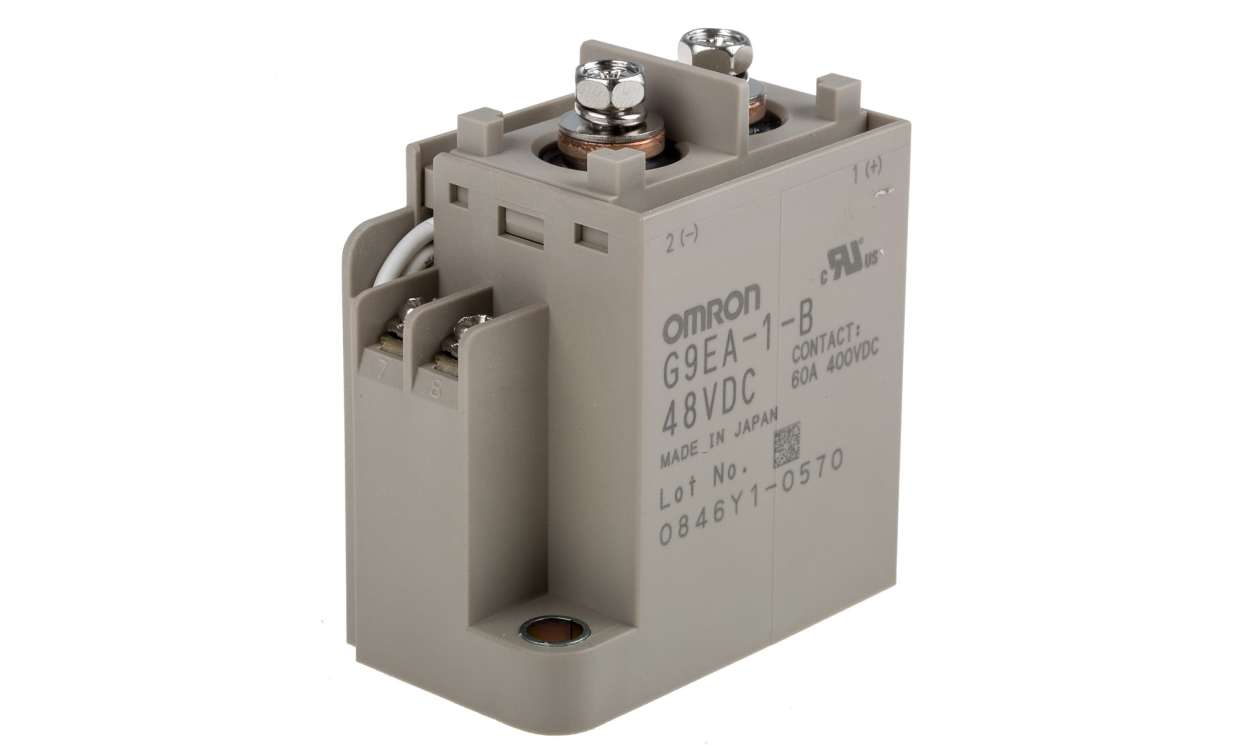

OMRON G9EA-1-B 48DC | Surface Mount Power Relay | 48 V DC Coil, SPST, 100 A
Part Number : G9EA-1-B 48DC
Rated for 100 A switching current, the OMRON G9EA-1-B 48DC is an SPST power relay driven by a 48 V DC coil. The G9EA-1-B 48DC belongs to the G9EA series (non-latching) and comes with surface mounting and screw terminals.
- Operating temperature: −40 °C to +70 °C
- Rated life: 200,000 cycles (electrical)
- Dimensions: length 73 mm, depth 36 mm, height 67.2 mm
- Application category: power
- Coil resistance 469.3 Ω, coil power 5 W
- Coil-to-contact isolation: 2.5 kV AC
For pricing, please contact our experts.
