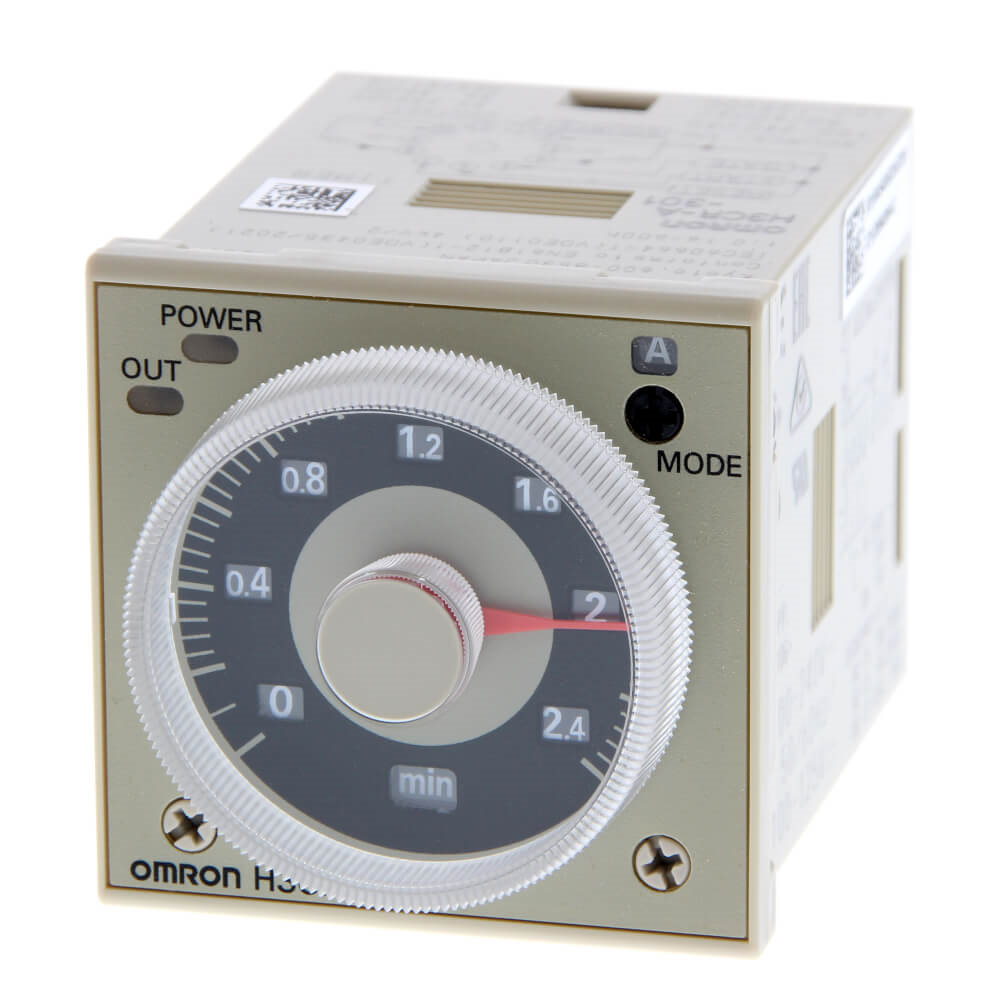

OMRON H3CR-A8E 100-240VAC/100-125VDC | H3CR-A Solid-State Multi-Function Timer | 0.05 s to 300 h, 100-240 VAC / 100-125 VDC, 8-Pin
Part Number : H3CR-A8E 100-240VAC/100-125VDC
The H3CR-A8E is an 8-pin plug-in solid-state multi-function timer from the OMRON H3CR-A series in a DIN 48 x 48 mm case. It runs on 100 to 240 VAC or 100 to 125 VDC and offers five operating modes. It is used for delay, flicker, interval and one-shot timing in control panels.
Key features
- Operating modes: A (ON-delay), B and B2 (flicker), E (interval), J (one-shot)
- Supply 100 to 240 VAC (50/60 Hz) or 100 to 125 VDC
- Time range up to 300 h (series standard range 0.05 s to 300 h)
- Relay output rated 5 A at 250 VAC / 30 VDC (resistive)
- Time-limit and instantaneous contact outputs, 8-pin plug-in
- Operating time accuracy of 0.2% FS max.
