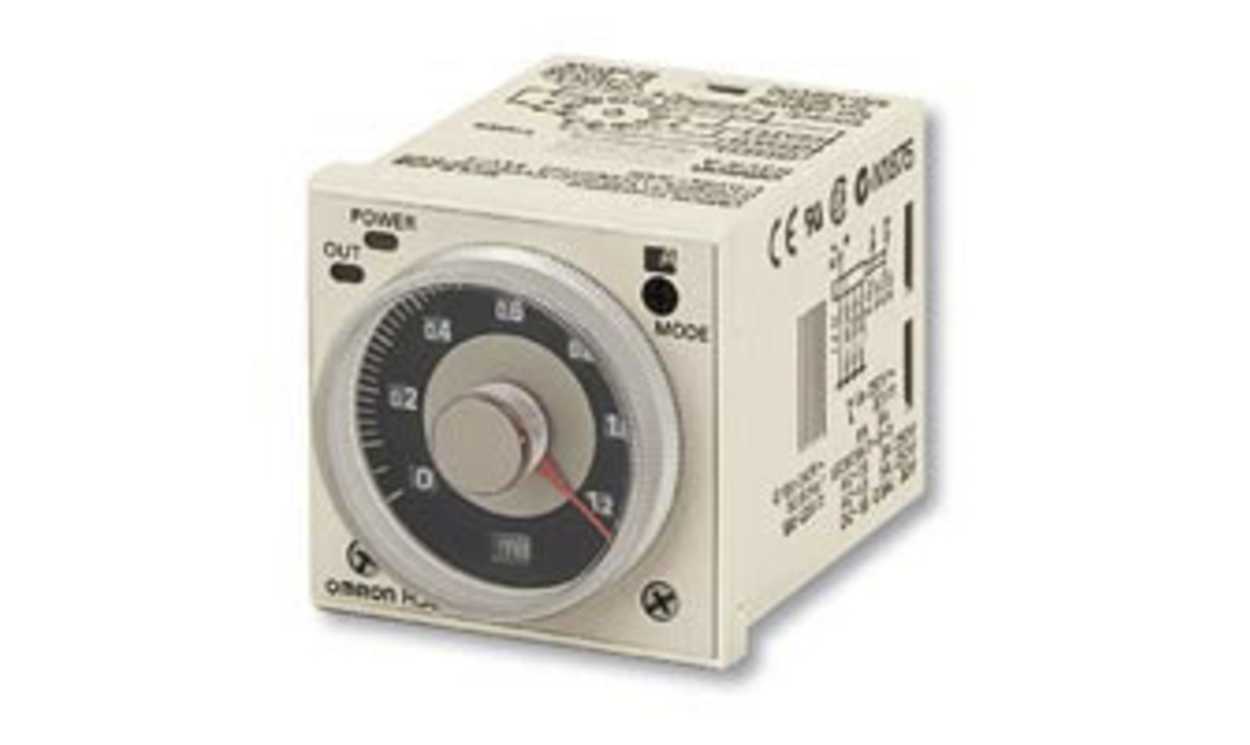

OMRON H3CR-AS AC24-48/DC12-48 | Timer Relay | 0.05 s-300 h, 12-48 V DC, 24-48 V AC

Name: OMRON H3CR-AS AC24-48/DC12-48 | Timer Relay | 0.05 s-300 h, 12-48 V DC, 24-48 V AC
Brand: OMRON
SKU: H3CR-AS AC24-48/DC12-48
Availability: InStock

Part Number : H3CR-AS AC24-48/DC12-48

Covering 0.05 s to 300 h, the OMRON H3CR-AS AC24-48/DC12-48 is a DIN-rail-mounted H3CR timer relay powered from 12 to 48 V DC, 24 to 48 V AC; its listed mode of operation is on-delay.

Maximum current: 0.1 A
Mounting: DIN rail
Connection: crimp
Size: 48 x 48 mm
Maximum switching voltage: 48 V AC/DC
Operating temperature: -10 °C to +55 °C

Availability: low stock

Detailed Description
Specifications
Downloads

Omron Timer Relay

The Omron H3CR series multifunction timer relay has multiple operating modes. There are eight modes for 11-pin models and five modes for 8-pin models. It has an ON delay timer along with 2 changeover contacts and is DIN rail mount. The relay requires a supply voltage ranging between 12VDC to 48VDC and 24VAC to 48VAC along with a maximum current rating of 100mA. It has an adjustable time range between 0.05sec and 300hours.

Features and Benefits

• Crimp terminal type
• Easy sequence checking with instantaneous outputs for a zero set value
• Ecological design with reduced current consumption
• Operating temperature ranges between -10°C and 55°C

Applications

• Industrial application
• Timing control

Certifications

• CSA approved
• IEC60664
• UL approved

Brand	Omron
Supply Voltage	12 → 48 V dc, 24 → 48V ac
Mounting Type	DIN Rail
Mode of Operation	ON Delay
Time Range	0.05 s → 300h
Number of Timer Functions	Multi Function
Time Increment	Hours, Minutes, Seconds
Maximum Current	0.1A
Maximum Voltage	48V ac/dc
Terminal Type	Crimp
Minimum Voltage	12 V dc, 24V ac
Power Supply	Internal
Width	48mm
Depth	81.6mm
Series	H3CR
Maximum Operating Temperature	+55°C
Length	48mm
Minimum Operating Temperature	-10°C

OMRON H3CR-AS AC24-48/DC12-48 | Timer Relay | 0.05 s-300 h, 12-48 V DC, 24-48 V AC
