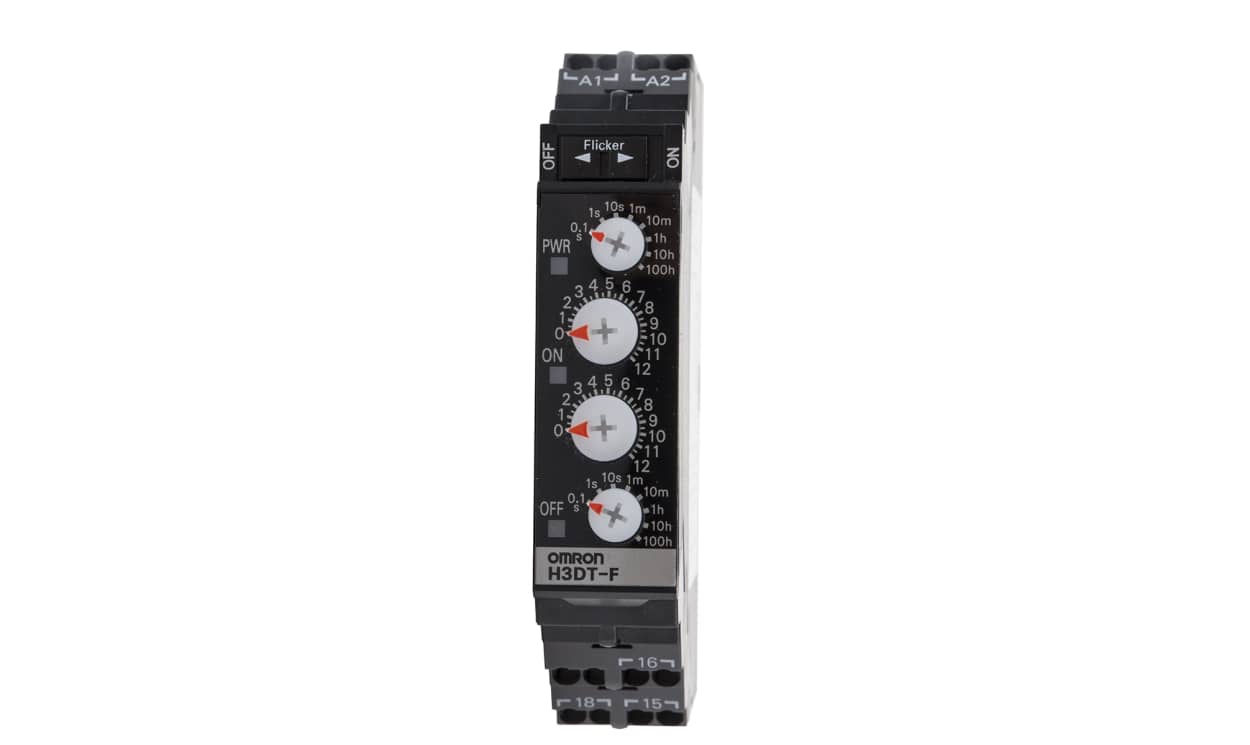

OMRON H3DT-F 24-240VAC/DC | DIN Rail Flicker Timer Relay | 24–240 V AC/DC, 0.1 s–1200 h, SPDT

Name: OMRON H3DT-F 24-240VAC/DC | DIN Rail Flicker Timer Relay | 24–240 V AC/DC, 0.1 s–1200 h, SPDT
Brand: OMRON
SKU: H3DT-F 24-240VAC/DC
Availability: InStock

Part Number : H3DT-F 24-240VAC/DC

For 24 to 240 V AC/DC control circuits, the OMRON H3DT-F 24-240VAC/DC is an H3DT series DIN rail flicker timer relay adjustable over 0.1 s to 1200 h. The H3DT-F 24-240VAC/DC provides SPDT output and a 5 A maximum current rating.

Operating mode: Flicker OFF Start/Flicker ON Start
Single timer function
Screw terminals
Contact material: Silver Alloy
Dimensions: 90 mm wide, 17.5 mm long and 100 mm deep (as listed)
Maximum operating temperature +60 °C

Availability: low stock

Detailed Description
Specifications
Downloads

Omron H3DT Series Timer Relay, 24 to 240V AC/DC Supply Voltage, SPDT Contact Configuration - H3DT-F

This timer relay offers precise control in automation and electrical applications, featuring both Flicker OFF Start and Flicker ON Start modes. It supports timing sequences ranging from 0.1 seconds to 1200 hours and is compatible with supply voltages between 24 and 240 V AC/DC, making it suitable for various installations in critical environments.

Features & Benefits

• Extensive time ranges for customisable Applications
• High maximum current of 5A for robust performance
• External power supply feature for enhanced installation flexibility
• Dual SPDT contact configuration for versatile circuit design
• Secure screw terminal type ensures safe connections
• Efficient operation within a temperature range of -20 to +60°C

Applications

• Industrial automation for controlling machinery timing
• HVAC systems for managing equipment cycles
• Lighting control to optimise energy usage
• Conveyor systems for regulating timing sequences
• Security systems for efficient activation and deactivation

How does the timer operate in Flicker OFF mode?

It allows devices to start after a specific delay, improving operational efficiency.

Can it be installed directly onto a DIN rail?

Yes, it is designed for straightforward mounting on DIN rails.

How do I adjust the timing settings on the relay?

Timing settings can be configured using simple adjustments according to the desired range.

Brand	Omron
Supply Voltage	24 → 240V ac/dc
Mounting Type	DIN Rail
Mode of Operation	Flicker OFF Start/Flicker ON Start
Time Range	0.1 s → 1200 h
Number of Contacts	2
Number of Timer Functions	Single
Contact Configuration	SPDT
Time Increment	Hours, Minutes, Seconds
Maximum Current	5A
Maximum Voltage	30 V dc, 250V ac
Terminal Type	Screw
Switch Configuration	SPDT
Width	90mm
Power Supply	External
Depth	100mm
Length	17.5mm
Series	H3DT
Maximum Operating Temperature	+60°C
Contact Material	Silver Alloy
