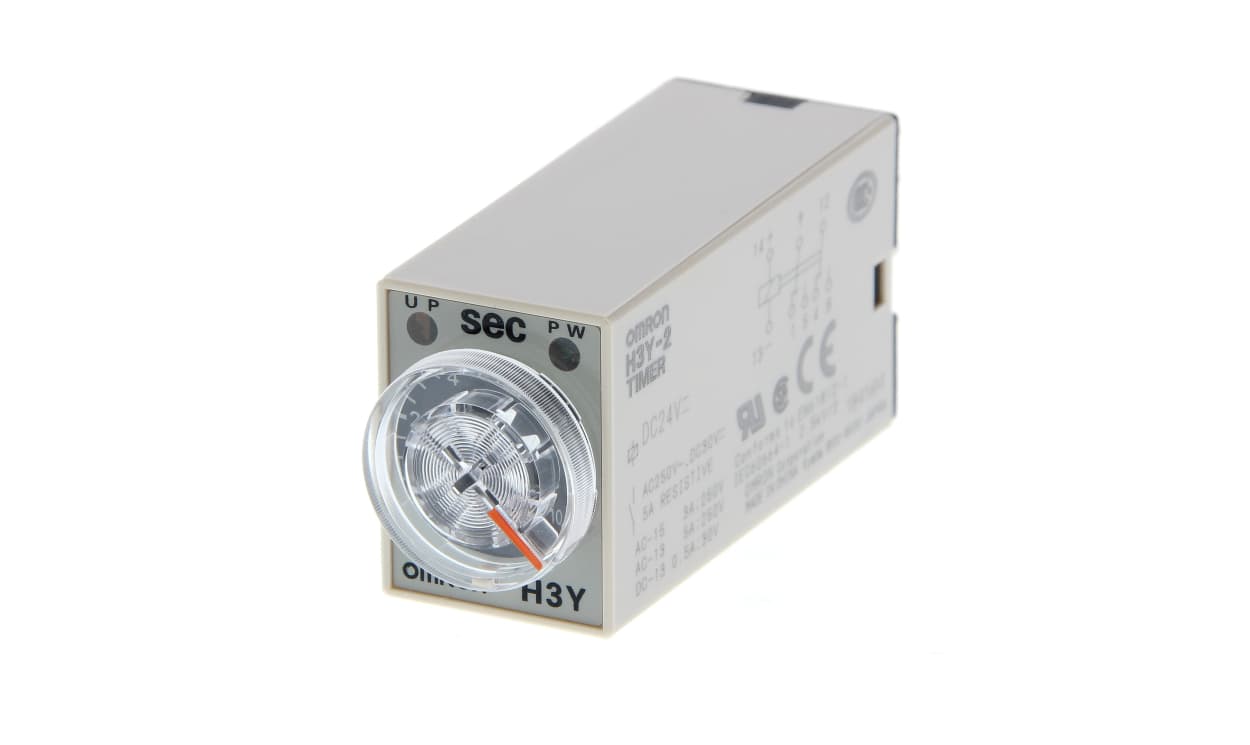

Omron H3Y-2 AC200-230 10S, H3Y-2 Series DIN Rail, Surface Mount Timer Relay, 200 → 230V ac, 8-Contact, 0.5 → 10s, 1-Function,

Name: Omron H3Y-2 AC200-230 10S, H3Y-2 Series DIN Rail, Surface Mount Timer Relay, 200 → 230V ac, 8-Contact, 0.5 → 10s, 1-Function,
Brand: OMRON
SKU: H3Y-2 AC200-230 10S
Availability: OutOfStock

Part Number : H3Y-2 AC200-230 10S

Availability: Sold out

Detailed Description
Specifications

Omron H3Y-2 Series Timer Relay, 200 to 230V AC Supply Voltage, 8-Pin Connector - H3Y-2 AC200-230 10S

This timer relay is an essential component designed for automation and control applications. With dimensions of 28mm in width, 56.6mm in depth, and 21.5mm in length, it operates within a supply voltage range of 200 to 230V AC. This versatile device supports time limit operation, making it suitable for various time-sensitive tasks.

Features & Benefits

• Time range adjustable from 0.5 to 10 seconds supports flexible applications
• Designed with 8 contacts to accommodate multiple circuits
• DPDT relay configuration ensures reversible switching capabilities
• 8-pin connector simplifies installation and connectivity
• External power supply enhances operational efficiency
• Operates in temperatures ranging from -10 °C to +50 °C for reliable performance

Applications

• Used in industrial automation for process control
• Ideal for timing operations in machinery start/stop
• Suitable for controlling lighting systems in commercial settings
• Utilised in HVAC systems for timed operation of equipment

What is the maximum current handling capability of this device?

The device is capable of handling a maximum current of 5A, making it suitable for various load requirements in automation settings.

What voltage range is acceptable for operation?

It operates optimally within a supply voltage range of 200 to 230V AC, ensuring compatibility with standard AC power systems.

How does the time limit operation benefit automation tasks?

The time limit operation allows for precise control over timings, which is crucial in processes requiring accurate delays or timed sequences.

What makes the external power supply advantageous for this relay?

An external power supply ensures consistent and reliable operation independently of the load circuit, enhancing overall system performance and safety.

Brand	Omron
Supply Voltage	200 → 230V ac
Mounting Type	DIN Rail, Surface Mount
Mode of Operation	Time Limit Operation
Time Range	0.5 → 10s
Number of Contacts	8
Number of Timer Functions	Single
Contact Configuration	DPDT
Time Increment	Seconds
Maximum Current	5 A
Maximum Voltage	230V ac
Terminal Type	8-Pin Connector
Switch Configuration	DPDT
Power Supply	External
Width	28 mm
Minimum Voltage	200V ac
Series	H3Y-2
Maximum Operating Temperature	+50°C
Depth	56.6 mm
Length	21.5 mm
