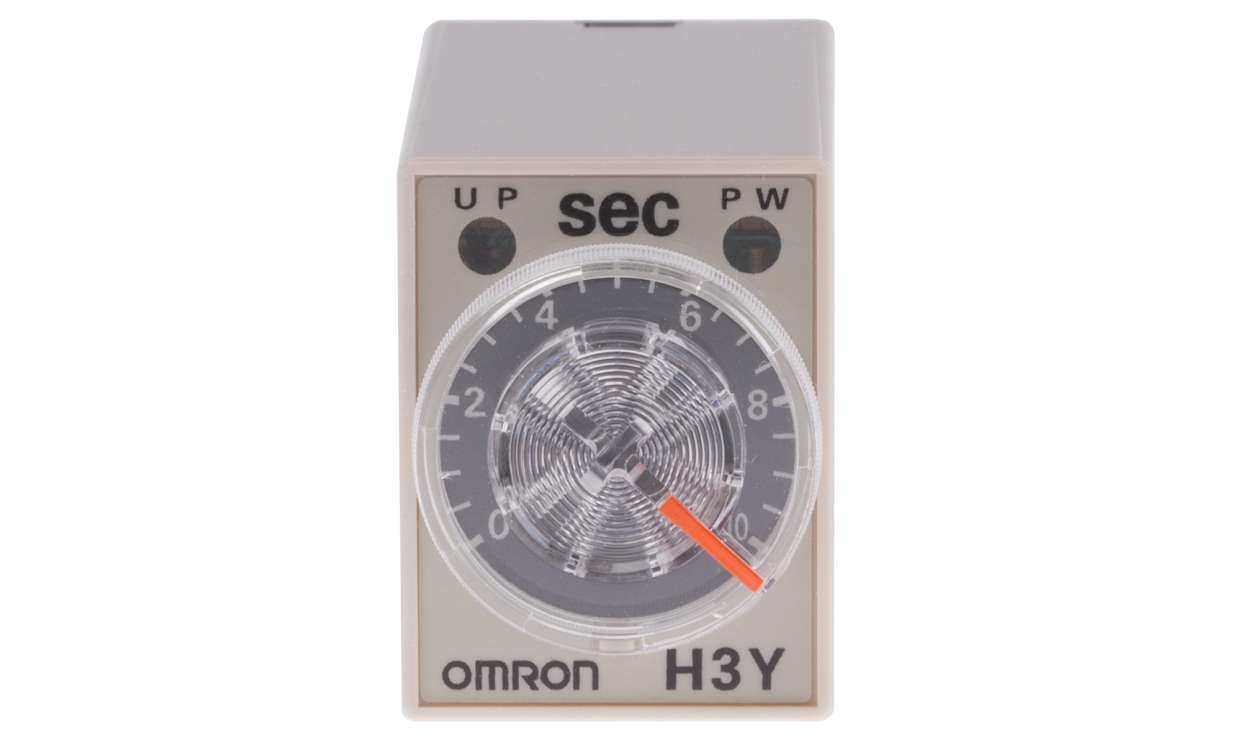

OMRON H3Y-4 AC24 10S | On-Delay Timer Relay | 24 V AC, 0.5–10 s, 4PDT

Name: OMRON H3Y-4 AC24 10S | On-Delay Timer Relay | 24 V AC, 0.5–10 s, 4PDT
Brand: OMRON
SKU: H3Y-4 AC24 10S
Availability: InStock

Part Number : H3Y-4 AC24 10S

OMRON H3Y-4 AC24 10S: a 24 V AC H3Y-4 series on-delay timer relay with timing from 0.5 to 10 s. Listed specifications for the H3Y-4 AC24 10S include 4PDT output, DIN rail or surface mounting and a 5 A maximum current rating.

Operating mode: ON Delay
Single timer function
Plug-in terminal connection
Dimensions: 21.5 mm wide, 28 mm long and 63 mm deep (as listed)
Operating temperature -10 to +50 °C

Availability: low stock

Detailed Description
Specifications
Downloads

Miniature - H3Y4

Function - 111
Pin compatible with MY power relay
Time settings adjustable with a screwdriver
All have 14 pins (rectangular format)

Standards

EN 50081-2, EN50082-2, VDE0435/P2021, VDE0110

Approvals

UL, CSA

Brand	Omron
Supply Voltage	24V ac
Mounting Type	DIN Rail, Surface Mount
Mode of Operation	ON Delay
Time Range	0.5 → 10s
Number of Contacts	4
Number of Timer Functions	Single
Contact Configuration	4PDT
Time Increment	Seconds
Maximum Current	5A
Maximum Voltage	250V ac
Switch Configuration	4PDT
Terminal Type	Plug In
Width	21.5mm
Power Supply	External
Series	H3Y-4
Maximum Operating Temperature	+50°C
Depth	63mm
Length	28mm
Minimum Operating Temperature	-10°C
