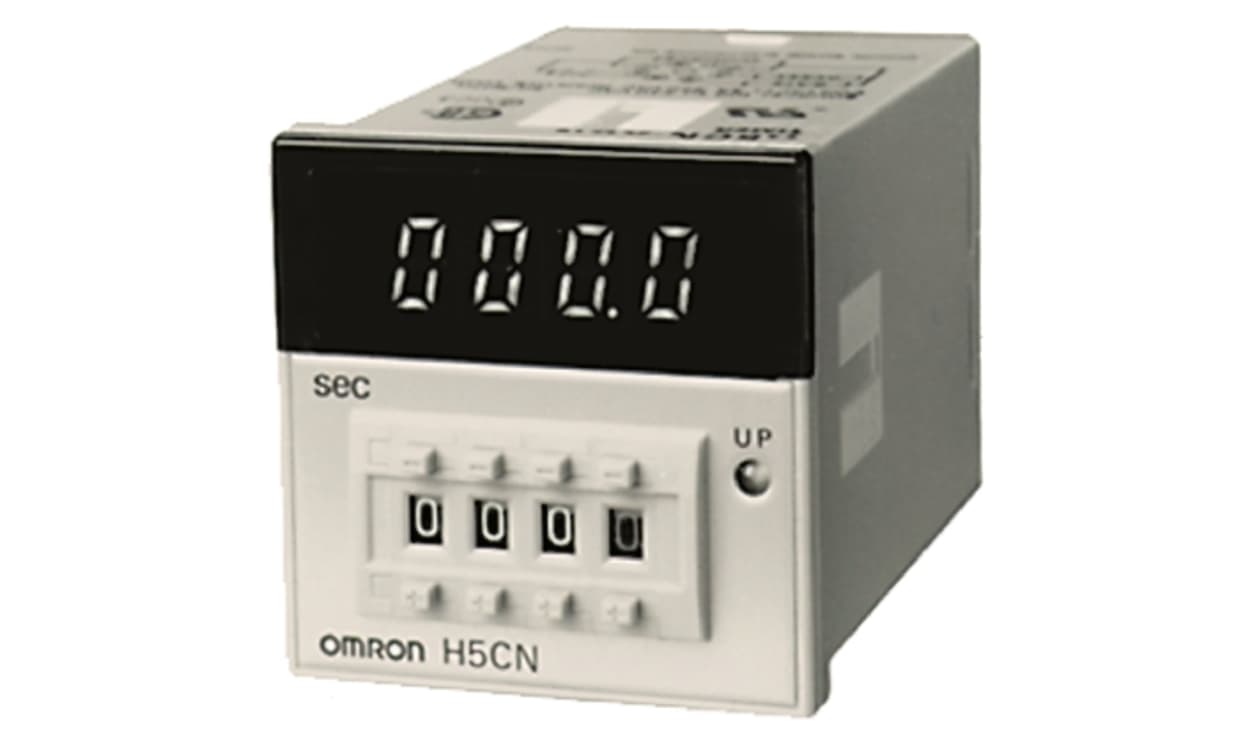

OMRON H5CN-YCN DC12-48 | On-Delay Timer Relay | 12–48 V DC, 1 s–99 min 59 s, SPDT

Name: OMRON H5CN-YCN DC12-48 | On-Delay Timer Relay | 12–48 V DC, 1 s–99 min 59 s, SPDT
Brand: OMRON
SKU: H5CN-YCN DC12-48
Availability: InStock

Part Number : H5CN-YCN DC12-48

For 12 to 48 V DC control circuits, the OMRON H5CN-YCN DC12-48 is an H5CN series on-delay timer relay adjustable over 1 s to 99 min 59 s. The H5CN-YCN DC12-48 provides SPDT output, DIN rail, panel or surface mounting and a 3 A maximum current rating.

Operating mode: ON Delay
Single timer function
8-pin connector
Dimensions: 48 mm wide, 48 mm long and 97.4 mm deep (as listed)
Maximum operating temperature +55 °C

Availability: low stock

Detailed Description
Specifications
Downloads

H5CN Series Minature Quartz Timers

Brand	Omron
Supply Voltage	12 → 48V dc
Mounting Type	DIN Rail, Panel Mount, Surface Mount
Mode of Operation	ON Delay
Time Range	1 s → 99 min 59s
Number of Contacts	1
Number of Timer Functions	Single
Time Increment	Minutes, Seconds
Maximum Current	3A
Maximum Voltage	250V ac
Terminal Type	8-Pin Connector
Switch Configuration	SPDT
Minimum Voltage	5V dc
Width	48mm
Power Supply	External
Length	48mm
Depth	97.4mm
Minimum Current	10mA
Maximum Operating Temperature	+55°C
Series	H5CN
