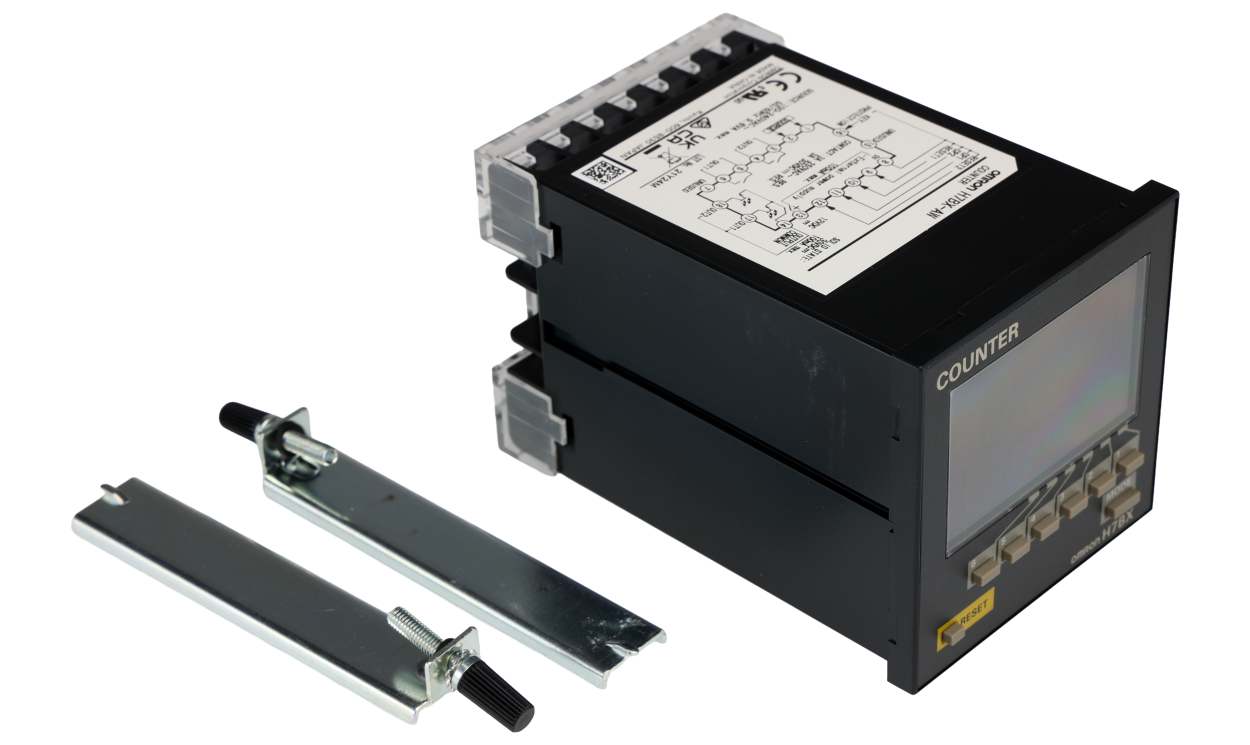

OMRON H7BX-AW | H7BX Counter | 6-Digit LCD, 10 kHz, 100 to 240 V AC

Name: OMRON H7BX-AW | H7BX Counter | 6-Digit LCD, 10 kHz, 100 to 240 V AC
Brand: OMRON
SKU: H7BX-AW
Availability: InStock

Part Number : H7BX-AW

The OMRON H7BX-AW is a flush-mount H7BX counter with a backlit six-digit LCD and bi-directional pulse counting up to 10 kHz. It runs on 100 to 240 V AC and offers SPST-NO contact and transistor outputs.

100 to 240 V AC supply, screw connection
Bi-directional pulse counting, 10 kHz maximum
Display range -99999 to 999999, backlit LCD
SPST-NO contact and transistor outputs
Automatic, external and manual reset
Operating temperature -10 to +55 °C, 250 g

Availability: low stock

Detailed Description
Specifications
Downloads

H7BX Multifunction Counter

Omrom H7BX DIN 72´72 mm multifunction counter with a bright, easy-to-view, negative transmissive LCD

Highly visible display with backlit transmissive LCD
Selectable display color (red/green) enables checking output status at a distance
Easy operation with a key for each digit
Perform all basic settings with a DIP switch
Provides a total and preset counter, batch counter, dual counter, and tachometer (See note.)
Wide range of inputs accepted for NPN/PNP inputs (multi-inputs) and 2- wire DC sensors
IP54 equivalent (front section only)

Note

The functions that can be selected depend on the model

Standards

UL, CSA, and CE marking

Warning

Be sure to read Safety Precautions

Omron H7BX Series Counter, 100 to 240V AC Supply Voltage, 6 Digits Display Range - H7BX-AW AC100-240

This counter is a multifunctional industrial measurement device designed for precise monitoring and control in various operational settings. The compact design with a DIN 72 x 72 mm configuration allows for easy flush mounting. It features a bright, easy-to-view negative transmissive LCD display for clear visibility of readings, even in dim lighting conditions.

Features & Benefits

• Supports a maximum count frequency of 10kHz for accurate measurements
• Bi-directional counting capability allows for flexible operations
• LCD display with backlighting enhances visibility in low-light environments
• Multiple reset methods ensure adaptability to various operational needs
• Accepts both voltage and no-voltage inputs for wide compatibility

Applications

• Ideal for batch counting in production lines
• Utilised in tachometer for speed measurement
• Effective in systems requiring dual counter operations for complex tasks
• Suitable for settings needing reliable preset count functionalities
• Effective for monitoring parameters in automated processes

How does the backlit display improve usability in low-light situations?

The backlit LCD ensures that users can easily read measurements and set values, enhancing safety and efficiency when monitoring operations in dimly lit environments.

What types of inputs can be used with this device?

It can accommodate both NPN/PNP inputs and two-wire DC sensors, providing flexibility in connecting various types of input devices.

What methods are available for resetting the counter?

The counter supports automatic, external, and manual reset methods, allowing users to choose the most suitable option for their operational needs and processes.

Brand	Omron
Supply Voltage	100 → 240 V ac
Count Mode	Pulse
Display Type	LCD
Function	Counter
Input Type	No Voltage, Voltage
Connection Type	Screw
Reset Method	Automatic, External, Manual
Number of Digits	6
Mounting Type	Flush Mount
Output / Interface	SPST-NO Contact, Transistor
Count Direction	Bi-Directional
Digit Height	13.5 (Count value) mm, 8 (Set value) mm
Backlighting	Yes
Maximum Count Frequency	10kHz
Display Range	-99999 → 999999
Maximum Operating Temperature	+55°C
Weight	250g
Minimum Operating Temperature	-10°C
Measurement Range	-99999 → 999999
