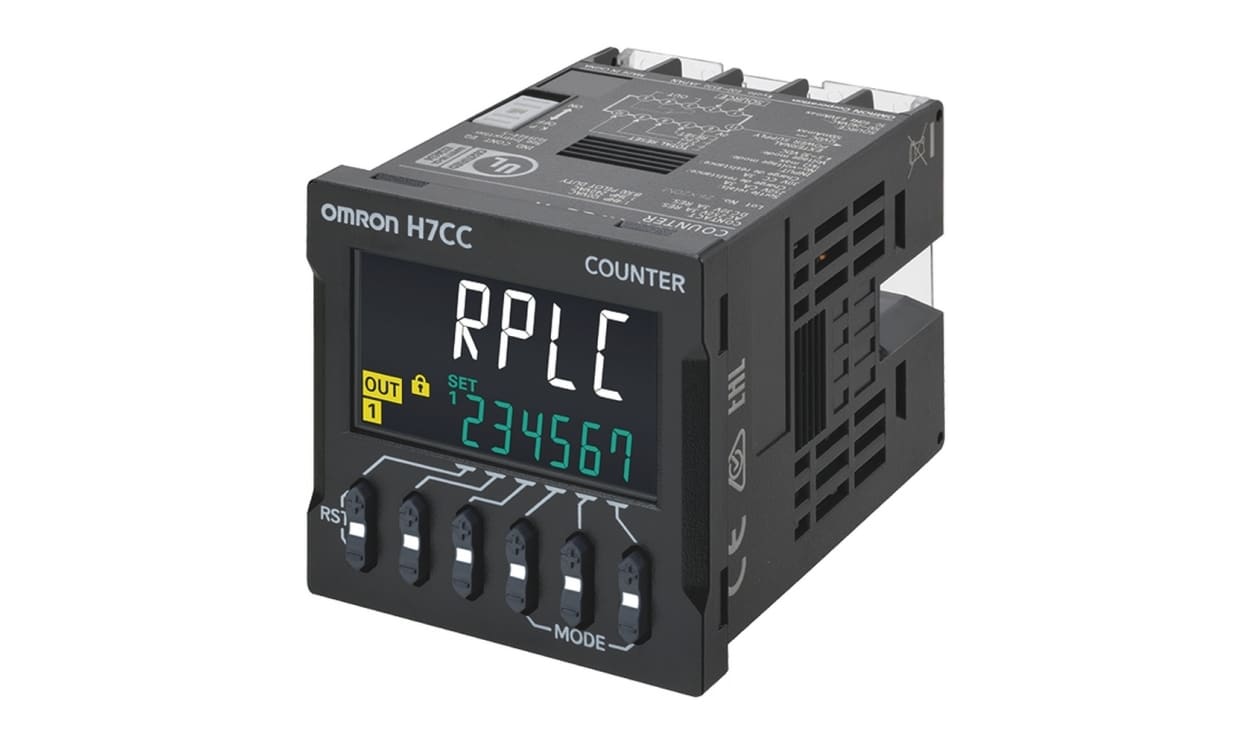

OMRON H7CC-A11D | H7CC-A Counter | 6-Digit LCD, 12 to 48 V DC / 24 V AC, DIN Rail

Name: OMRON H7CC-A11D | H7CC-A Counter | 6-Digit LCD, 12 to 48 V DC / 24 V AC, DIN Rail
Brand: OMRON
SKU: H7CC-A11D
Availability: InStock

Part Number : H7CC-A11D

Powered from 12 to 48 V DC or 24 V AC, the OMRON H7CC-A11D is an H7CC-A series counter with a backlit six-digit LCD. It uses a plug-in connection, DIN rail mounting and manual reset, and carries CE approval.

12 to 48 V DC or 24 V AC supply
Backlit 6-digit LCD, 10 mm digit height
Display range -99999 to 999999
Plug-in, DIN rail mounting, manual reset
45 x 22.2 mm cutout, 63.7 mm depth
CE, maximum operating temperature +55 °C

Availability: low stock

Detailed Description
Specifications
Downloads

Omron H7CC-A Series Digital Counter, 12 to 48V DC/24V AC Supply Voltage, DIN Rail Mount - H7CC-A11D

This digital counter offers accurate counting for various industrial applications. Featuring an LCD display, it ensures excellent visibility and user-friendly operation. Its robust design and compatibility with DIN rail mounting facilitate easy installation and reliable performance in tough environments.

Features & Benefits

• Supports a broad input voltage range for flexibility
• Manual reset method for effective control
• Displays counts clearly in a 6-digit format
• Integrated backlighting enhances visibility in low light conditions
• Plug-in connection streamlines installation and maintenance

Applications

• Utilised with machinery for accurate counting on production lines
• Suitable for monitoring equipment cycles in automation
• Employed in time tracking for mechanical systems
• Utilised in frequency monitoring for electrical operations

How does this device connect to my equipment?

It features a plug-in design that makes connection straightforward and efficient.

What is the operational temperature range for this unit?

It operates safely between -10°C and +55°C, suitable for a variety of environments.

Is the display readable in different lighting conditions?

Yes, the backlighting ensures clear visibility regardless of ambient light.

How do I reset the count after reaching the maximum value?

The counter has a manual reset method that allows easy return to zero for new counting.

Brand	Omron
Supply Voltage	12 → 48 V dc, 24 V ac
Display Type	LCD
Function	Counter
Input Type	No Voltage
Connection Type	Plug-In
Reset Method	Manual
Number of Digits	6
Mounting Type	DIN Rail
Digit Height	10 mm
Backlighting	Yes
Maximum Count Frequency	50 → 60Hz
Cutout Size	45 x 22.2 mm
Display Range	-99999 → 999999
Cutout Height	22.2mm
Series	H7CC-A
Cutout Width	45mm
Depth	63.7mm
Approvals	CE
Maximum Operating Temperature	+55°C

OMRON H7CC-A11D | H7CC-A Counter | 6-Digit LCD, 12 to 48 V DC / 24 V AC, DIN Rail

DOWNLOAD CATALOG

H7CC-A11D Brochure - Improved Design for Better Visibility and Clarity A700000012229187
