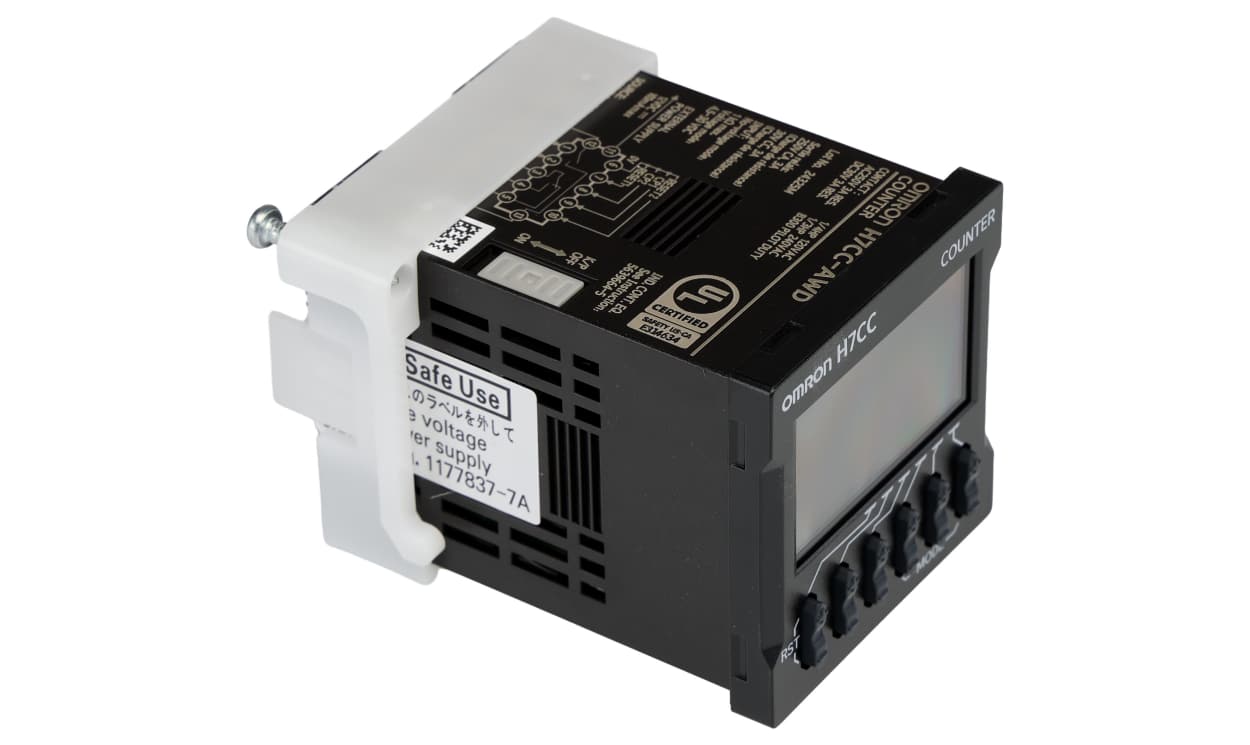

OMRON H7CC-AWD | 6-Digit Counter | Screw Terminals, 12 to 48 V DC / 24 V AC

Name: OMRON H7CC-AWD | 6-Digit Counter | Screw Terminals, 12 to 48 V DC / 24 V AC
Brand: OMRON
SKU: H7CC-AWD
Availability: InStock

Part Number : H7CC-AWD

The OMRON H7CC-AWD counter is powered from 12 to 48 V DC or 24 V AC. It has a six-digit LCD, no-voltage inputs and screw connections. Full ratings and dimensions are given in the OMRON datasheet.

12 to 48 V DC or 24 V AC supply
6-digit LCD
No-voltage input
Screw connection

Availability: low stock

Detailed Description
Specifications
Downloads

Omron H7CC Series Digital Counter, 12 to 48V DC Supply Voltage, 6 Digits Display - H7CC-AWD

This digital counter is an essential tool designed for various automation and measurement applications. With a compact depth of 78mm and a weight of just 120g, it operates efficiently within supply voltages ranging from 12 to 48 V DC and 24V AC. The counter features a user-friendly LCD display and accommodates a maximum operating temperature of +55°C, making it suitable for demanding environments.

Features & Benefits

• Offers a clear LCD display for easy readability
• Features 6-digit capabilities for detailed counting tasks
• Utilises no voltage input, simplifying installation and usage
• Equipped with a screw connection for secure wiring

Applications

• Ideal for monitoring machine cycles and production rates
• Suitable for use in industrial automation systems
• Effective in tachometer for speed measurements
• Utilised in electronic and mechanical counting tasks
• Conveniently applied in environments requiring precise digital readouts

How adaptable is this counter regarding voltage requirements?

It operates efficiently within a wide voltage range of 12 to 48 V DC and 24V AC, providing flexibility in various electrical setups.

What is the maximum frequency it can handle?

The counter supports a maximum count frequency of 50 to 60 Hz, allowing for accurate tracking in diverse applications.

Is there a specific installation type recommended for this counter?

The device features a screw connection, ensuring a stable and secure installation for reliable operation.

What temperature ranges can it withstand during operation?

It can function optimally in environments with temperatures ranging from -10°C to +55°C, making it suitable for various settings.

Can the backlighting feature be adjusted?

The backlighting is designed to improve visibility in dim conditions

however, there are no adjustments available, as it operates automatically as needed.

Brand	Omron
Supply Voltage	12 → 48 V dc, 24 V ac
Display Type	LCD
Input Type	No Voltage
Function	Counter
Connection Type	Screw
Number of Digits	6
Maximum Count Frequency	50 → 60Hz

OMRON H7CC-AWD | 6-Digit Counter | Screw Terminals, 12 to 48 V DC / 24 V AC

DOWNLOAD CATALOG

H7CC-AWD Brochure - H7CC Series A700000014360256
