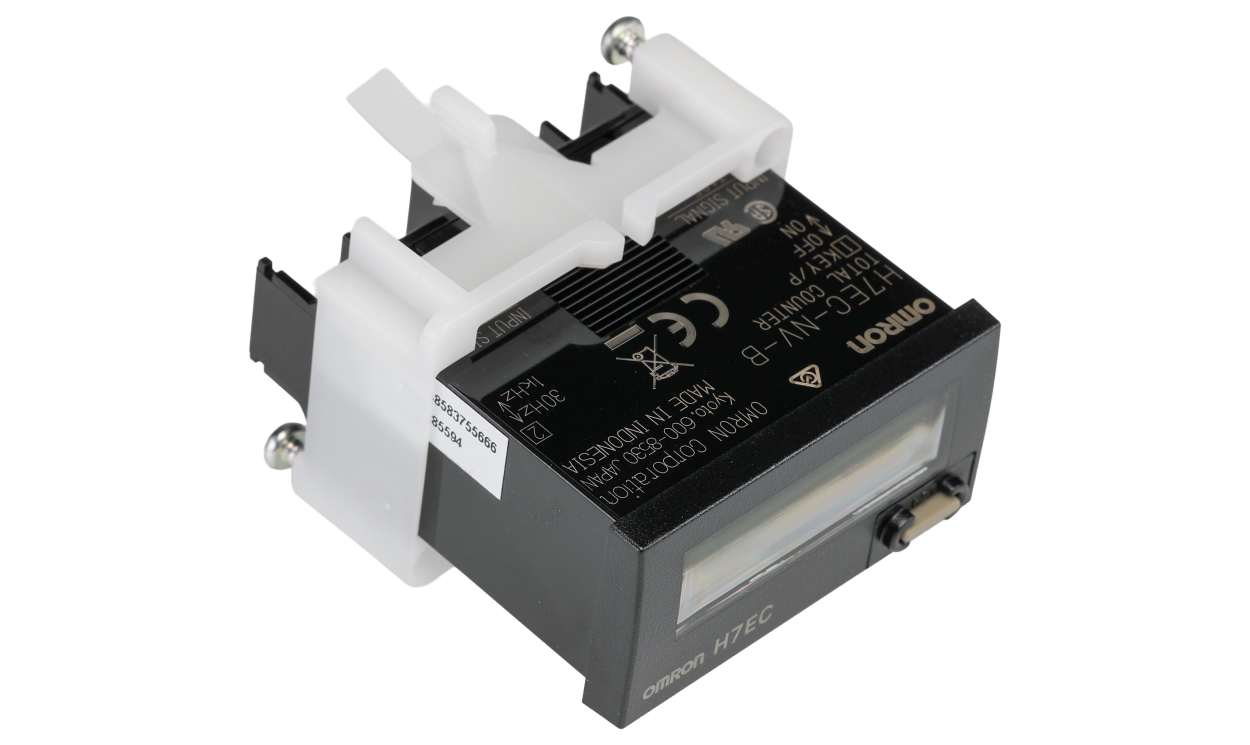

OMRON H7EC-NV-B | H7EC Counter | 8-Digit LCD, Voltage Input, 1 kHz, Up Count

Name: OMRON H7EC-NV-B | H7EC Counter | 8-Digit LCD, Voltage Input, 1 kHz, Up Count
Brand: OMRON
SKU: H7EC-NV-B
Availability: InStock

Part Number : H7EC-NV-B

OMRON's H7EC-NV-B is an H7EC up counter with voltage input and an eight-digit LCD showing 0 to 99999999. It counts at up to 1 kHz and is panel mounted with screw connections.

Voltage input, up counting
1 kHz maximum count frequency
8-digit LCD, 8.6 mm digits
Display range 0 to 99999999
Panel mount, screw connection, manual reset
60 g, -10 to +55 °C

Availability: low stock

Detailed Description
Specifications
Downloads

Omron H7EC Series Counter, 4.5 to 30V Supply Voltage, 8 Digits Display - H7EC-NV-B

This counter is designed for precise counting applications within industrial settings. With an 8-digit LCD counter display, it operates on a supply voltage ranging from 4.5 to 30 V. This panel mount counter, measuring 48.5mm in depth, features a manual reset mechanism and is capable of counting up to 99,999,999. Its robust design ensures reliability in environments with temperatures between -10°C to +55°C.

Features & Benefits

• Displays counts clearly on an 8-digit LCD screen
• Supports voltage inputs from 4.5 to 30 V for versatility
• Manual reset functionality enhances user control
• Screw connection facilitates easy wiring and installation
• Handles a maximum count frequency of 1kHz for high-speed counting

Applications

• Used with industrial machinery for production counting
• Suitable for inventory management and stock control
• Ideal for use in assembly line monitoring
• Utilised in packaging processes for accurate cycle counting

How does the voltage range affect the device's performance?

The device operates efficiently within a voltage range of 4.5 to 30 V, allowing flexibility when integrated into different systems. This adaptability ensures consistent performance across various applications dependent on power supply variations.

What is the significance of the maximum count frequency?

A maximum count frequency of 1kHz enables the device to capture fast-paced counting events, making it suitable for operations requiring rapid data collection without performance degradation.

How does the manual reset feature function in practice?

The manual reset function allows users to clear the count quickly and accurately, making it easier to start new counting tasks or to calibrate counts at the beginning of shifts, ensuring precise tracking at all times.

Omron Panel Mounting 24 x 48

All units are resettable. Panel cut out is 22 x 45 with the front fascia sealed to IP65 and has an operating temperature range of -10 to +55°C

Brand	Omron
Display Type	LCD
Input Type	Voltage
Function	Counter
Connection Type	Screw
Reset Method	Manual
Number of Digits	8
Mounting Type	Panel Mount
Count Direction	Up
Digit Height	8.6 mm
Maximum Count Frequency	1kHz
Display Range	0 → 99999999
Measurement Range	0 → 99999999
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+55°C
Weight	60g
Series	H7EC

OMRON H7EC-NV-B | H7EC Counter | 8-Digit LCD, Voltage Input, 1 kHz, Up Count

DOWNLOAD CATALOG

H7EC-NV-B Datasheet 0900766b813786f9
