OMRON H7ET-N | H7E Time Counter | 7-Digit LCD, Self-Powered, No-Voltage Input

Name: OMRON H7ET-N | H7E Time Counter | 7-Digit LCD, Self-Powered, No-Voltage Input
Brand: OMRON
SKU: H7ET-N
Availability: InStock

Part Number : H7ET-N

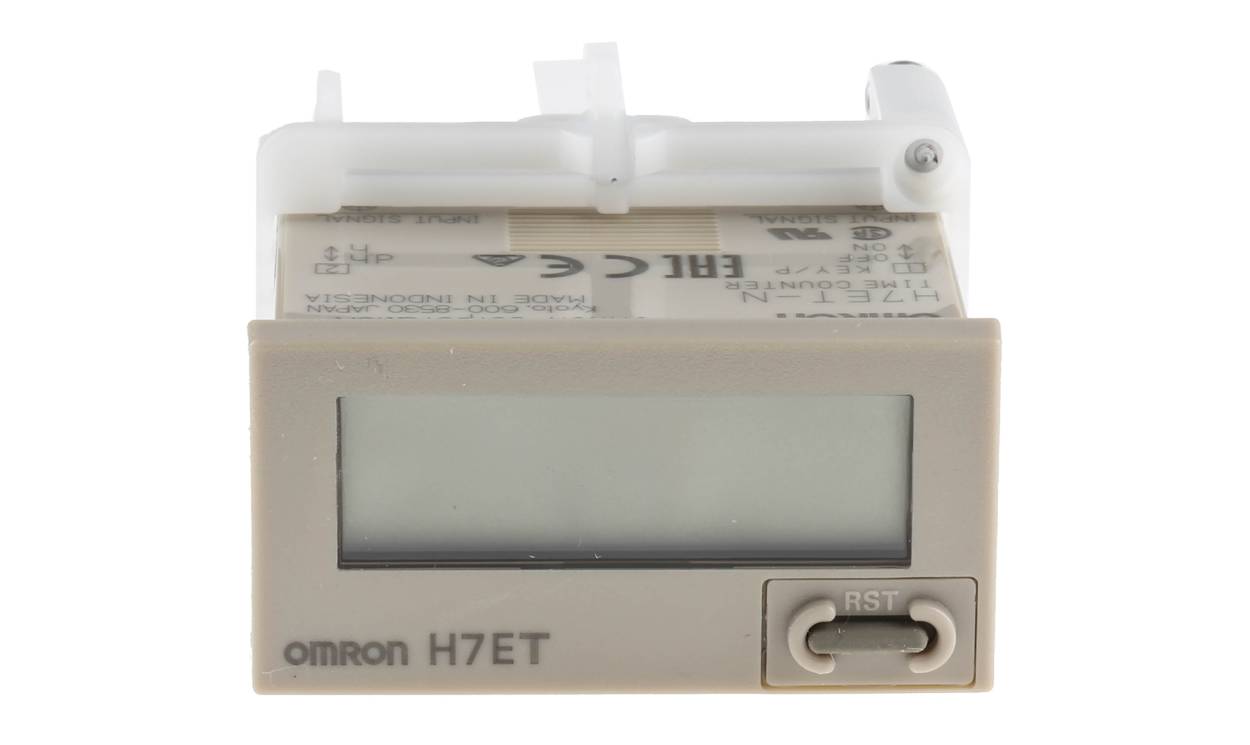

The OMRON H7ET-N is a self-powered H7E time counter in a 1/32 DIN (48 x 24 mm) grey case, with a seven-digit LCD and no-voltage input. It displays up to 999999.9 h or 3999 d 23.9 h.

Self-powered time counter, no-voltage input
7-digit LCD, 8.6 mm digits, no backlight
999999.9 h / 3999 d 23.9 h display
1/32 DIN (48 x 24 mm), grey case, flush mount
Screw connection, manual reset, 60 g
Operating temperature -10 to +55 °C

Availability: low stock

Detailed Description
Specifications
Features
Downloads

Omron H7E Series Counter, LCD Display, Flush Mount - H7ET-N

This counter is a digital timer designed for automation and industrial applications. It features a compact design suitable for flush mounting and operates within a range of 4.5 to 30V DC supply voltage. The LCD displays a clear 7-digit readout of time ranges up to 3999 days and 23.9 hours. With a weight of 60g and dimensions of 48.5mm in depth, it fits well in various control panels.

Features & Benefits

• High operating temperature of +55°C ensures durability
• Screw connection mechanism allows for secure wiring
• No-voltage input facilitates versatile integration
• Compact size ideal for space-constrained installations

Applications

• Ideal for timekeeping in manufacturing processes
• Used for monitoring duration in assembly lines
• Utilised in environments with varying voltage inputs

Will it display negative or decimal counts?

No, it only shows positive values in specified ranges.

Is it easy to reset the timer?

Yes, a manual reset key is provided for convenience.

Can it function without an external power supply?

Yes, it operates on a built-in battery for offline use.

Brand	Omron
Supply Voltage	4.5 → 30 V dc
Display Type	LCD
Input Type	no-V input
Function	Timer
Connection Type	Screw
Reset Method	Manual
Number of Digits	7
Mounting Type	Flush Mount
Digit Height	8.6 mm
Backlighting	No
Display Range	0 → 3999 d 23.9 h, 0 → 999999.9
Depth	48.5mm
Series	H7E
Maximum Temperature	'+55°C
Weight	60g
Minimum Operating Temperature	-10°C
Measurement Range	0 → 3999 d 23.9 h, 0 → 999999.9
Maximum Operating Temperature	+55°C
