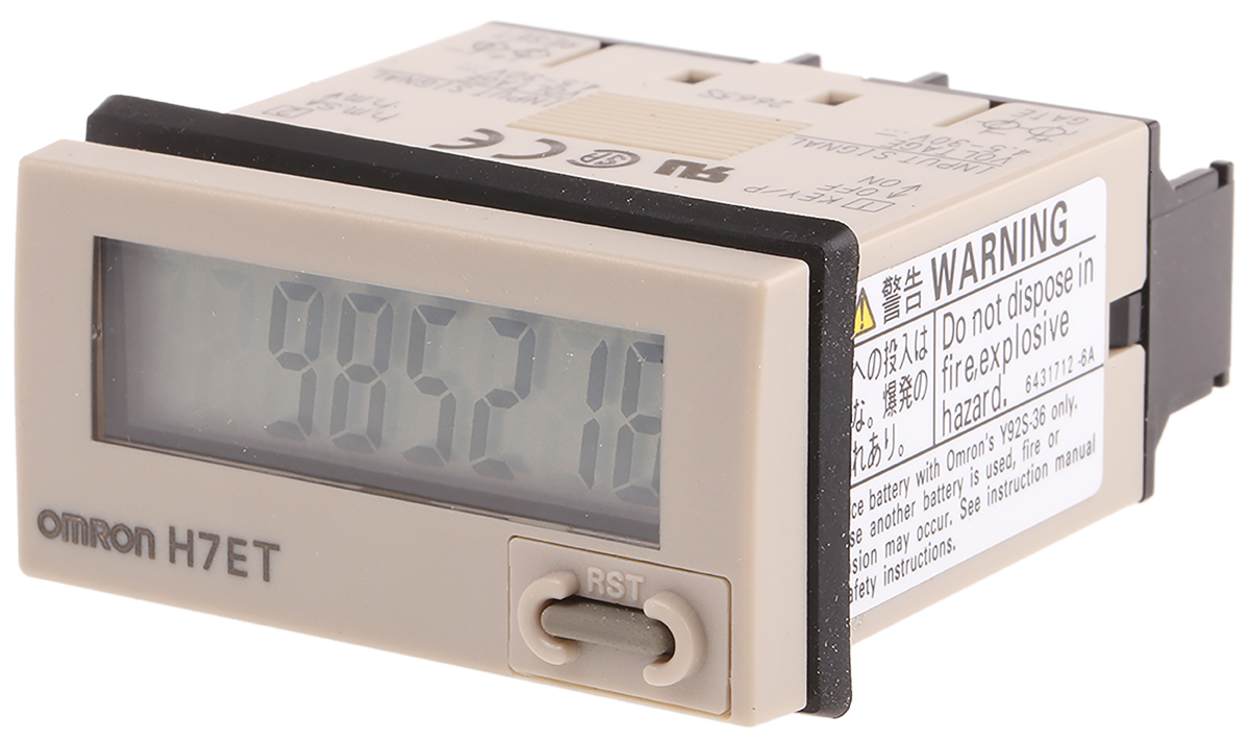

OMRON H7ET-NV1-B | H7E Counter | 7-Digit LCD, Voltage Input, 4.5 to 30 V DC

Name: OMRON H7ET-NV1-B | H7E Counter | 7-Digit LCD, Voltage Input, 4.5 to 30 V DC
Brand: OMRON
SKU: H7ET-NV1-B
Availability: InStock

Part Number : H7ET-NV1-B

OMRON's H7ET-NV1-B is an H7E unit with voltage input and a seven-digit LCD covering 0 to 999 h 59 m 59 s and 0 to 9999 h 59.9 m. The listed supply is 4.5 to 30 V DC.

4.5 to 30 V DC supply
Voltage input
0 to 999 h 59 m 59 s / 0 to 9999 h 59.9 m
Seven-digit LCD, 8.6 mm digits
Flush mount, screw connection, manual reset
60 g, -10 to +55 °C

Availability: low stock

Detailed Description
Specifications
Downloads

Omron H7E Series Counter, 7 Digits Display Range, 4.5 to 30 V DC Supply Voltage - H7ET-NV1-B

This counter is a robust and compact device designed for a variety of industrial applications. It features a self-powered design with a 7-digit display that allows users to monitor time ranges from 0 to 999h 59m 59s or count up to 9999h 59.9m. With a voltage input type ranging from 4.5 to 30 V DC, this unit is ideal for integration into automation systems.

Features & Benefits

• High visibility 8.6mm LCD display enhances usability
• Compatible with PNP/NPN universal DC voltage inputs for versatility
• Front face rated IP66/NEMA4 for demanding environments
• Compact design fits flush mount installations easily
• Long battery life of up to 7 years minimises maintenance

Applications

• Used for precise time tracking in manufacturing processes
• Ideal for duration measurements in quality control checks
• Utilised in assembly lines for operational time statistics
• Suitable for task monitoring in electrical and mechanical industries

What power supply specifications should be adhered to for effective performance?

It requires a supply voltage within 4.5 to 30 V DC. It's crucial to ensure that the voltage falls within this range to prevent potential damage to the unit. Users should also consider using a consistent power supply to maintain battery longevity.

How does the manual reset feature benefit usability in industrial settings?

The manual reset allows for quick adjustments to monitored values, enabling users to accurately track various timing cycles without complications. It provides the flexibility needed for operations that require frequent resets.

What kind of environmental conditions can it withstand?

Designed for high-temperature operations, it operates effectively in environments up to +55 °C and down to -10 °C, making it suitable for various settings, including harsh industrial conditions.

Omron Panel Mounting 24 x 48

All units are resettable. Panel cut out is 22 x 45 with the front fascia sealed to IP65 and has an operating temperature range of -10 to +55°C

Brand	Omron
Supply Voltage	4.5 → 30 V dc
Display Type	LCD
Function	Counter
Input Type	Voltage
Connection Type	Screw
Reset Method	Manual
Number of Digits	7
Mounting Type	Flush Mount
Digit Height	8.6 mm
Display Range	0 → 999 h 59 m 59 s, 0 → 9999 h 59.9 m
Weight	60g
Series	H7E
Measurement Range	0 → 999 h 59 m 59 s, 0 → 9999 h 59.9 m
Maximum Operating Temperature	+55°C
Minimum Operating Temperature	-10°C
