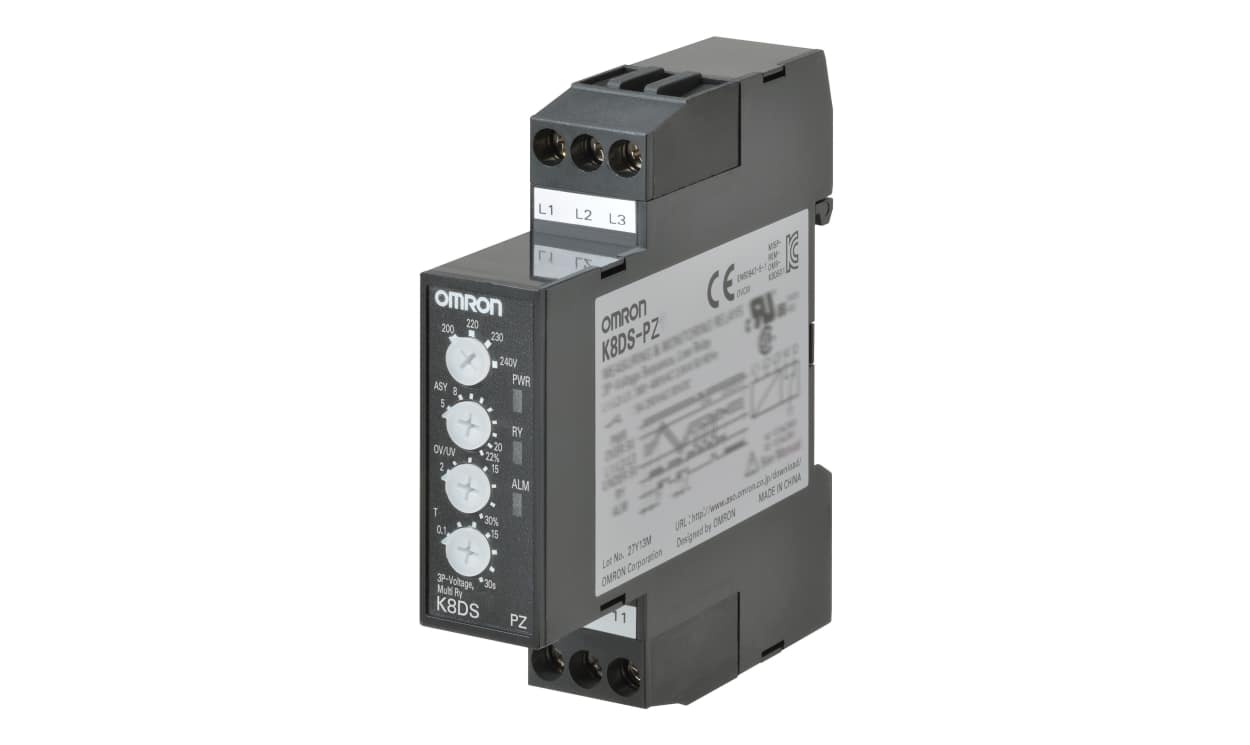

OMRON K8DS-PZ2 | Phase and Voltage Monitoring Relay | 3 Phase, SPDT

Name: OMRON K8DS-PZ2 | Phase and Voltage Monitoring Relay | 3 Phase, SPDT
Brand: OMRON
SKU: K8DS-PZ2
Availability: InStock

Part Number : K8DS-PZ2

For three-phase phase and voltage supervision, the OMRON K8DS-PZ2 relay provides undervoltage detection. The K8DS-PZ2 switches an SPDT output.

Detection: Undervoltage
Contacts: SPDT
Series: K8DS

Availability: low stock

Detailed Description
Specifications
Downloads

The Omron K8DS-PZ series are three-phase voltage, asymmetry, and phase-sequence phase-loss relay, ideal for monitoring 3-phase power supplies for industrial facilities and equipment. Monitor undervoltages, overvoltages, voltage asymmetry, phase sequence, and phase loss in three-phase three-wire circuits with one unit. Its relay status can be monitored using LED indicator.

Operating temperature ranges between -20°C to +60°C

Brand	Omron
Monitoring Application	Phase, Voltage
Electrical Phase	3
Contact Configuration	SPDT
Voltage Sensitivity	Undervoltage
Series	K8DS

OMRON K8DS-PZ2 | Phase and Voltage Monitoring Relay | 3 Phase, SPDT

DOWNLOAD CATALOG
