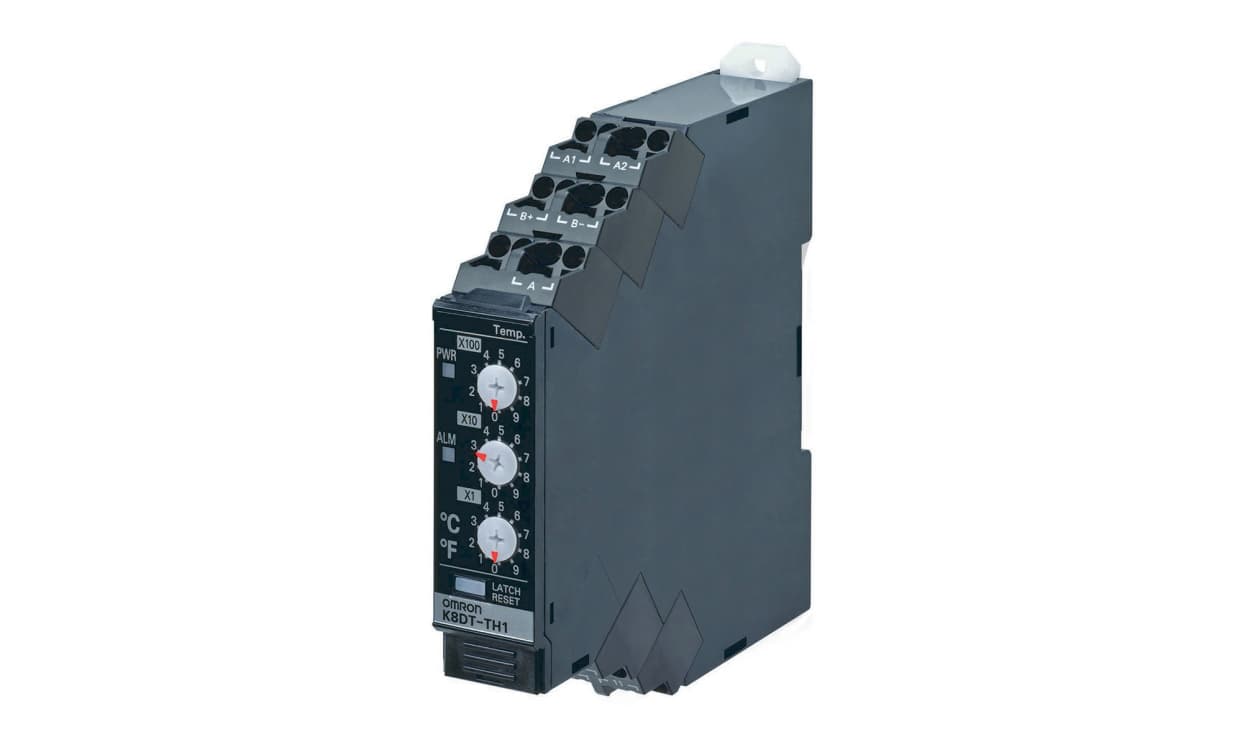

OMRON K8DT-TH2CA | Temperature Monitoring Relay | 0 to 1800 °C, SPDT, DIN Rail

Name: OMRON K8DT-TH2CA | Temperature Monitoring Relay | 0 to 1800 °C, SPDT, DIN Rail
Brand: OMRON
SKU: K8DT-TH2CA
Availability: InStock

Part Number : K8DT-TH2CA

For temperature supervision, the OMRON K8DT-TH2CA relay provides a 0 to 1800 °C sensing range, plus overtemperature detection. The K8DT-TH2CA switches an SPDT output and mounts on DIN rail in a 17.5 mm wide housing.

Temperature sensing range: 0 to 1800 °C
Detection: Overtemperature
Contacts: SPDT
Terminals: Push In
Dimensions: 90 x 17.5 x 90 mm
Operating temperature: -20 to +60 °C

Availability: low stock

Detailed Description
Specifications
Downloads

K8DT-TH Temperature Monitoring Relays

Omron K8DT-TH temperature monitoring relay, ideal to prevent heater overheating. Featuring a self-latching output to contribute to safe equipment operation.

Set the temperature with simple rotary switches
Connect a thermocouple or platinum resistance thermometer.
Width of 17.5 mm to reduce space required in panels.
Push-In Plus Terminal that reduce wiring work.
Double-insertion holes for crossover wiring (all terminals).

K8DT-TH Self-Latching Temperature Monitoring Relay.

• Downsize control panels.
• Reduced wiring.
• Detects errors in Motors and other equipment.
• Use in either over current or under current mode.
• Function as an alarm.
• Set threshold values.
• Alarm output can be set as a relay or transistor output.
• Input signal – Voltage, current, water level electrode and temperature (thermocouple or platinum resistance thermometer) can be input.
• Lower power consumption.
• Side by side mounting is possible.
• Long term contact reliability.
• Reliable in poor noise environments.
• Slim profile 17.5 mm

K8DT-TH2CA Self-Latching Temperature Relay Thermocouple.

• Power supply 100 V ac to 240 V ac/dc.
• Thermocouple K, J, T, E, B, R, S, PLII.
• SPDT Contact output.
• Self-latching.
• Prevents heater overheating.
• Three rotary DIP switches.
• Current capacity 10 A (per pole)
• Insertions 50 times.

Features and Benefits.

• Automatic reset
• Green LED Power (PWR) power
• Red LED output (ALM) alarm
• One SPDT contact relay.
• DIN Rail Mounted or Screw Mounted.
• Weight 100 g
• Case material PC, UL 94 V-0.
• Colour N1.5
• Protection IP20 (terminals)

What is a Monitoring / Measuring Relay?

A monitoring / measuring relay is a protective control device, various types are available suiting what you wish to monitor. The relays receive input signals then monitor them and then output an alarm signal when a set value is reached (alarm relays). The relays protect your equipment against over voltage and over current faults. Monitoring relays monitor AC power supplies, voltage and current, analogue signals detecting unusual activity in equipment against set alarm thresholds.

Types of Monitoring Relays Available?

• Motor protection relays
• Temperature monitoring relays
• Water level control relays
• Voltage
• Current

Standards

EN61010-1, EN 61326-1, UL 61010-1 IP 20 Terminals

Omron K8DT Series Control Relays

Omron K8DT measuring and monitoring relays are part of the Value Design for Panel concept that takes control panel design and manufacturing to a new level. The K8DT series protect important equipment from damage using various measuring and monitoring relays that conform to international safety standards. Low power consumption and low heat generation design offer a long service life.

Space Saving

The K8DT series can help downsize control panels by reducing the width between wiring ducts and void panel space. The slim body allows space to mount more devices in the same size of control panel to increase control panel functionality.

Push-In Plus Terminals

Push-In Plus terminal blocks on all K8DT relays reduce the time and work involved in wiring. The Push-In Plus terminals allow solid and stranded wires with pin terminals or ferrules to be inserted without the need for tools.

Brand	Omron
Monitoring Application	Temperature
Contact Configuration	SPDT
Mounting Type	DIN Rail
Temperature Sensing Range	0 → +1800°C
Temperature Sensitivity	Overtemperature
Series	K8DT-TH
Minimum Operating Temperature	-20°C
Minimum Temperature Sensed	0°C
Maximum Operating Temperature	+60°C
Number of Poles	1
Height	90mm
Maximum Temperature Sensed	+1800°C
Operating Temperature Range	+60°C
Length	90mm
Dimensions	90 x 17.5 x 90mm
Terminal Type	Push In
Width	17.5mm
