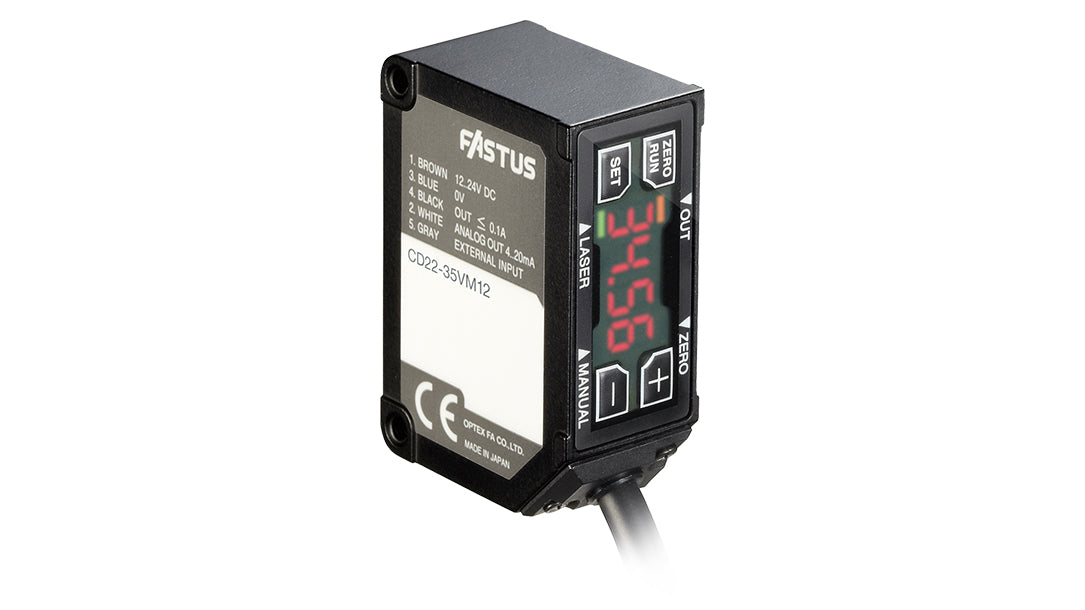

OPTEX FA CD22-35VM12 | Compact Laser Displacement Sensor | 35 ±15 mm, 0–10 V, Pigtail
Part Number : CD22-35VM12
The OPTEX FA CD22-35VM12 is a short-range CD22 compact laser displacement sensor measuring 35 ±15 mm with analogue voltage output (0 to 10 V) in a pigtail version. Repeat accuracy for the CD22-35VM12 is 6 μm over a 30 mm full scale. Like the rest of the CD22 Series, the CD22-35VM12 packs the amplifier and a 4-digit display into an 18 × 31 × 44 mm body.
- CD22-35VM12 spot size approx. 0.45 × 0.8 mm
- CD22-35VM12 linearity ±0.1% F.S. at 35 ±15 mm
- Red laser, 655 nm, on the CD22-35VM12
- CD22-35VM12: 0 to 10 V, output impedance 100 Ω
- CD22-35VM12 pigtail type rated IP67 including pigtail joint
For pricing, please contact our experts.
