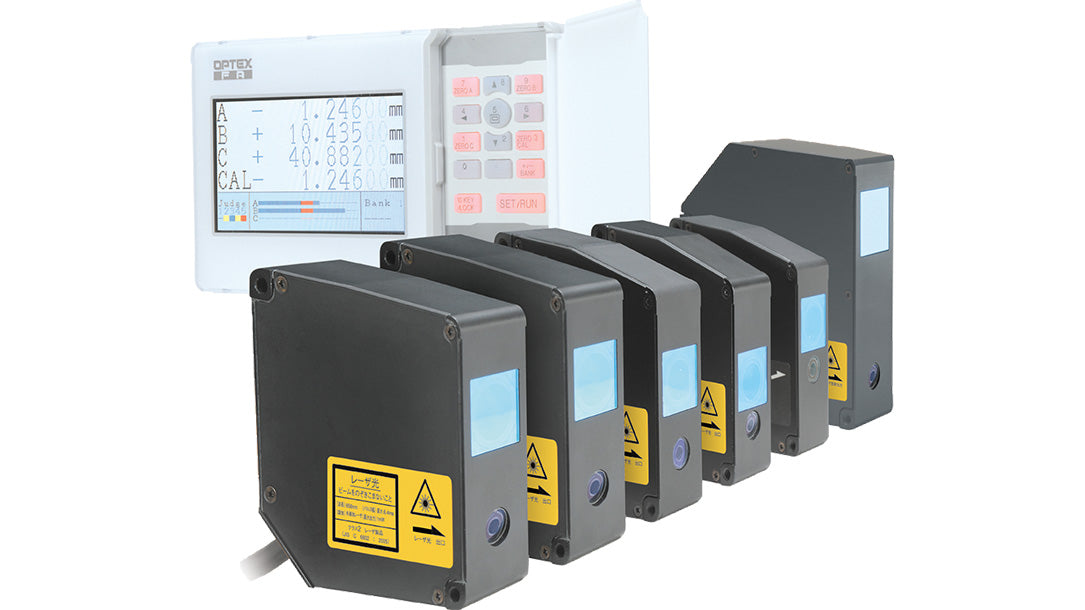

OPTEX FA CD5-W2000 | Laser Displacement Sensor Head | 2000 ±500 mm, Diffuse, Wide Beam
Part Number : CD5-W2000
The OPTEX FA CD5-W2000 is a wide-beam, diffuse-reflective sensor head from the CD5 multi-unit laser displacement range, covering 2000 ±500 mm with a spot size of about 2,100 x 7,800 μm. Up to three heads such as the CD5-W2000 can share one CD5 amplifier for multi-point checks like thickness, height difference and parallelism.
- Measurement range: 2000 ±500 mm
- Linearity: ±0.1% of F.S. (F.S. = 1,000 mm)
- Spot size: Approx. 2,100 x 7,800 μm
- Repeat accuracy: 30 μm
- Sampling period selectable from 100 μs to 3,200 μs or AUTO
For pricing, please contact our experts.
