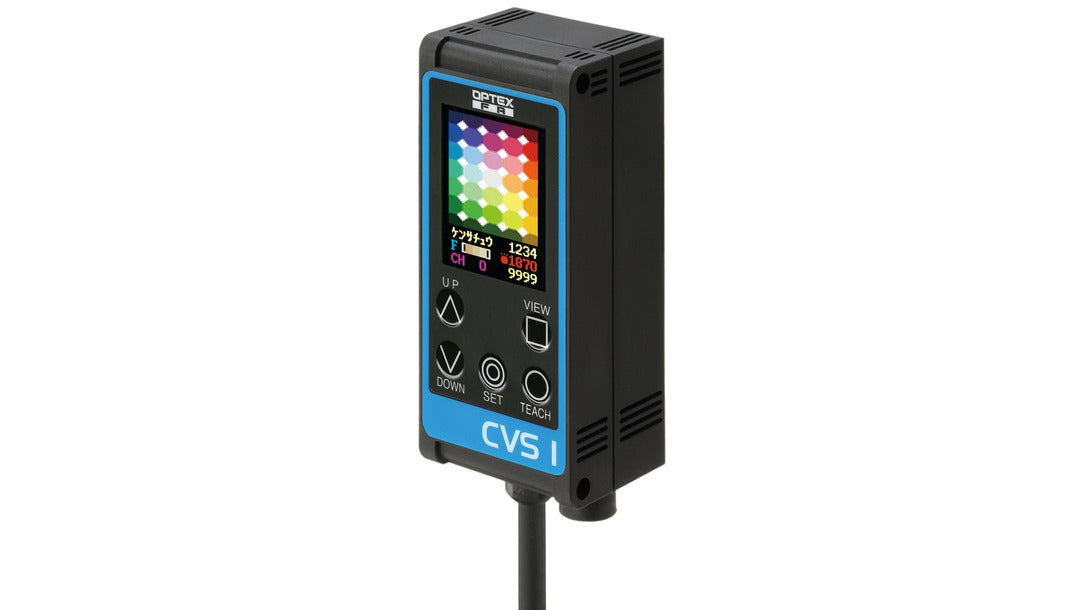

OPTEX FA CVS1-N21-RA | Standard Colour Sensor | Narrow view, 35±4 mm WD
Built as a narrow view type, the CVS1-N21-RA from OPTEX FA covers a working distance of 35±4 mm; its field of view is 17 x 20 mm (±10%). In the CVS1-RA Series, camera, LED lighting, display and controller share one IP67 housing, and colour is checked pixel by pixel using hue.
- Type: Narrow view type
- Working distance: 35±4 mm
- Field of view: 17 x 20 mm (±10%)
- Camera, LED lighting, display and controller in one IP67 housing
- Colour judged from the hue of each pixel
- Specifications
| Part Number | CVS1-N21-RA |
| Brand | OPTEX FA |
| Series | Standard Color Sensors CVS1-RA Series |
| Light Source | White LED x 12, built-in |
| Resolution | 8 x 16 to 208 x 236 |
| Supply Voltage | 12 to 24 V DC ±10% |
| Sensor Type | Standard Colour Sensor |
| Model Type | Narrow view type |
| Working Distance | 35±4 mm |
| Field of View | 17 x 20 mm (±10%) |
| Image Sensor | 330,000-pixel CMOS colour |
| Power Consumption | Max. 120 mA at 24 V DC |
| Outputs | 2 x open collector, max. 100 mA |
| Operating Temperature | 0 to 40 °C (no condensation) |
