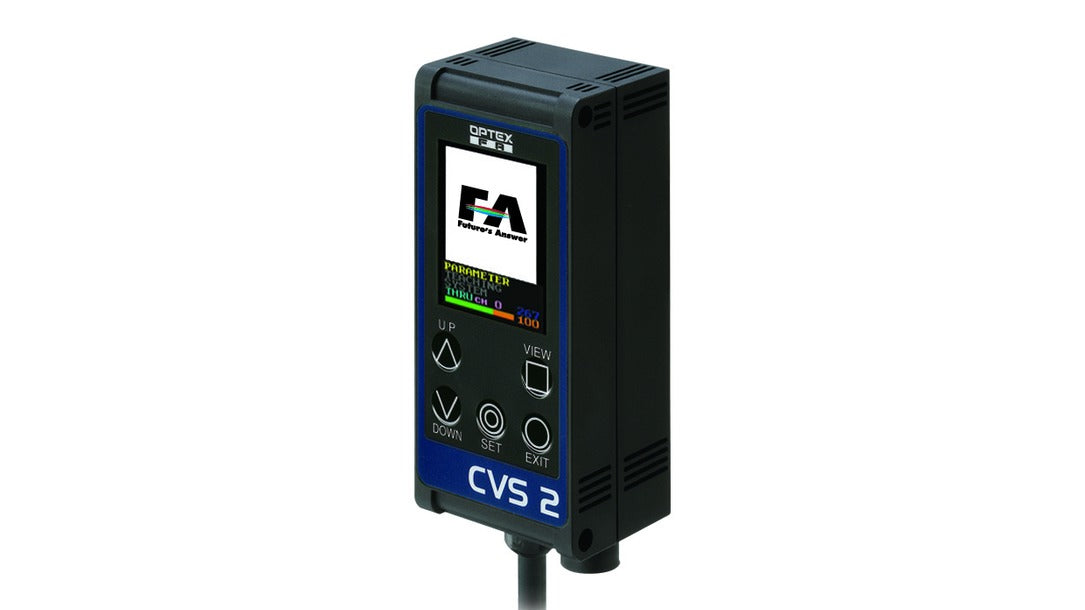

OPTEX FA CVS2-N40-RA | Colour and Pattern Matching Sensor | Macro view, 50-100 mm WD
OPTEX FA offers the CVS2-N40-RA as a macro view type with a 50 to 100 mm working distance and a 50 x 65 to 100 x 115 mm field of view. In the CVS2-RA Series, the camera, LED lighting, display and controller sit in one housing, and up to 15 banks can be stored.
- Type: Macro view type
- Working distance: 50 to 100 mm
- Field of view: 50 x 65 to 100 x 115 mm
- Setup and image data downloadable to PC (CVS-C2C cable)
- All-in-one IP67 construction
- Specifications
| Part Number | CVS2-N40-RA |
| Brand | OPTEX FA |
| Series | Color and Pattern Matching Sensors CVS2-RA Series |
| Light Source | White LED x 12, built-in |
| Resolution | 8 x 16 to 200 x 240 |
| Supply Voltage | 12 to 24 V DC ±10% |
| Sensor Type | Colour and Pattern Matching Sensor |
| Model Type | Macro view type |
| Working Distance | 50 to 100 mm (1.97 to 3.94 in) |
| Field of View | 50 x 65 to 100 x 115 mm |
| Image Sensor | 330,000-pixel CMOS colour |
| Power Consumption | Max. 140 mA at 24 V DC |
| Outputs | 2 x open collector, max. 100 mA |
| Operating Temperature | 0 to 40 °C (no condensation) |
