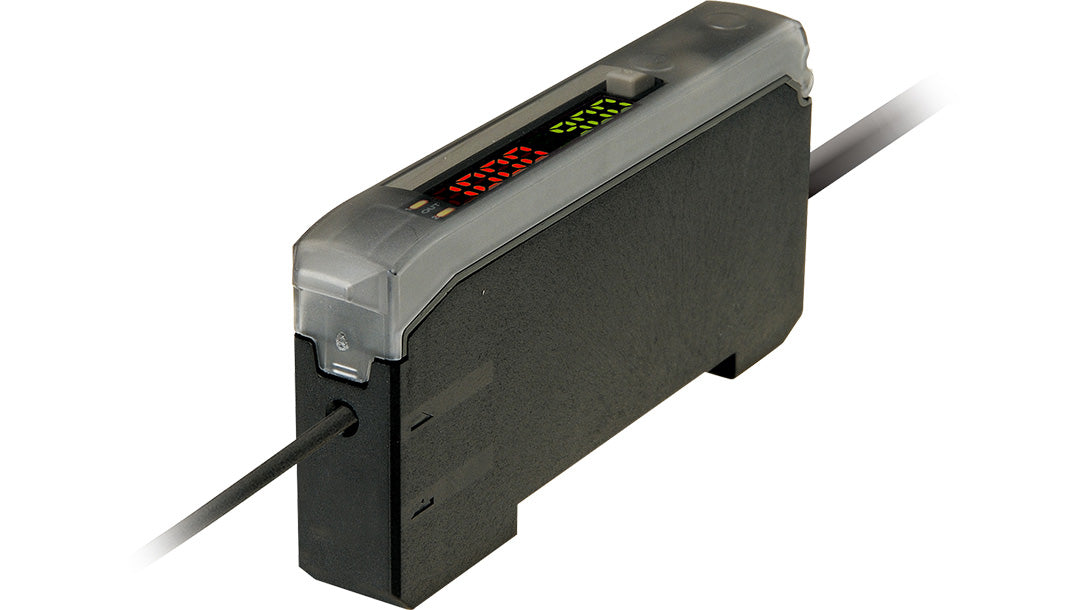

OPTEX FA MDF-HTN | Lighting Monitoring Sensor Amplifier | High Sensitivity, 10-1,500 lx, 12-24 VDC
Part Number : MDF-HTN
The OPTEX FA MDF-HTN is the high-sensitivity stand-alone amplifier of the MDF Series, covering 10 to 1,500 lx with a white light source. By comparison, the normal-gain MDF-TN covers 300 to 50,000 lx, so the MDF-HTN addresses the lower end of the brightness scale. Gain can be set manually in 5 levels, and upper and lower limits can be adjusted after teaching.
- Type: stand-alone amplifier, high sensitivity (MDF-HTN)
- Measurement range 10 to 1,500 lx, high-gain type (MDF-HTN)
- Power supply 12 to 24 VDC, 45 mA or less (MDF-HTN)
- 1 NPN open collector output, light on / dark on (MDF-HTN)
- IP50, 7-segment 8-digit display (MDF-HTN)
For pricing, please contact our experts.
