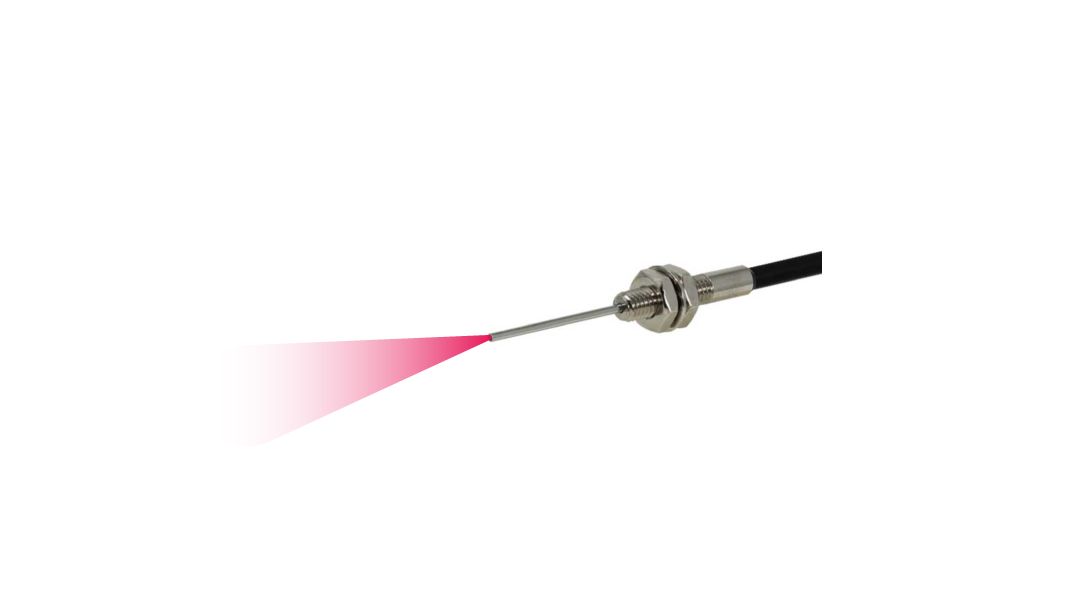

OPTEX FA NF-DB05 | Diffuse-Reflective Fibre Optic Cable | M3, Coaxial
OPTEX FA NF-DB05 is a diffuse-reflective fibre optic cable with an M3 head and a coaxial, fine sleeve design. In the NF Sleeve/Side view range, NF-DB05 benefits from a slim tip that makes mounting flexible and fine position adjustment easy. The family around NF-DB05 also offers bendable long sleeves and side-angle beams for detection where mounting space is limited.
- Diffuse-Reflective detection
- Head size: M3
- Coaxial construction
- Fine sleeve tip
- Specifications
| Part Number | NF-DB05 |
| Brand | OPTEX FA |
| Series | NF Series Sleeve/Side View Type |
| Detection Method | Diffuse-reflective |
| Head Size | M3 |
| Features | coaxial, fine sleeve |
| Key Characteristics | Thread Mount |
| Sensing Mode | Diffuse Coaxial |
| Key Attributes | Sleeve Non-Bendable |
| Lens Compatible | Not Compatible With Add-On Lens |
| Mounting Dimension | M3 x 10mm |
| Fiber Cable Feature | Non-bending Sleeve with Side-View Sensing |
| Fiber Cable Bend Radius | R25 |
| Cuttable | Non-Cuttable |
| Fiber Length | 1 meter |
| Fiber Core | Multicore |
| Temperature Rating | -40 to +60° C |
