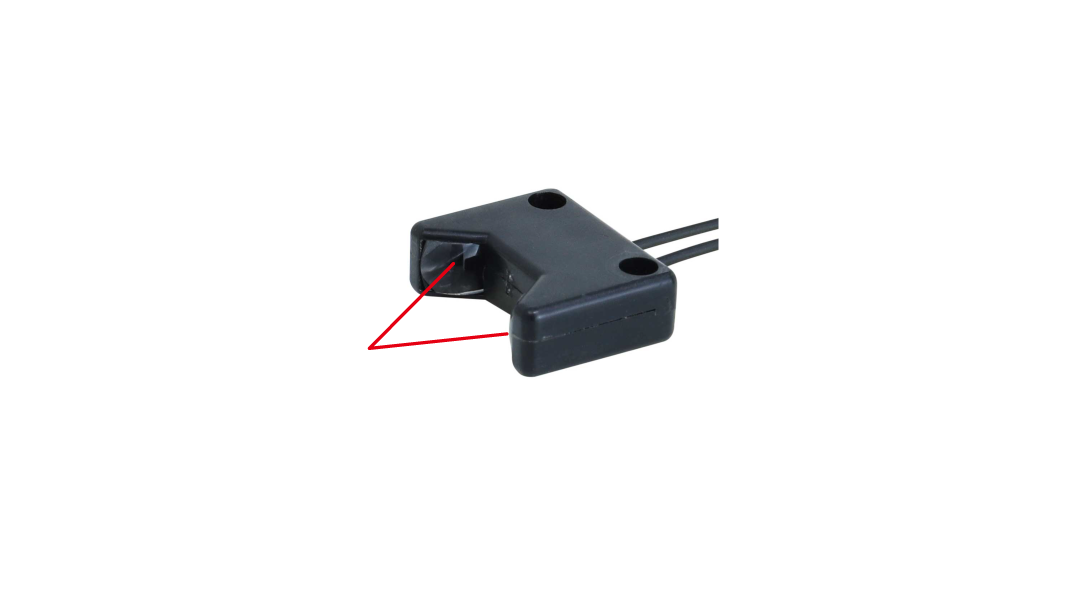

OPTEX FA NF-DC09 | Limited Diffuse-Reflective Fibre Optic Cable | Square, Free-Cut
Built by OPTEX FA, the NF-DC09 is a limited diffuse-reflective fibre optic cable with a square head and free-cut fibre. The limited diffuse-reflective NF family that includes NF-DC09 offers glass substrate types for wafer mapping alongside general-purpose types. Beyond NF-DC09, the lineup holds presence detection types, glass substrate types for wafer mapping, and three general-purpose models.
- Detection method: limited diffuse-reflective
- Head: square head
- Cable: free-cut fibre
- Series: NF Series Limited Diffuse-Reflective Type
- Specifications
| Part Number | NF-DC09 |
| Brand | OPTEX FA |
| Series | NF Series Limited diffuse-reflective type |
| Detection Method | Limited diffuse-reflective |
| Head | Square |
| Cable | Free-cut fibre |
| Key Characteristics | Limited Distance |
| Sensing Mode | Convergent |
| Key Attributes | Axial Sensing |
| Lens Compatible | Not Compatible With Add-On Lens |
| Mounting Body Style | Square/Rectangular |
| Mounting Dimension | 7 x 7.2 x 2 mm |
| Fiber Cable Feature | Sensing Distance is limited to a specific range and is not easily affected by the background. Works Well for Glass Substrate Detection |
| Fiber Cable Bend Radius | R10 |
| Cuttable | Cuttable |
| Fiber Length | 2 meter |
| Temperature Rating | -40 to +70° C |
| Included Accessories | Fiber Cutter and Tips |
