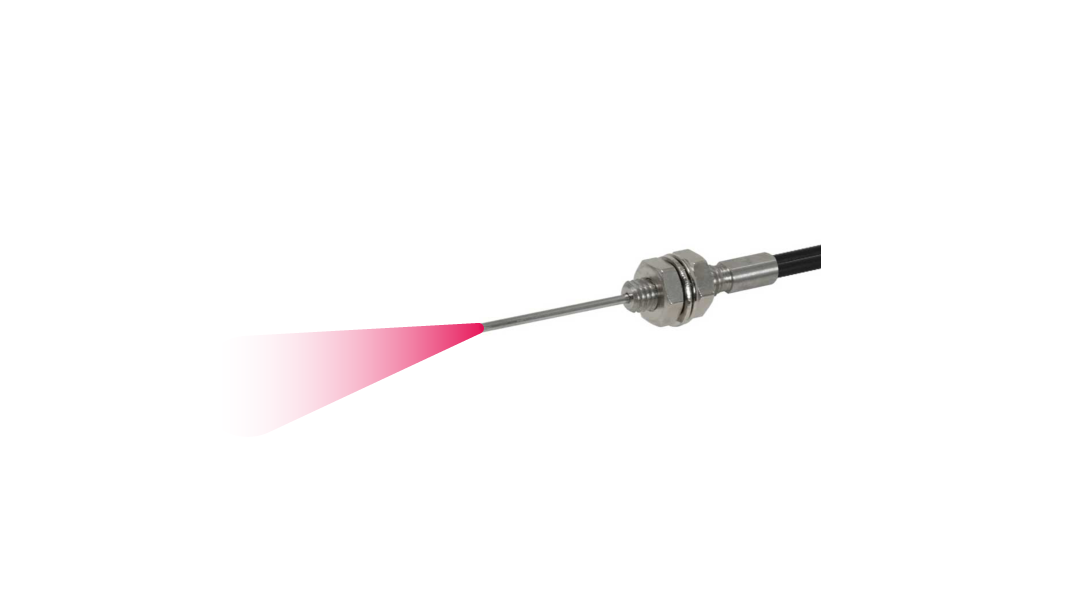

OPTEX FA NF-DT04 | Diffuse-Reflective Fibre Optic Cable | M3
OPTEX FA NF-DT04 is a diffuse-reflective fibre optic cable with an M3 head. OPTEX FA lists NF-DT04 in its NF Sleeve/Side view group, where narrow tips simplify mounting and aiming at the target. Because the tip stays slim, the target is not hidden as NF-DT04 approaches it, which helps when the sensing point is fine-tuned after installation. Across the range that includes NF-DT04, side-view heads angle the beam into narrow places such as connector pin checks, and some long straight sleeves can be bent.
- Diffuse-Reflective detection
- Head size: M3
- Specifications
| Part Number | NF-DT04 |
| Brand | OPTEX FA |
| Series | NF Series Sleeve/Side View Type |
| Detection Method | Diffuse-reflective |
| Head Size | M3 |
| Key Characteristics | Thread Mount |
| Sensing Mode | Diffuse Coaxial |
| Key Attributes | Sleeve Non-Bendable |
| Lens Compatible | Not Compatible With Add-On Lens |
| Mounting Dimension | M3 x 15mm |
| Fiber Cable Feature | Non-bending Sleeve Provides Access to Hard to Reach Areas |
| Fiber Cable Bend Radius | R4 High-flex |
| Cuttable | Non-Cuttable |
| Fiber Length | 500mm |
| Fiber Core | Coaxial |
| Temperature Rating | -40 to +70° C |
