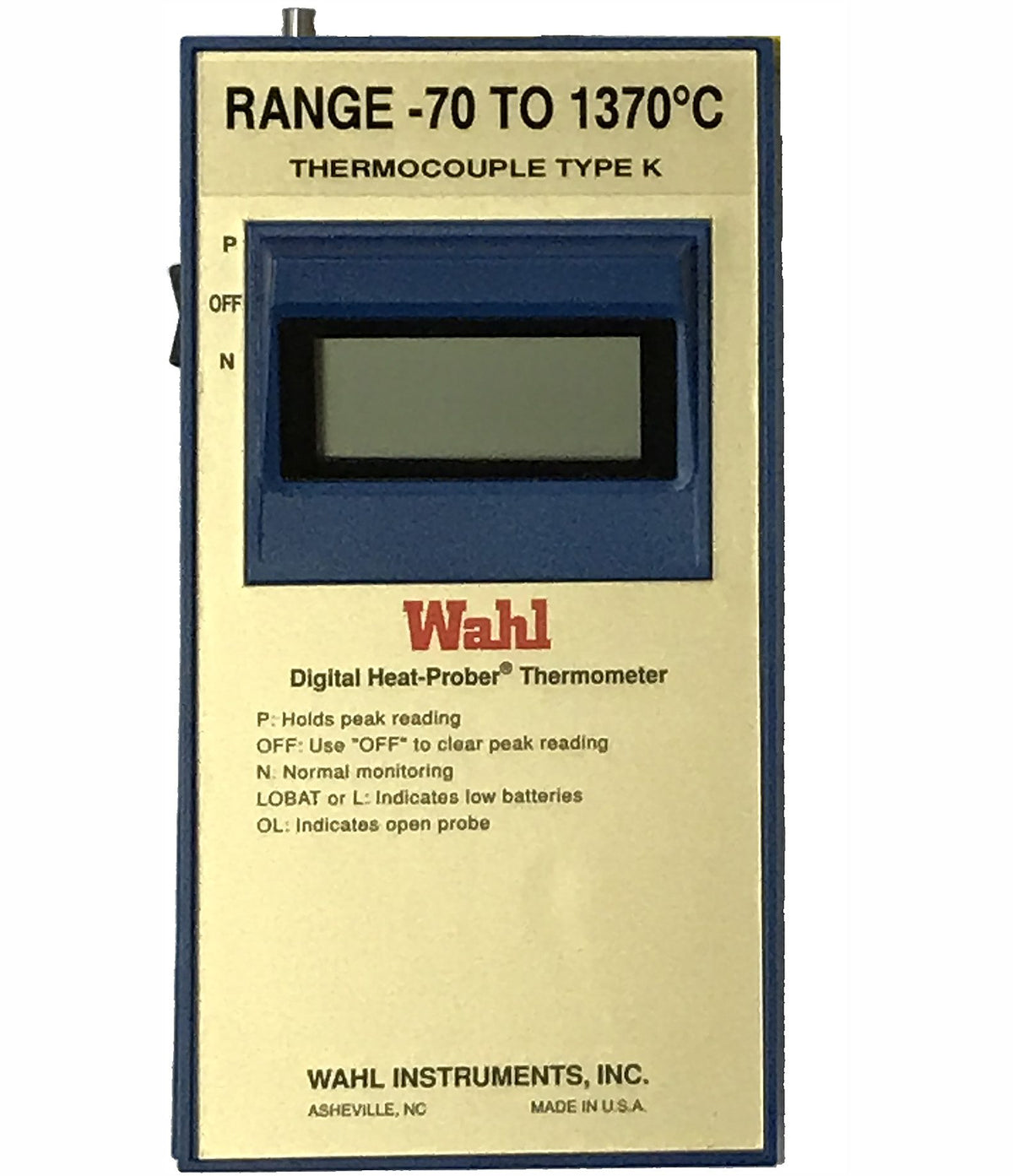

Palmer Wahl 1370M_Series | Heat-Prober Type K Thermocouple Meters, °C | -70 to 1370 °C
The Palmer Wahl 1370M Series (1370M_Series) are pocket-sized Heat-Prober® Type K thermocouple meters that read -70 to 1370 °C and display in °C only. A microprocessor updates readings three times per second with ±0.2% of reading ±1 digit accuracy and 1 °C resolution, and the cold junction is compensated by a permanently calibrated circuit. Models are the 1370M (LED, NiCad), 1370MX (LCD, NiCad) and 1370MVX (LCD, 9 V alkaline).
Key features
- Accepts all Type K probes with ANSI mini-connectors
- Maxi-Temp peak hold, switchable to normal operation
- Low battery indicator
- Approx. 8 h (1370M) or 50 h (1370MX/MVX) battery life
- NiCad models include a battery recharger
- Units calibrated with simulated EMF inputs and given a high temperature burn-in
NIST certification is available for this series.
- Specifications
- Downloads
| Part Number | 1370M_Series |
| Brand | Palmer Wahl |
| Models | 1370M, 1370MX, 1370MVX |
| Range | -70 to 1370 °C |
| Accuracy | ±0.2% of reading ±1 digit |
| Resolution | 1 °C |
| Update Rate | 3 readings per second |
| Display | 0.33 in red LED (1370M); 0.5 in red LCD (MX, MVX) |
| Power | 6.25 V NiCad (11681-1) or 9 V alkaline (MVX) |
| Battery Life | Approx. 8 h (1370M); approx. 50 h (MX, MVX) |
| Probe Connector | Type K ANSI mini-connector |
| Peak Hold | Yes (Maxi-Temp) |
| Dimensions | 3 x 6 x 1.5 in (7.5 x 15 x 3.75 cm) |
| Weight | 10.5 oz (298 g) |
| NIST Certification | Available |
