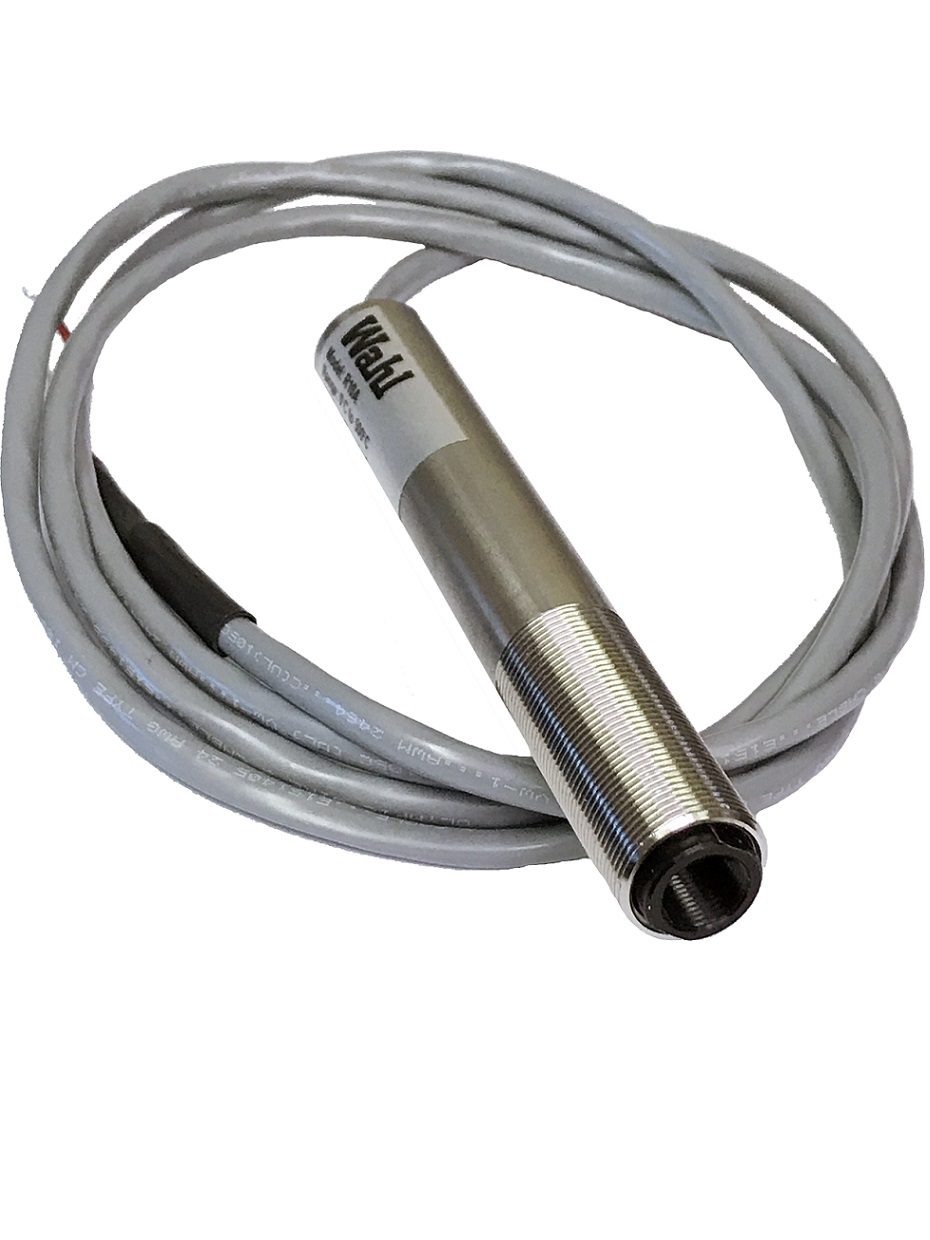

Palmer Wahl R10 | R10 Compact Fixed Infrared Sensor | 0 to 500 °C, 4–20 mA
Part Number : R10
The R10 Series is the entry level model in the Heat Spy Monitor "R" range of fixed infrared sensors. It measures 0 to 500 °C with a 20:1 distance to spot ratio and sends a 4–20 mA signal from a 24 V DC supply, so it connects directly to PLCs, controllers or panel meters. The M18 x 1 stainless body fits an 18 mm or 3/4 in hole using the two supplied locking nuts.
Key features
- IP65 (NEMA 4) 304 stainless steel housing
- Works in ambient temperatures to 70 °C without extra cooling
- Emissivity fixed at 0.95 for a wide range of materials
- 500 ms response time
- Shock and vibration to MIL-STD-810D
- Cable length chosen in metres to suit the installation

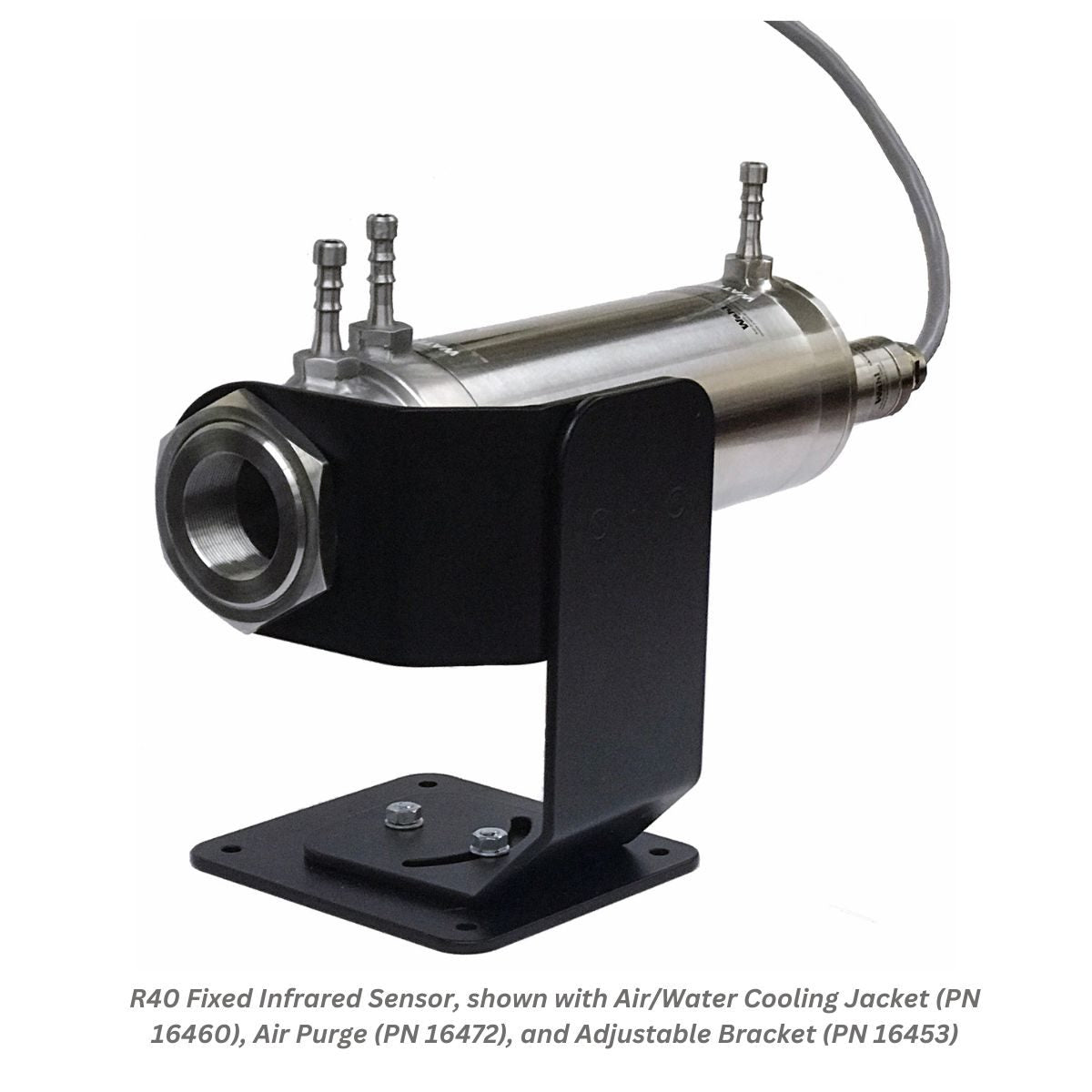

Brackets, air purge and air or water cooling jackets are listed as separate accessories.
For pricing, please contact our experts.
