Palmer Wahl RTC822 | Fast Response Z-Tip Surface Probe | 1 in, to 1000 °F

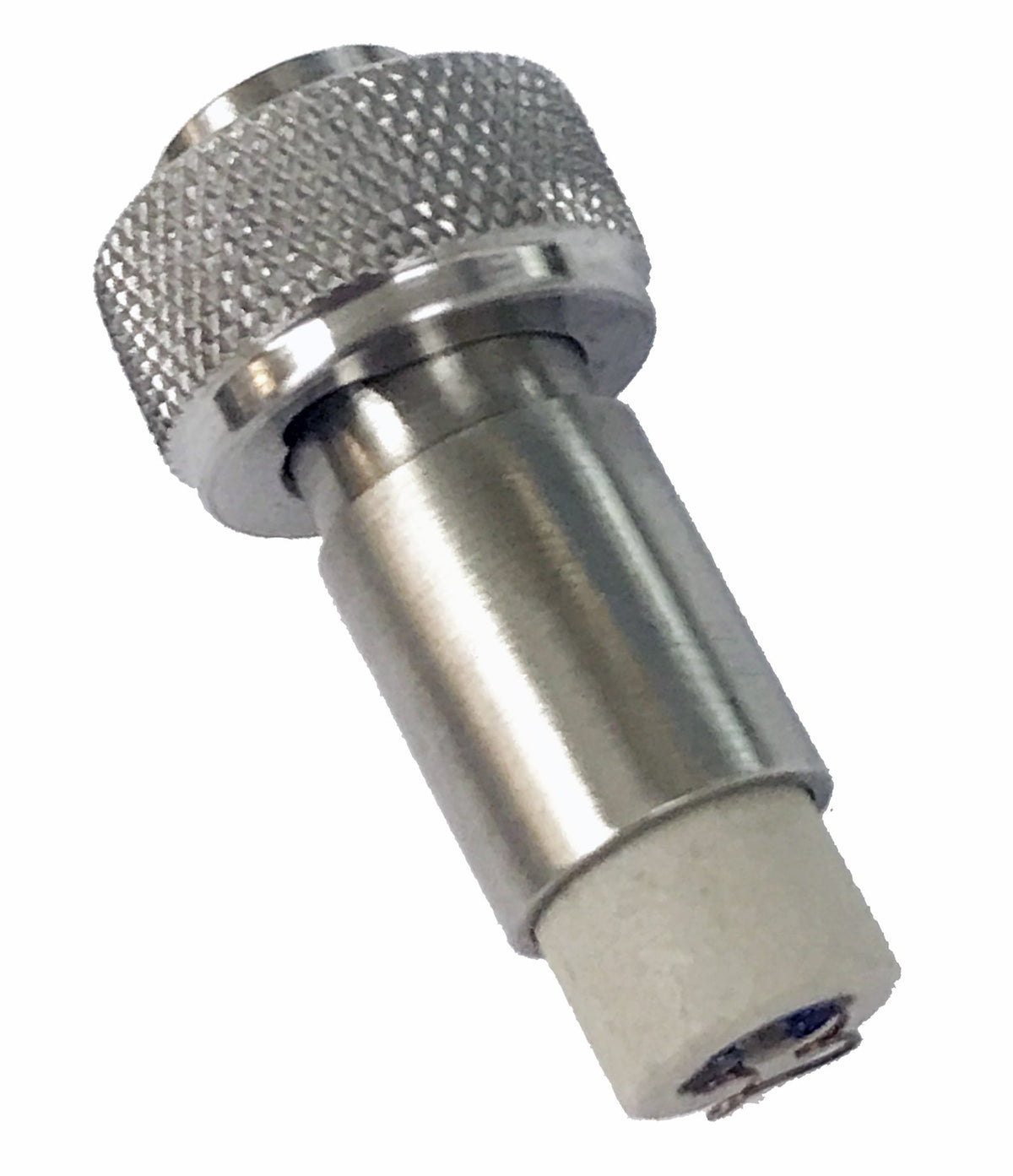

The Palmer Wahl RTC822 is a compact Z-Tip Type K surface probe with a 1 in long, 0.5 in diameter tip. It gives a fast 3 second response on a clean hot plate, quicker than the heavy duty RTC822L, and is rated to 1000 °F (537 °C). Typical targets are clean surfaces such as moulds, platens, dies, bearings and glass. It attaches to the TC829 series extension handle.
Key features
- Type K Z-Tip surface sensor
- 1 in tip length, 0.5 in diameter
- 3 second response on a clean hot plate
- Rated to 1000 °F (537 °C)
- Uses TC829 series handle
- Specifications
| Part Number | RTC822 |
| Brand | Palmer Wahl |
| Sensor Type | Type K thermocouple |
| Style | Surface, Z-Tip |
| Tip Length | 1 in |
| Tip Diameter | 0.5 in |
| Temperature Rating | To 1000 °F (537 °C) |
| Response Time | 3 s (clean hot plate) |
| Handle | Uses TC829 Series handle |
