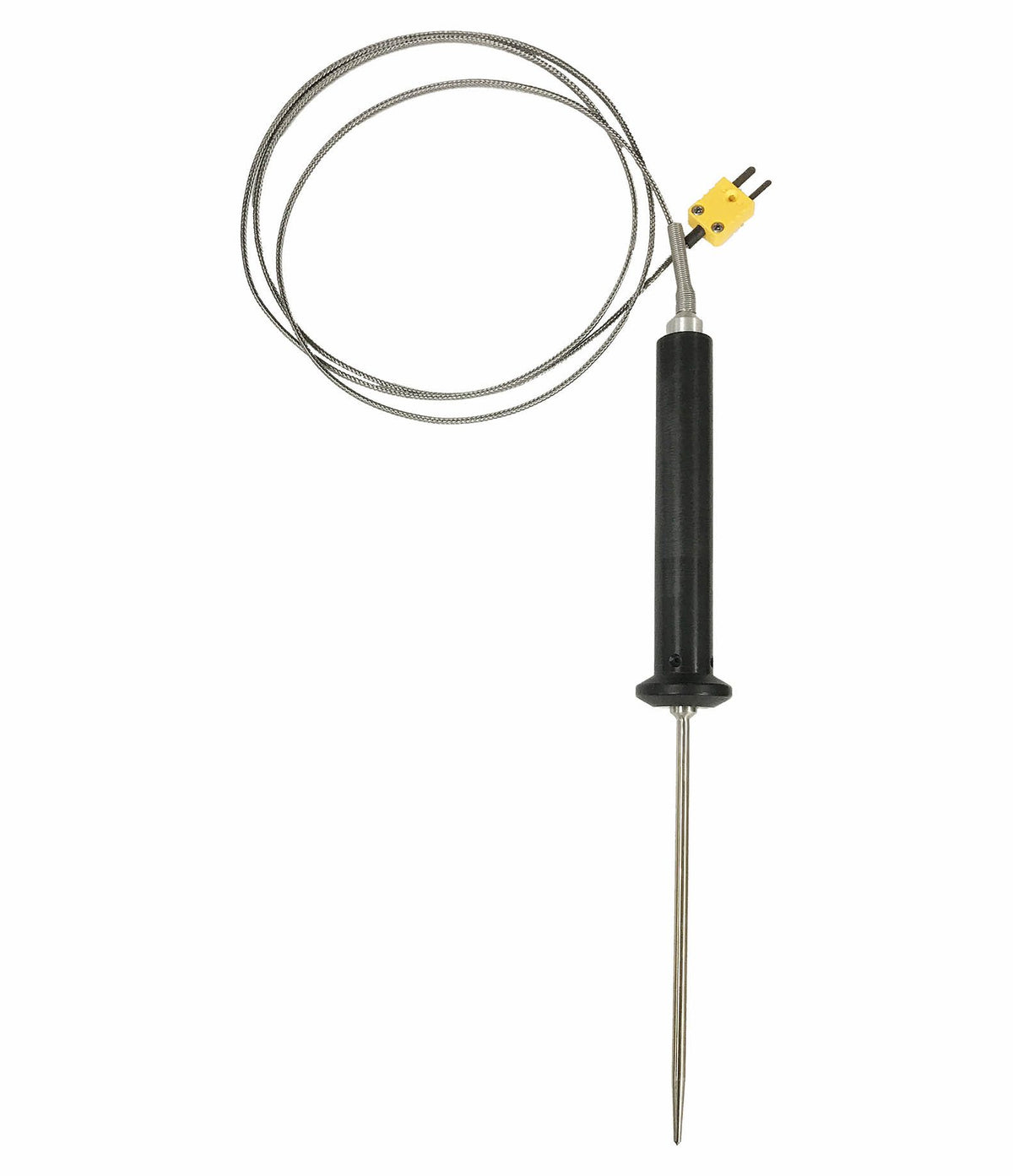

Palmer Wahl TC817 | Type K Heavy Duty Piercing Probe | 4.5 in, Depth Limiter
The Palmer Wahl TC817 is a heavy duty Type K piercing probe with a 4.5 in stainless steel shank and an adjustable penetration depth limiter. The 0.1875 in shank tapers to a 0.1 in tip for semi-solids such as plastic melts, rubber, asphalt and frozen foods. It responds in 0.5 seconds in boiling water and is rated to 1000 °F.
Key features
- Adjustable penetration depth limiter
- 4.5 in stainless shank, 0.1875 in tapering to 0.1 in
- 0.5 second response in boiling water
- Temperature limit 1000 °F
- Handle with Type K ANSI mini-connector plug
- Specifications
| Part Number | TC817 |
| Brand | Palmer Wahl |
| Sensor Type | Type K thermocouple |
| Style | Heavy duty piercing |
| Shank Length | 4.5 in |
| Shank Diameter | 0.1875 in, tip tapers to 0.1 in |
| Shank Material | Stainless steel |
| Depth Limiter | Adjustable |
| Temperature Limit | 1000 °F |
| Response Time | 0.5 s (boiling water) |
| Handle | Yes |
| Connector | Type K ANSI mini-connector plug |
