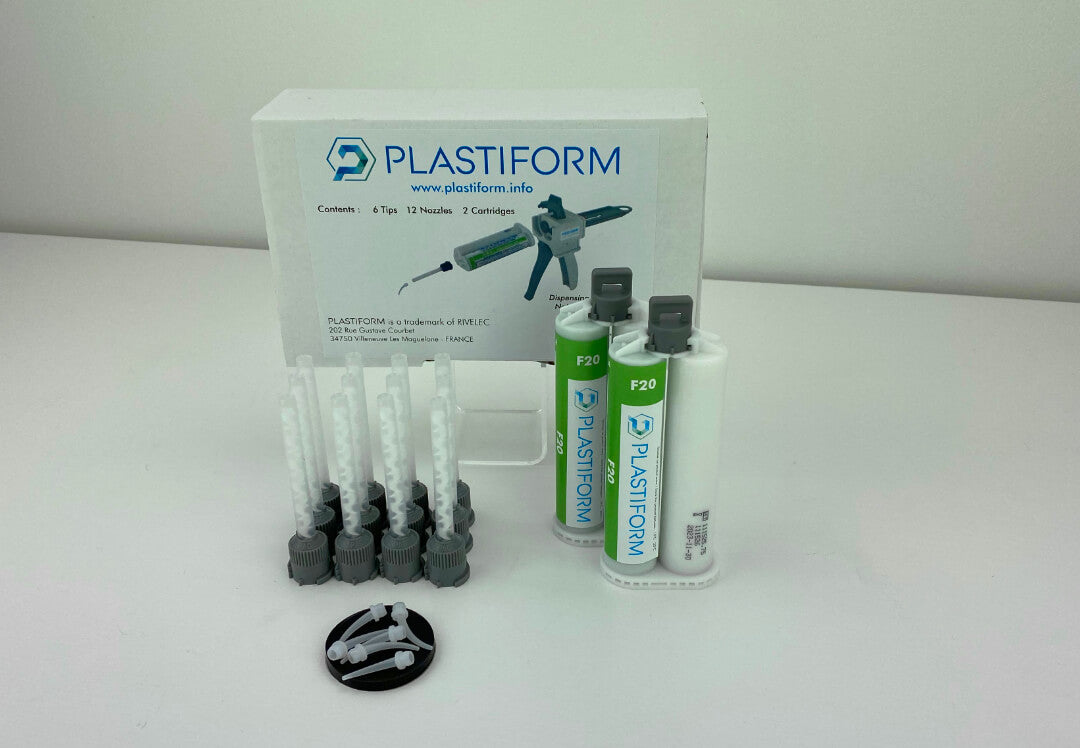

Plastiform CA-F20-2 | F20 Flexible Fluid Replication Compound | 2 x 50 ml Cartridges, 20 Shore A
Plastiform CA-F20-2 contains two 50 ml cartridges of F20, together with 12 standard nozzles and 6 tips for those nozzles. F20 is a fluid compound for total impressions of very complex forms, and is especially recommended for intricate internal features such as threads and grooves. It can also be used as a substitute for gaskets.
Key features
- Flows into details from 0.1 mm diameter up to medium-sized components
- Cures to a strong, flexible 20 Shore A replica that bends during demoulding
- Shape memory preserves accuracy after extraction
- Micron-level detail reproduction, leaving no residue on the part
- Specifications
- Features
- Downloads
| Part Number | CA-F20-2 |
| Brand | Plastiform |
| Compound | F20 |
| Type | Fluid |
| Final State | Flexible |
| Hardness | 20 Shore A |
| Min. Detail Diameter | 0.1 mm |
| Cartridges | 2 x 50 ml |
| Standard Nozzles | 12 |
| Nozzle Tips | 6 |
The following uses are appropriate for the F20:
- Control of Dimensions in Complex Internal Forms.
Sealing, masking, and protection from surface treatments.
- It is also useful for:
Dimensional Regulation of Basic Internal Structures.
