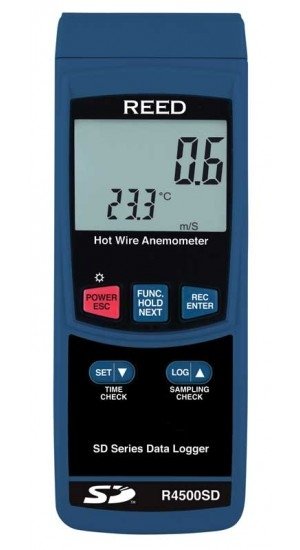

REED R4500SD | Data Logging Hot Wire Thermo-Anemometer | SD Card, Type J/K Input
For precise low air velocity readings, the REED R4500SD uses a hot wire probe and measures in fpm, m/s, kph, mph and knots alongside temperature. It also has a Type J/K contact thermometer, a thermistor sensor and SD card logging that creates Excel files without software.
- Hot wire probe for low air velocity
- Type J/K thermocouple contact input
- Automatic temperature compensation
- Logs to SD card (max 16 GB) at 1 to 3600 s intervals
- Data hold and Max/Min on a backlit LCD
- Tripod and AC adaptor available as options
- Specifications
- Features
- Downloads
| Part Number | R4500SD |
| Brand | REED |
| Display | 5-digit, Dual LCD Display |
| Operating Temperature | 32 to 122 °F (0 to 50 °C) |
| Weight | 1.13lb (515g) |
| Power Supply | 6 x AA Batteries or AC Adapter (optional) |
| Auto shut-off | Yes (after 10 minutes/off) |
| Dimensions | 8 x 3 x 1.5" (203 x 76 x 38 mm) |
| Product Certifications | CE |
| Sampling Rate | 1 to 3600 seconds |
| Probe | Hot wire |
| Units | fpm, m/s, kph, mph, knots |
| Thermocouple Input | Type J/K |
| Data Logging | SD card (max 16 GB); up to 99 manual readings |
Air velocity (fpm, m/s, kph, mph, and knots) and temperature are measured.
Type J/K thermocouple choice for contact temperature measuring
For quick air temperature readings, use a thermistor sensor.
For precise low air velocity measurements, use a hot wire probe.
User adjustable sampling rate from 1 to 3600 seconds Real-time data logger with inbuilt SD memory card
LCD display with backlight that is easy to read
Holding data and using the Min/Max functions
Long-term monitoring with a tripod mount
Auto-shutoff and low-battery indicator
