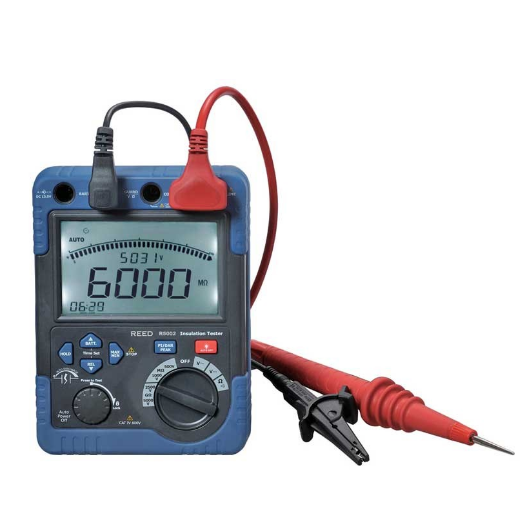

REED R5002 | High Voltage Insulation Tester | Up to 5000V, 60 GΩ

Name: REED R5002 | High Voltage Insulation Tester | Up to 5000V, 60 GΩ
Brand: REED Instruments
SKU: R5002
Availability: InStock

Part Number : R5002

The REED R5002 tests insulation at voltages up to 5000V and reads insulation resistance up to 60 GΩ. It applies a regulated, stabilised voltage, measures the current that flows and calculates resistance to judge insulation integrity.

6000-count backlit LCD with bargraph
Max/Min recording
2.5 readings per second
Runs on 8 C batteries or the included AC adapter
Auto shut-off after 20 minutes; CE marked
Low battery indicator; storage range -4 to 140°F (-20 to 60°C)

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Part Number	R5002
Brand	REED
Backlit Display	Yes
Display	6000 count LCD display with bargraph
Low Battery Indicator	Yes
Operating Temperature	32 to 104°F (0 to 40°C)
Power Supply	8 C Batteries or AC Adapter (included)
Test Voltage	Up to 5000V
Insulation Resistance	Up to 60 GΩ
Auto shut-off	Yes (after 20 minutes)
Max/Min	Yes
Sampling Rate	2.5 times/sec.
Dimensions	7.8 x 5.8 x 3.4
Product Certifications	CE

Test Voltages of 500V, 1000V, 2500V, and 5000V
Measure Insulation Resistance to 60GΩ
Backlit LCD display with analog bargraph
Timer function for insulation resistance measurements (1 to 15min)
AC/DC Voltage from 0 to 600V with Max/Min, peak and relative functions
Polarization index measurement (PI)
Dielectric absorption ratio measurements (DAR)
Max/Min, Peak, Relative value and Data Hold functions
Cat. IV 600V safety rating
Low battery indicator and auto shut off
