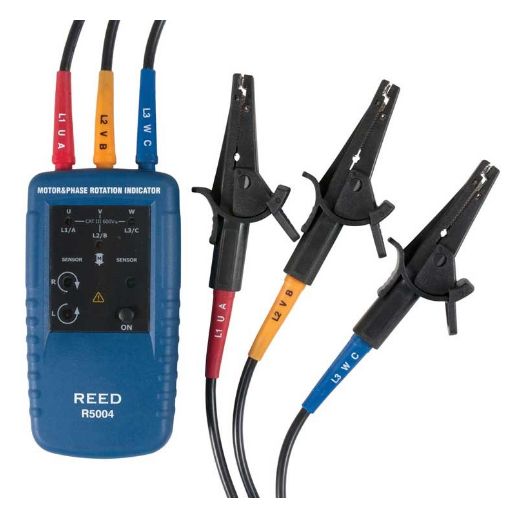

REED R5004 | Motor Rotation / 3-Phase Tester | 2 to 400 Hz

Name: REED R5004 | Motor Rotation / 3-Phase Tester | 2 to 400 Hz
Brand: REED Instruments
SKU: R5004
Availability: InStock

Part Number : R5004

The REED R5004 identifies phase orientation (clockwise or counter-clockwise) for motors and 3-phase systems, and shows which of the three phases is live. It works from 2 to 400 Hz and has rugged double moulded housing.

Clockwise / counter-clockwise phase orientation
Live indication for each of the 3 phases
Frequency range 2 to 400 Hz
Double moulded plastic housing
9V battery, approx. 1 year of regular use

Availability: low stock

Specifications
Features
Downloads

Part Number	R5004
Brand	REED
Function	Phase rotation, live phase indication
Battery Life	Approx. 1 year (regular usage)
Frequency (Hz)	2 to 400Hz
Operating Humidity Range	10 to 80%
Operating Temperature	0 to 122°F (0 to 50°C)
Power Supply	9V Battery
Product Certifications	CE
Storage Temperature	-4 to 140°F (-20 to 60°C)
Weight	4.5oz (130g)

Tests phase orientation of 3-phase power sources
Indicates phase orientation (clockwise or counter-clockwise) and whether each of the three phases is live
LEDs display motor rotation and phase status
Easy to open alligator clips with wide jaws
Durable double molded plastic housing
Cat. III 600V safety rating
