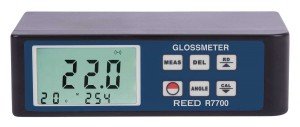

REED R7700 | Gloss Meter | 20°/60°/85°, 0.1–200 GU
The REED R7700 gloss meter reads up to 200 gloss units at three angles (20°, 60° and 85°) and is built to meet ASTM D523, D1455, C584 and D2457. Uses include automotive paint inspection, stone and tile manufacturing, and paint and ink quality assurance.
- 20°, 60° and 85° geometries
- Range 0.1 to 200 GU, resolution 0.1 GU
- Accuracy ±1.0 GU, repeatability ±0.5 GU
- Memory for 254 measurements
- Backlit LCD, 305 g
- Specifications
- Features
- Downloads
| Part Number | R7700 |
| Brand | REED |
| Standards | ASTM D523, D1455, C584, D2457 |
| Memory | 254 measurements |
| Accuracy | +/-1.0 GU |
| Dimensions | 5.5 x 1.8 x 3" (140 x 45 x 75 mm) |
| Display | LCD |
| Measuring of Geometric Elements | : 20° / 60° / 85° |
| Measuring range | 0.1 to 200 GU |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Product Certifications | CE / RoHS |
| Repeatability | +/-0.5 GU |
| Resolution | 0.1 GU |
| Weight | 10.76oz (305g) |
Compact design allows for one-handed operation
Multi-angle measurement (20/ 60/ 85°)
Backlit LCD display
Auto calibration
Internal memory stores last 254 data points
Built-in rechargeable battery
Designed to meet ASTMD523, ASTMD1455, ASTMC584 and ASTMD2457 international standards
