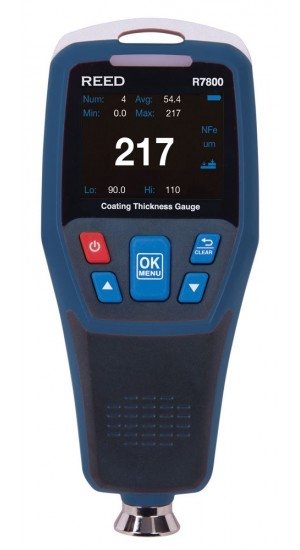

REED R7800 | Coating Thickness Gauge | 0–1250 µm, USB
The REED R7800 measures coating thickness non-invasively over 0 to 1250 µm (0.1 to 49.2 mils). It supports zero or two-point calibration, has user-adjustable high/low alarms and a USB port for analysing results in the supplied software.
- Range 0 to 1250 µm
- Zero or two-point calibration
- Adjustable high/low alarms
- USB port with accompanying software
- 4-digit colour LCD, 2 x AA, 180 g
- Specifications
- Features
- Downloads
| Part Number | R7800 |
| Brand | REED |
| Accuracy | 0 to 1250µm: +/-3% +1µm 0 to 49.21mils: +/-3% +0.04mils |
| Measuring Range | 0 to 1250µm 0.1 to 49.2mils |
| Calibration | Zero or two-point |
| Dimensions | 5.9 x 2.6 x 1.38" (152 x 65 x 35 mm) |
| Weight | 6.35oz (180g) |
| Interface | USB, software included |
| Alarms | High/low, user adjustable |
| Display | 4-digit color LCD display |
| Operating Humidity Range | ≤80%RH |
| Operating Temperature | 32 to 104 °F (0 to 40 °C) |
| Power Supply | 2 x AA Batteries |
| Storage Temperature | -4 to 140 °F (-20 to 60 °C) |
- Automatically detects ferrous and non-ferrous substrates
- Easy-to-read color LCD display
- 360° screen rotation allows users to view measured readings from any angle
- Durable gauge and probe construction
- Zero and two-point calibration ensures measurement accuracy
- Single or multi-point mode allows a user to set tolerances and quickly identify whether a coating passes or fails
- Tri-color LEDs quickly indicate when measurements are below (red), above (yellow) or within set parameters (green)
- Internal memory stores up to 500 groups of data
- View stored data, charts or real-time measurement with software
- Low battery indication and auto shut off
