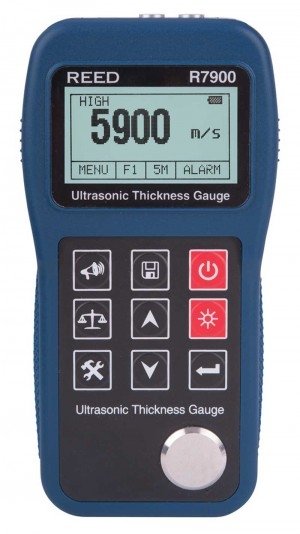

REED R7900 Ultrasonic Thickness Gauge
With a backlit LCD display, this ultrasonic thickness gauge can measure the thickness of a wide range of ultrasonic conductive materials. The R7900 has high/low alarms that may be adjusted by the user, as well as internal memory that can save up to 500 measurements.

Free UAE shipping available
- Specifications
- Features
- Downloads
Dimensions | 5.9 x 2.9 x 1.3" (150 x 74 x 32mm) |
Display | 4-Digit, LCD |
Measuring range | 0.03 to 15.7" (0.65 to 400mm) |
Operating Humidity Range | 20 to 80% |
OPERATING RANGE | 32 to 122°F (0 to 50°C) |
Resolution | 0.01mm or 0.1mm (< 100mm) 0.1mm (>100mm) |
Storage Temperature | -4 to 140°F (-20 to 60°C) |
Weight | 8.4oz (238g) |
Measures a wide range of material including; metals, plastic, ceramics, composites, epoxies, glass, and other ultrasonic conductive materials
Easy-to-read backlit LCD display
User selectable unit of measure (in/mm)
Internal memory stores up to 500 measurements
Displays sound velocity at the touch of a button
Zero adjustment button
User adjustable High/Low alarms
Built-in two-point calibration function
Auto sleep, shut off and low battery indicator
