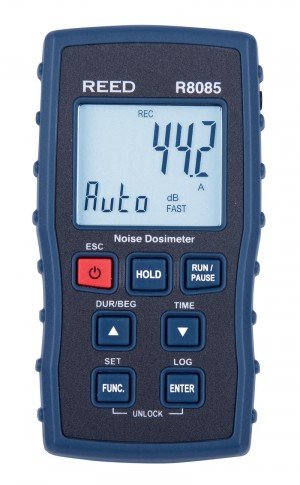

REED R8085 | Noise Dosimeter | 8-Hour Dose, OSHA/CCOHS
The REED R8085 is a small, lightweight noise dosimeter that records sound level (dB) and sound exposure (dose %) over an 8-hour period to assess an individual's exposure. It is designed to meet OSHA and CCOHS noise survey criteria.
- 0.1 dB resolution
- 4-digit LCD
- Response approx. 1 second
- 3 AAA batteries
- 107 x 58 x 25 mm, 122 g
- Operating range 32 to 122°F (0 to 50°C); storage 14 to 140°F (-10 to 60°C)
- Specifications
- Features
- Downloads
| Part Number | R8085 |
| Brand | REED |
| Display | 4-digit LCD |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Power Supply | 3 x AAA batteries |
| Resolution | 0.1dB |
| Measurements | Sound level (dB), dose % |
| Criteria | OSHA, CCOHS |
| Response Time | Approx. 1 sec |
| Dimensions | 4.2 x 2.3 x 1.0" (107 x 58 x 25mm) |
| Storage Temperature | 14 to 140°F (-10 to 60°C) |
| Weight | 4.3oz (122g) |
Noise dosimeter, sound level meter and data logger
High accuracy of ±1.0dB meets Type 2 standards
Designed to meet noise survey requirements for compliance with OSHA and CCOHS regulations
Personal sound exposure meets IEC 61252, ANSI S1.25
A and C frequency weighting
Fast and Slow time weighting
Lightweight and compact design
Adjustable Criterion Level, Exchange Rate and Threshold
USB interface with Windows® Compatible software to retrieve stored data (sold separately)
Easy-to-read backlit LCD display
Data hold and Min/Max hold
Tripod mount for long-term monitoring
Low battery indicator and auto shut off
