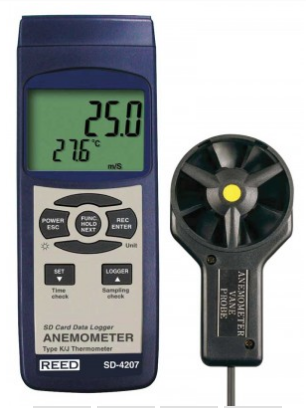

REED SD-4207 | Data Logging Vane Thermo-Anemometer | SD Card, 1–3600 s Sampling
The REED SD-4207 is an SD series vane thermo-anemometer that logs air velocity and air temperature, and includes a built-in contact thermometer. Sampling rates from 1 to 3600 seconds are user selectable, with data saved as an Excel file on an SD card of up to 16 GB.
- Air velocity and air temperature
- Built-in contact thermometer
- Selectable sampling from 1 to 3600 s
- Excel files on SD card without software
- Optional tripod, AC adapter and PC software for live tracking
- Specifications
- Features
- Downloads
| Part Number | SD-4207 |
| Brand | REED |
| Probe | Vane |
| Measures | Air velocity, air temperature, contact temperature |
| Data Logging | SD card (max 16 GB) |
| Auto shut-off | Yes (after 10 mins/off) |
| Dimensions | 8 x 3 x 1.5" (203 x 76 x 38mm) |
| Display | 5-digit, Dual LCD Display |
| Operating Humidity Range | 10-80% |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Power Supply | 6 x AA batteries or AC Adapter (optional) |
| Product Certifications | CE |
| Sampling Rate | Yes (1, 2, 5, 10, 30, 60, 120, 300, 600, 1800, 3600s) |
| Weight | 1.13lb (515g) |
- Measures air velocity (fpm, m/s, kph, mph and knots) and air temperature
- Contact temperature measurement with type J/K thermocouple option
- Thermistor sensor for fast air temperature readings
- Low friction ball-bearing, rotating vane probe ensures high accuracy readings
- Real-time data logger with integral SD memory card
- User selectable sampling rate from 1 to 3600 seconds
- Easy-to-read backlit LCD display
- Data hold and Min/Max functions
- Optional PC software features live tracking via USB connection
- Tripod mount on probe and instrument for long-term monitoring
- Low battery indicator and auto shut off
