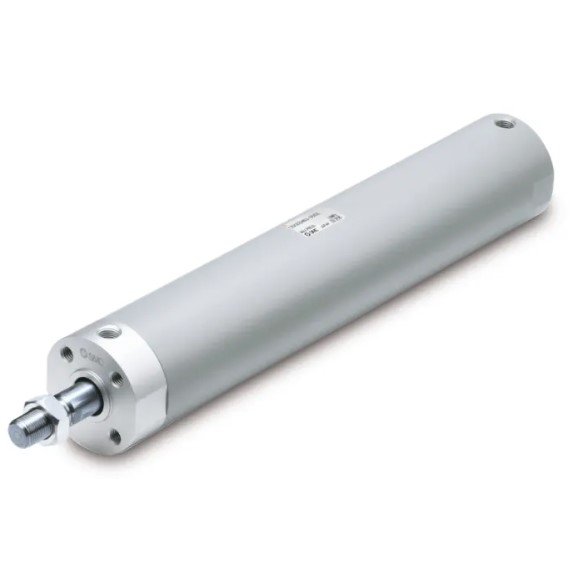

SMC CDG1BA63-200Z | Piston Rod Cylinder | Series CG1-Z | Bore 63mm
With eight bore sizes, the Series CG1 precision air cylinder can accommodate every application requirement. Impact-extruded aluminum gives the tube a remarkably smooth surface, low break-away pressure, and a smooth stroke action. There are eight mounting possibilities. capable of auto-switching.

Free UAE shipping available
- Specifications
- Features
- Downloads
Ambiant temperature | "10°C to 70°C |
Bore | 63mm |
Cushioning | Rubber bumper, Air cushion |
Fluid | Air |
Functions | Double Acting |
Operating pressure | 0.05 to 1.0 MPa |
Piston | Speed: 50 to 1000 mm/s |
Port Type | Rc |
Series | CG1-Z |
Stroke | 200mm |
Type | Piston Rod Cylinder |
Weight | 2.26 Kg |
- CG1, single-rod, double-acting cylinder with custom-made choices
- Sizes of bores: 20, 25, 32, 40, 50, 63
- The majority of options can be switched automatically.
- Depending on the bore size, strokes ranging from 25 mm to 1500 mm are available.
- Seven options for mounting
