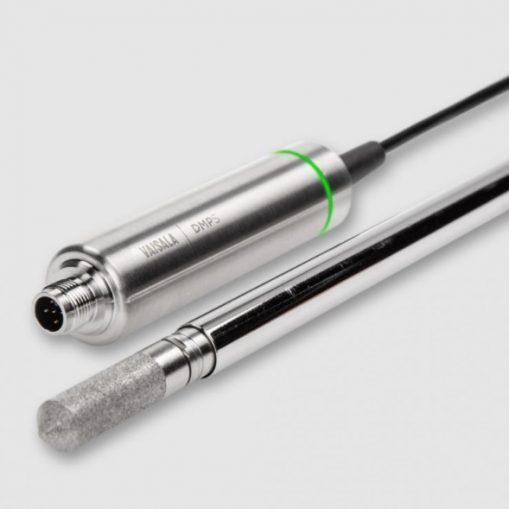

Vaisala DMP5 Dew Point Probe | DRYCAP Dew Point & Temperature Probe | Td -40 to +100 °C, Up to +180 °C
The Vaisala DMP5 is a DRYCAP dew point and temperature probe for in-line humidity measurement in high-temperature industrial drying, rated up to +180 °C with a dew point range of -40 to +100 °C. Its long steel probe and optional mounting flange give adjustable insertion depth through insulation, for example in ovens.
- Accuracy ±2 °C (±3.6 °F) Td/f
- Withstands condensation; resistant to most chemicals, oil vapour and particulates
- Sensor warming reduces moisture build-up, and the sensor recovers quickly if wet
- Automatic calibration adjustment for low-humidity accuracy
- Compatible with Indigo500 and Indigo200 series transmitters
- Specifications
- Features
- Downloads
| Part Number | DMP5 Dew Point Probe |
| Brand | Vaisala |
| Accuracy | ±2 °C (±3.6 °F) Td/f |
| Dew Point | -40 to +100 °C Td/f |
| Temperature Range | up to +180 °C |
Vaisala DMP5 Dew Point Probes
- Sensor purge provides superior chemical resistance
- Condensation-tolerant
- Modbus RTU over RS-485
- Compatible with Indigo transmitters and Insight PC software
- Traceable calibration certificate
- Use with Indigo transmitters for best functionality, including display and analogue output
- Measures humidity at temperatures up to +180 °C
- Dew point measurement range −40 … +100 °C Td/f
- Dew point measurement accuracy up to ±2 °C (±3.6 °F) Td/f
